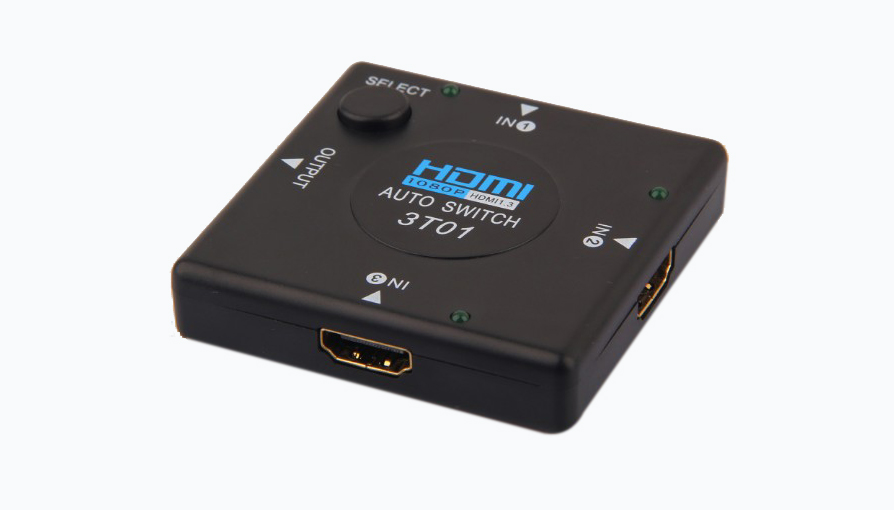

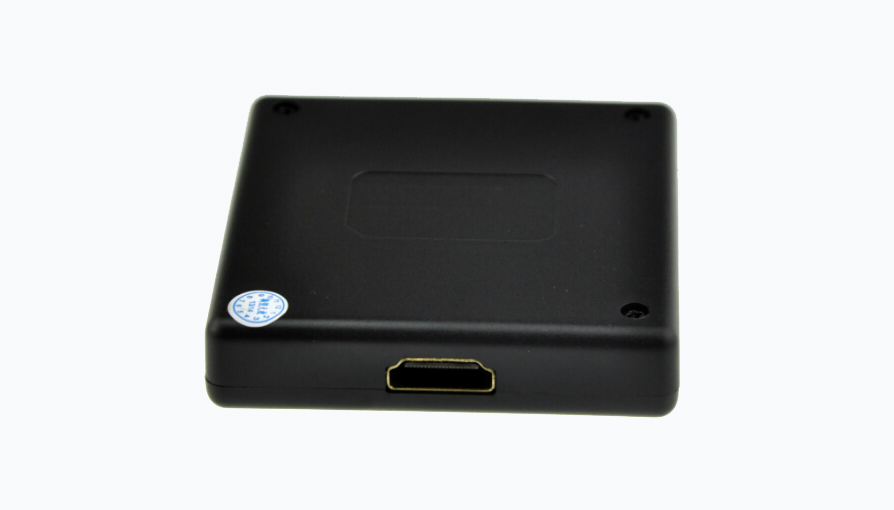

Current Position: Home >Products>HDMI Switch> 3x1 HDMI Switcher

Model:SWTH-03015 Input:3*HDMI
Output:1*HDMI



Main Features:
Special 4 side port design HDMI 1.3 compliant,1080P,3D



Data Download Pint This Page

Details

This 3x1 HDMI 1.3 switcher allow user to manually switch between three HDMI sources to one HDMI input device.


FEATURES
This HDMI Amplifier Auto Switcher has many features that enable it to perform in a superior manner. Among those features you will find:
1、Support 12-bit Deep Color, full 1080p
2、Support 3D  display device.
3、Multifunctional on switching : automatic or mechanical
4、Supports with HDMI1.3b.
5、High performance up to 2.5Gbps
6、Supports 25Meters HDMI Cable on both ends of the Switcher
7、Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, 1440p graphics and computer resolutions up to 1920 x 1200 are easily achieved


SPECIFICATIONS

Signal Inputs/Output



Input Video Signal

0.5-1.0 volts p-p

Input DDC Signal

5 volts p-p (TTL)

Maximum Single Link Range

1920X1200, 1080P

Output Video

HDMI1.3b+HDCP1.0/1.1 DVI1.0

Video format supported



VGA

640x480,800x600,1024x768,1920x1200

DTV/HDTV

480i/576i/480p/576p/720p/1080i/1080P

Digital Signal I/O



HDMI Compliance

HDMI 1.3b

Operating Frequency



Frequency

Up to225MHz

Vertical Frequency Range

60Hz

Video Amplifier Bandwidth

2.5Gpbs/225MHz

Resolutions(HDTV)

 HDMI SWITCH

Interlaced(50&60Hz)

480i,576i,1080i

Progressive(50&60Hz)

480p,576p,720p,1080p

Mechanical



Size(H-W-D)

 60X60X15

Weight(Net)

 28G

Warranty



Limited Warranty

1 Year Parts and Labor

Environmental



Operating Temperature

0℃to +70℃

Operating Humidity

10% to 85 % RH (no condensation)

Storage Temperature

-10℃to +80℃

Storage Humidity

5% to 90 % RH (no condensation)

Power Requirement

No power needed

Accessories Adapter



User Manual

English Version
