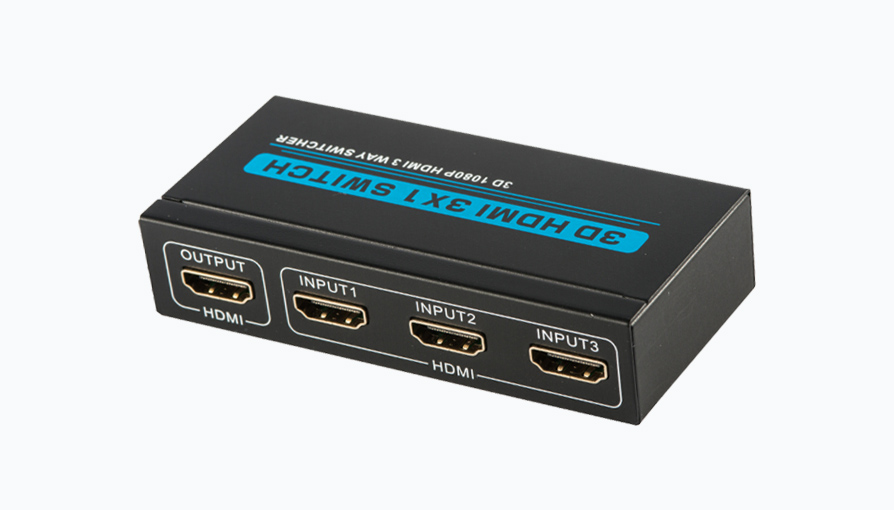

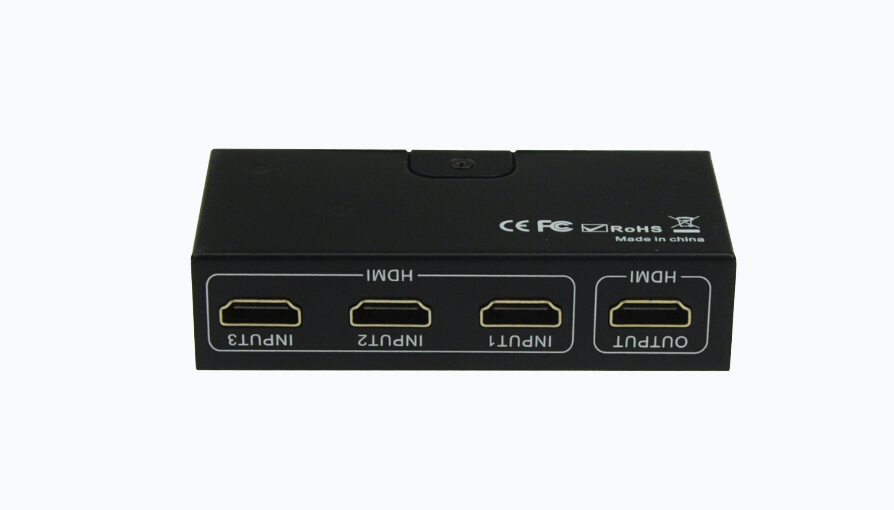

Pint This PageSWTH-03011 allows the user to manually switch between three HDMI sources to one device.
FEATURES
1、 Switching is done via itself automatically when signal present on the ports.
2、 Support HDCP protocol and applicable to source device and high definition display device such as DVD and HDTV which have
HDMI ports or digital ports, and are compliant with HDCP protocol.
3、 Support high resolutions up to 1920*1200,including 480i/p,576p,720i/p,1080i/p.
4、 Support HDMI1.3
5、 Extend the transmission distance and improve transmission signal.
6、 Compatible with DVI by using HDMI TO DVI adapter.
7、 Plug-and-play.
8、 Convenient to connect multi-group input signals to display on one HDTV.
9、 Save space. Allow several sources to use one high definition display device simultaneously.
10、 Metal casing design and overall shielding without signal interference.
11、 Select input port by hand freely.
12、 LED indicates signal and power mode.
13、 Power supply(Please refer to technical parameter)
TECHNICAL PARAMETER IN DETAIL
|
Product |
3X1 HDMI SWITCH |
|
HDMI Source Input Port |
3 |
|
Display Device Output Port |
1 |
|
Source Port Connector |
19 PIN HDMI(A TYPE) |
|
Display Device Port Connector |
19 PIN HDMI(A TYPE) |
|
HDCP Compliant |
YES |
|
Source Device Selection |
Push Button IR Remote Control |
|
Input Video Signal |
0.5-1.0 Volts P-P |
|
Input DDC signal |
5 Volts P-P(TTL) |
|
Deep Color |
36bit |
|
Single Link Range |
1920*1200 |
|
HDMI Version |
HDMI1.3 |
|
Bandwidth |
Up to 340Mhz |
|
Signal Speed |
Up to 10.2Gbps |
|
The length of input cable |
PS3≤10M；BLUE DVD≤10M |
|
The length of output cable |
≤10M |
|
The cable standard |
28AWG HDMI1.3 |
|
Vertical Frequency Range |
60Hz |
|
Power Consumption(max) |
1.5 Watts |
|
Operation Temperature |
0℃ TO 70℃ |
|
Working Voltage |
DC 5V |
|
Power Adaptor |
5V 1A |
|
Net Weight |
132g |
|
Dimension: L×W×H（mm） |
100×48×24.5 |
