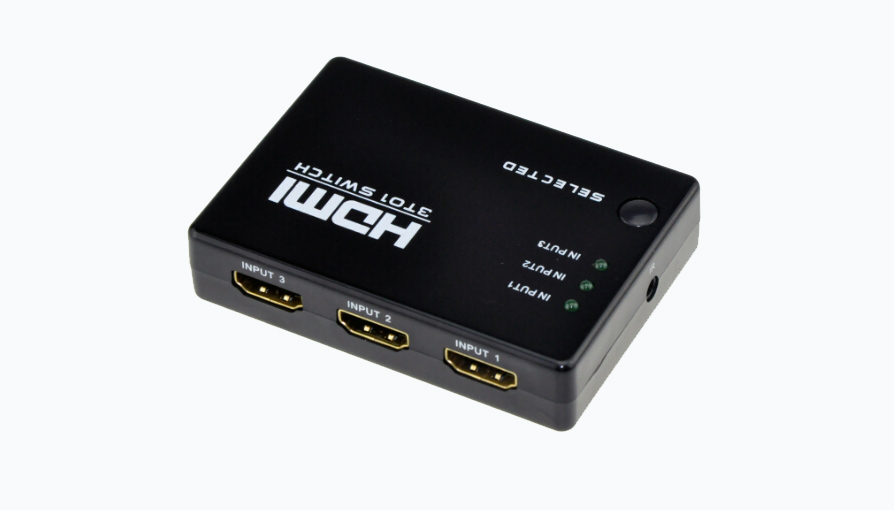

Current Position: Home >Products>HDMI Switch> 3x1 HDMI Switcher

Model:SWTH-03013 Input:3*HDMI
Output:1*HDMI



Main Features:
Support 1080P,3D. HDMI 1.3 compliant



Data Download Pint This Page

Details

Allow user to manually switch between three HDMI sources to one device.


Features
This MiNi HDMI Amplifier Switcher has many features that enable it to perform in a superior manner. Among those features you will find:
（1）Support 12-bit Deep Color, full 1080p(2) Support 3D
（3）Multifunctional on switching : intelligent or mechanical
（4）Supports with HDMI1.3b.
（5）Supports Power Adapter 5V 1A

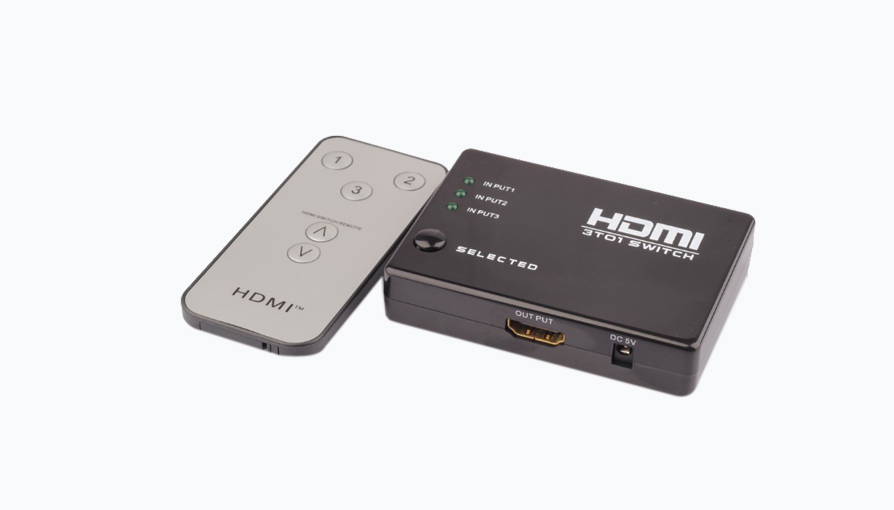

（6）Supports IR Remote
（7）High performance up to 2.5Gbps
（8）Supports 25Meters HDMI Cable on both ends of the Switcher
（9）Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, 1440p graphics and computer resolutions up to 1920 x 1200 are easily achieved



SPECIFICATIONS

Signal Inputs/Output

Input Video Signal

0.5-1.0 volts p-p

Input DDC Signal

5 volts p-p (TTL)

Maximum Single Link Range

1920X1200, 1080P

Output Video

HDMI1.3b+HDCP1.0/1.1

Video format supported

VGA

640x480,800x600,1024x768,1920x1200

DTV/HDTV

480i/576i/480p/576p/720p/1080i/1080P

Digital Signal I/O

HDMI Compliance

HDMI 1.3b

Operating Frequency

50/60Hz

Frequency

Vertical Frequency Range

60Hz

Video Amplifier Bandwidth

2.5Gpbs/250MHz

Resolutions(HDTV)



Interlaced(50&60Hz)

480i,576i,1080i

Progressive(50&60Hz)

480p,576p,720p,1080p

Mechanical



Size(H-W-D)

80*58*17mm

Weight(Net)

145g

Warranty

Limited Warranty

1 Year Parts and Labor

Environmental

Operating Temperature

0℃to +70℃

Operating Humidity

10% to 85 % RH (no condensation)

Storage Temperature

-10℃to +80℃

Storage Humidity

5% to 90 % RH (no condensation)

Power Requirement

5V@1A

Accessories Adapter

User Manual

English Version
