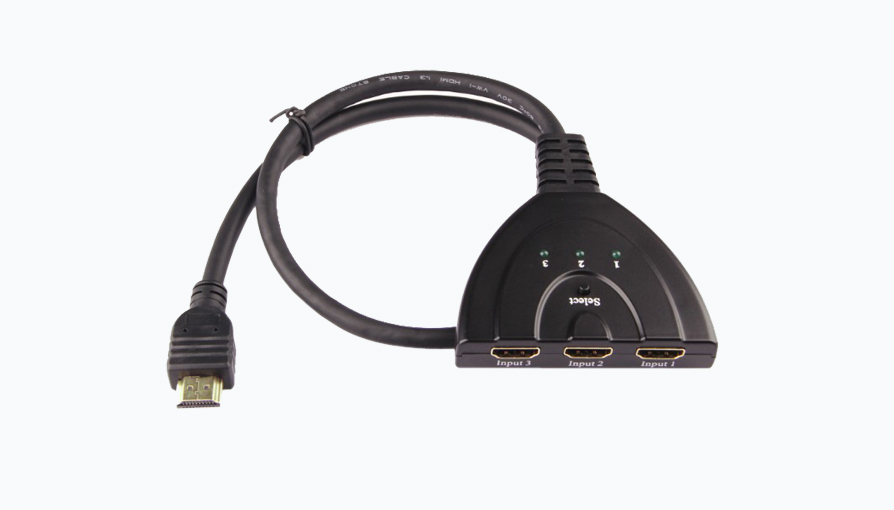

Current Position: Home >Products>HDMI Switch> 3x1 HDMI Switcher

Model:SWTH-03014 Input:3*HDMI
Output:1*HDMI



Main Features:
Support 12-bit Deep Color, full 1080p Support 3D display device.Support HDCP NO power supply required



Data Download Pint This Page

Details

This 3x1 HDMI 1.3 switcher enable three HDMI devices to share on one HDMI input device by manually switch.


Features
This HDMI Amplifier Auto Switcher has many features that enable it to perform in a superior manner. Among those features you will find:
1、Support 12-bit Deep Color, full 1080p
2、Support 3D display device.
3、Support HDCP
4、Multifunctional on switching : automatic or mechanical
5、Supports with HDMI1.3b.
6、High performance up to 2.5Gbps
7、Supports 25Meters HDMI Cable on both ends of the Switcher
8、Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 1440p graphics and computer resolutions up to 1920 x 1200 are easily achieved
9、Controlled by Button, no power needed



SPECIFICATIONS:

Signal Inputs/Output

HDMI

Input Video Signal

0.5-1.0 volts p-p

Input DDC Signal

5 volts p-p (TTL)

Maximum Single Link Range

1920X1200, 1080P

Output Video

HDMI1.3b+HDCP1.0/1.1 DVI1.0

VGA

640x480,800x600,1024x768,1920x1200

DTV/HDTV

480i/576i/480p/576p/720p/1080i/1080P，3D

HDMI Compliance

HDMI 1.3b

Frequency

Up to225MHz

Vertical Frequency Range

60Hz

Video Amplifier Bandwidth

2.5Gpbs/225MHz

Resolutions(HDTV)

HDMI SWITCH

Interlaced(50&60Hz)

480i,576i,1080i

Progressive(50&60Hz)

480p,576p,720p,1080p

Limited Warranty

1 Year Parts and Labor

Operating Temperature

0℃to +70℃

Operating Humidity

10% to 85 % RH (no condensation)

output Cable Length

60CM

Storage Temperature

-10℃to +80℃

Storage Humidity

5% to 90 % RH (no condensation)

Power Requirement

No power needed

Accessories Adapter

User Manual

English Version
