Current Position: Home >Products>Audio Converters> Digital to Analog Audio Converter

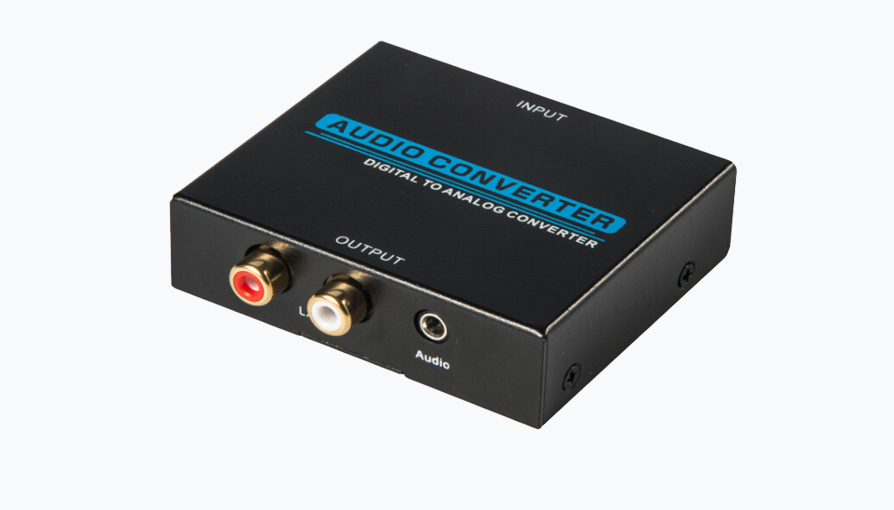

Model:CNTR-07031 Input:1*Toslink, 1*Coax.

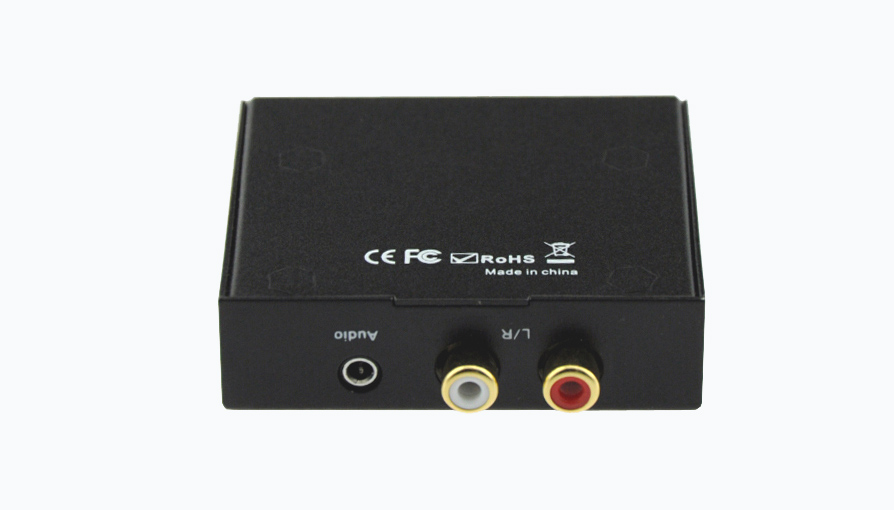

Output:1*L/R Audio, 1*3.5mm Audio Jack

Main Features:
Support data rate upto SPDIF 192KHz@24bits 2 channel LPCM audio

Data Download Pint This Page

Details

CNTR-07031 is designed for either home or professional audio switching. It converts Coaxial or Toslink digital audio signals to analog L/R audio and available for connection to an external device such as an amplifier viastandard RCA-style jacks. This Converter is small in size and quite easy to install.

Features

This Converter has many features that enable it to perform in a superior manner.Among those features you will find:

1) Converts Coaxial or Toslink digital audio signals to analog L/R audio

2) Supports sampling rate at 32, 44.1, 48 and 96 KHz.

3) 24-bit S/PDIF incoming bit stream on left and right channels

4) Provides electromagnetic-noise-free transmission.

5) Easy to install and simple to operate.

Specifications

Signal Inputs/Output
Input Audio	Coaxial or Toslink digital audio
Output Audio	L/R +3.5mm audio
Connector
Input audio connector	Toslink、1XRCA(Coaxial)
Output audio connector	2XRCA（R/L）
Sampling rate	32, 44.1, 48 and 96 KHz
Mechanical
Size(LxWxH)	51x41x26mm
Weight (Net)	78g
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0 ℃ to +70℃
Operating Humidity	10% to 85% RH (no condensation)
Storage Temperature	-10℃ to +80℃
Storage Humidity	5% to 90% RH (no condensation)
Power Requirement
External Power Supply	DC 5V 1A
Power Consumption	0.5 watts (max)
Regulatory Approvals
Converter Unit	FCC,CE,UL
Power Supply	UL,CE,FCC
Accessories Adapter
AC Power Adapter	US standard, UK standard and so on
User Manual	English Version
