1.0 INTRODUCTION

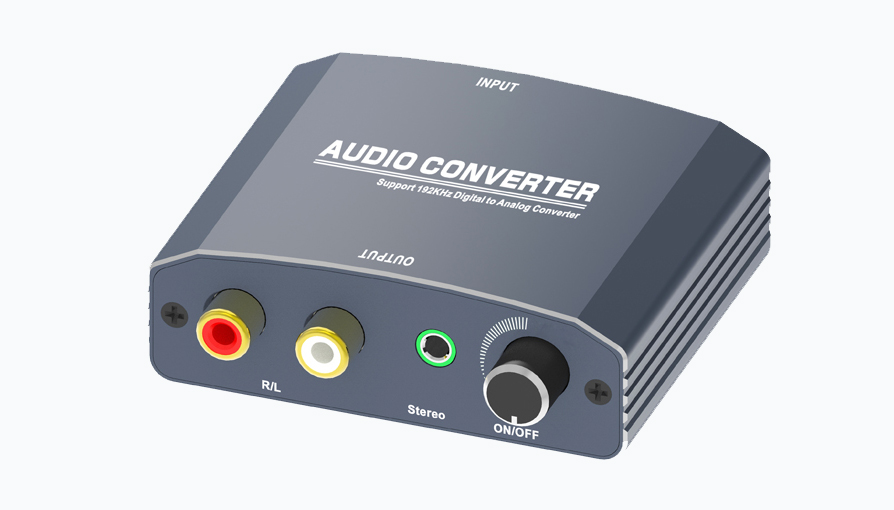

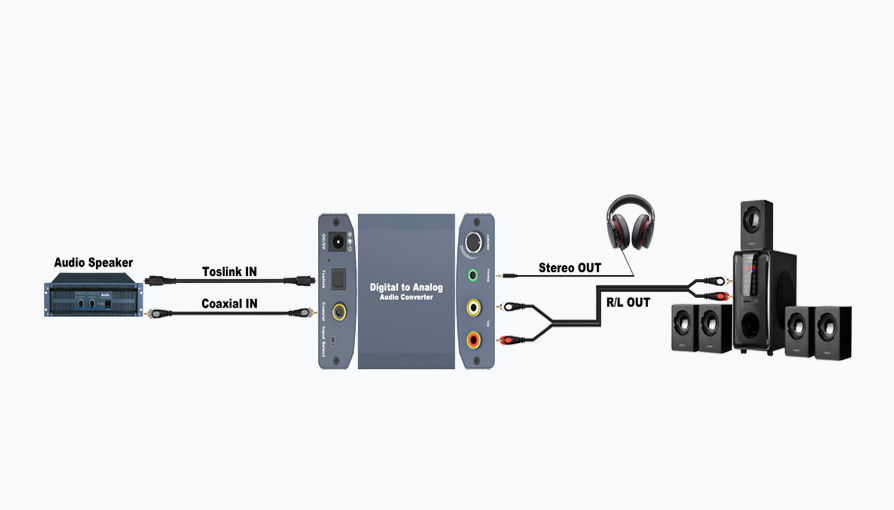

This Digital to Analog Audio Converter is designed for either home or professional audio switching. It converts Coaxial or Toslink digital audio signals to analog L/R audio and available for connection to an external device such as an amplifier via standard RCA-style jacks and 3.5mm stereo jack,This Converter is small in size and quite easy to install.

2.0 FEATURES

This Converter has many features that enable it to perform in a superior manner. Among those features you will find:

1)Converts Coaxial or Toslink digital audio signals to analog audio.

2)Supports sampling rate at 32, 44.1, 48 and 192KHz.

3)24-bit SPDIF incoming bit stream on left and right channels.

4)Support Input select.

5)Support volume amplification and adjustment.

6)Provides electromagnetic-noise-free transmission.

7)Easy to install and simple to operate.

3.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1) Digital to Analog Audio Converter---------------------1 PCS

2) 5V DC Power Supply-------------------------------------1 PCS

3) User’s Manual----------------------------------------------1 PCS

4.0 SPECIFICATIONS

Note: Specifications are subject to change without notice.
