Current Position: Home >Products>Audio Converters> Digital to Analog Audio Converter

Model:CNTR-07021 Input:1*Toslink, 1*Coax.
Output:1*L/R Audio



Main Features:
Support data rate upto SPDIF 192KHz@24bits 2 channel LPCM audio



Data Download Pint This Page

Details

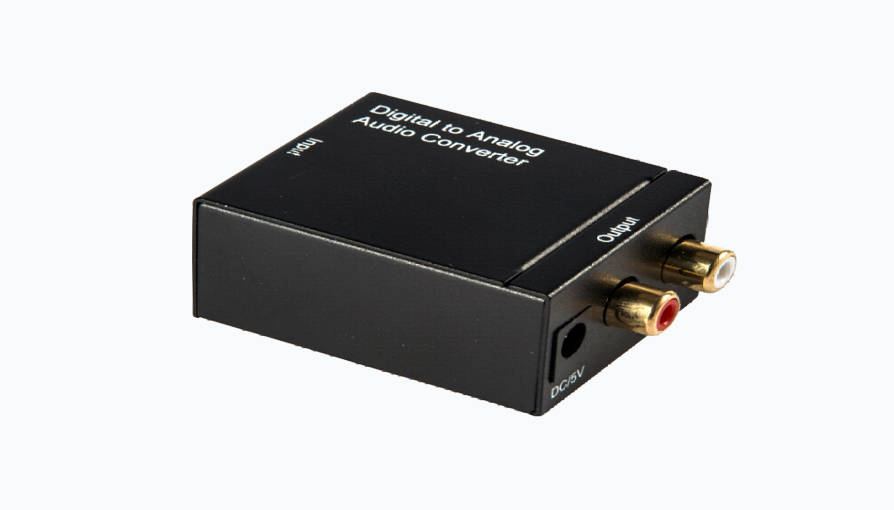

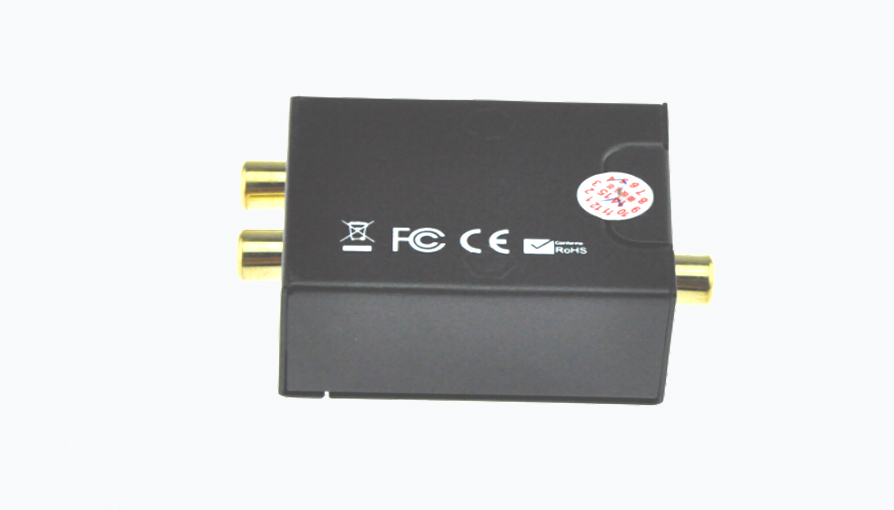

CNTR-07021 is designed for either home or professional audio switching. It converts Coaxial or Toslink digital audio signals to analog L/R audio and available for connection to an external device such as an amplifier viastandard RCA-style jacks. This Converter is small in size and quite easy to install.



Features

This Converter has many features that enable it to perform in a superior manner.Among those features you will find:

1) Converts Coaxial or Toslink digital audio signals to analog L/R audio

2) Supports sampling rate at 32, 44.1, 48 and 96 KHz.

3) 24-bit S/PDIF incoming bit stream on left and right channels

4) Provides electromagnetic-noise-free transmission.

5) Easy to install and simple to operate.


Specifications

Signal Inputs/Output

Input Audio

Coaxial or Toslink digital audio

Output Audio

L/R audio

Connector

Input audio connector

Toslink、1XRCA(Coaxial)

Output audio connector

2XRCA（R/L）

Sampling rate

32, 44.1, 48 and 96 KHz

Mechanical

Size(LxWxH)

51x41x26mm

Weight (Net)

78g

Warranty

Limited Warranty

1 Year Parts and Labor

Environmental

Operating Temperature

0 ℃ to +70℃

Operating Humidity

10% to 85% RH (no condensation)

Storage Temperature

-10℃ to +80℃

Storage Humidity

5% to 90% RH (no condensation)

Power Requirement

External Power Supply

DC 5V 1A

Power Consumption

0.5 watts (max)

Regulatory Approvals

Converter Unit

FCC,CE,UL

Power Supply

UL,CE,FCC

Accessories Adapter

AC Power Adapter

US standard, UK standard and so on

User Manual

English Version
