Model:CNTR-07101
Input:Toslink,Coaxial
Output:L/R, Stereo
Main Features:
1.Sampling rate upto 192Khz
2.Support Bluetooth Receiver
3.Support 24bits optical input
Pint This Page

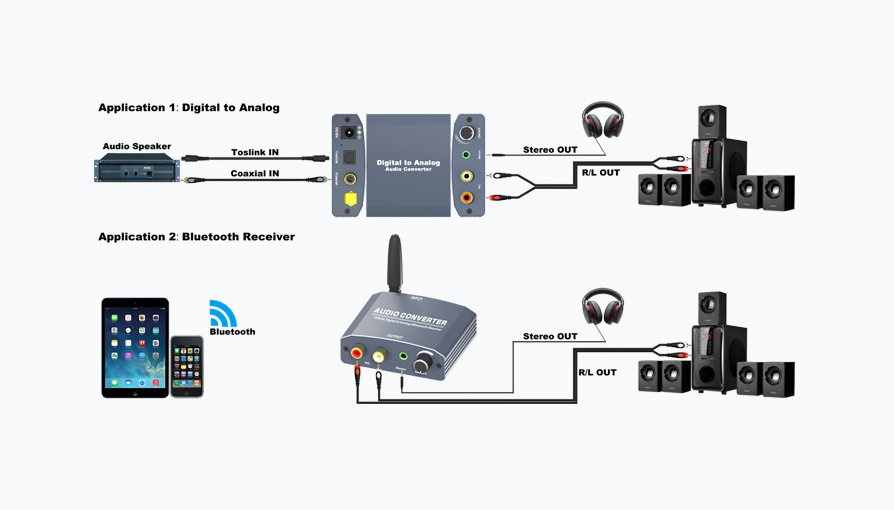

This Digital to Analog Audio Converter is designed for either home or professional audio switching. It converts Coaxial or Toslink digital audio signals to analog L/R audio and support receiving audio signals via Bluetooth.It is also available for connection to an external device such as an amplifier via standard RCA-style jacks and 3.5mm stereo jack,This converter is small in size and quite easy to install.
2.0 FEATURES
This Converter has many features that enable it to perform in a superior manner. Among those features you will find:
1) Converts Coaxial or Toslink digital audio signals to analog audio.
2) Supports sampling rate at 32, 44.1, 48 and 192KHz.
3) 24-bit SPDIF incoming bit stream on left and right channels.
4) Support Bluetooth Receiver.
5) Support volume amplification and adjustment.
6) Provides electromagnetic-noise-free transmission.
7) Easy to install and simple to operate.
3.0 SPECIFICATIONS
|
Signal Inputs/Output |
|
|
Input Audio |
Coaxial or Toslink digital audio |
|
Bluetooth Standard |
5.0 |
|
Output Audio |
R/L +3.5mm audio |
|
Connector |
|
|
Input audio connector |
Toslink、1XRCA(Coaxial) |
|
Output audio connector |
2XRCA（R/L）3.5mm stereo jack |
|
Sampling rate |
32,44.1, 48,96 and 192KHz |
|
Mechanical |
|
|
Size(LxWxH) |
73x60.5x22.5mm |
|
Weight (Net) |
90g |
|
Warranty |
|
|
Limited Warranty |
1 Year Parts and Labor |
|
Environmental |
|
|
Operating Temperature |
0 ℃ to +70℃ |
|
Operating Humidity |
10% to 85% RH (no condensation) |
|
Storage Temperature |
-10℃ to +80℃ |
|
Storage Humidity |
5% to 90% RH (no condensation) |
|
Power Requirement |
|
|
External Power Supply |
DC 5V 1A |
|
Power Consumption |
0.5 watts (max) |
|
Regulatory Approvals |
|
|
Converter Unit |
FCC,CE,UL |
|
Power Supply |
UL,CE,FCC |
|
Accessories Adapter |
|
|
AC Power Adapter |
US standard, UK standard and so on |
|
User Manual |
English Version |
