Current Position:

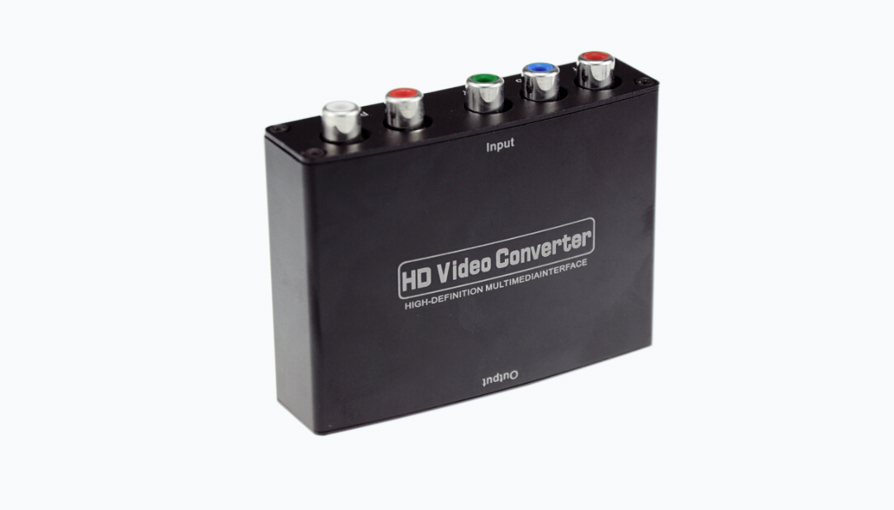

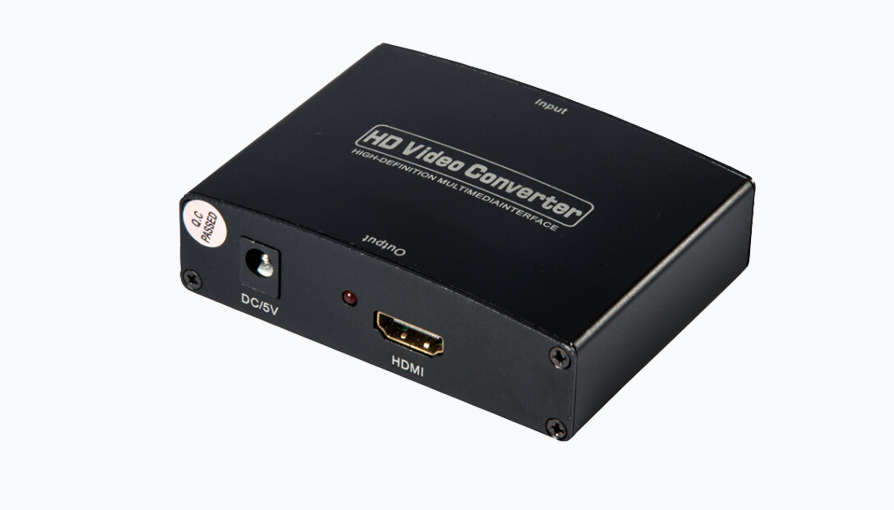

Model:CNTR-02041
Input:1*YUV, 1*L/R Audio
Output:1*HDMI
Main Features:
Supports HDTV/YPbPr;
Supports highest video resolution 1080P
Data Download
Pint This PageThis is a component video(YPbPr)converter that allows older analog devices to be integrated seamlessly into the modern home theater. This adapter connects component video home theater devices to HDMI Compliant digital monitors. This adapter also takes digital auto and encodes it onto the HDMI signal for the full HDMI video and audio effect. With the Analog Audio to HDMI Adapter legacy home theater devices can be easily connected to any HDMI display for the full digital video and audio experience.
FEATURES
This Converter has many features that enable it to perform in a superior manner Among those features you will find:
1、Allows you to connect YPbPr HDTV sources to an HDMI display;
2、Analog Audio onto the video signal for HDMI video and audio;
3、Supports HDTV/YPbPr;
4、Supports highest video resolution 1080P;
5、Supports 165MHz/1.65Gbps per channel(6.75Gbps all channel)bandwidth;
6、Supports 8bit per channel(24bit all channel)deep color;
7、Supports uncompressed audio such as DTS Digital, Dolby Digital(including
DTS-HD and Dolby True HD)
SPECIFICATIONS
|
Signal Inputs/Output |
|
|
Input DDC Signal Signal |
0.5-1.0 volts p-p |
|
HDMI Connector |
type A(19 pin)female |
|
Video Connector |
3RCA Component |
|
Audio Connector |
2RCA R/L |
|
Output Video |
HDMI1.3 |
|
Operating Frequency |
|
|
Vertial Frequency Range |
50/60Hz |
|
Input Video Amplifier Bandwidth |
1.65Gbps/165MHz |
|
Resolutions(HDTV) |
|
|
Interlaced(50&60Hz) |
480i、576i、1080i |
|
Progressive(50&60Hz) |
480p、576p、720p、1080p |
|
Mechanical |
|
|
Size(LxWxH) |
88x68x25.5mm |
|
Weight(Net) |
0.12kg |
|
Warranty |
|
|
Limited Warranty |
1 Year Parts and Labor |
|
Environmental |
|
|
Operating Temperature |
0 to +70℃ |
|
Operating Humidity |
10% to 85 % RH (no condensation) |
|
Storage Temperature |
-10 to +80℃ |
|
Storage Humidity |
5% to 95 % RH (no condensation) |
|
Power Requirement |
|
|
External Power Supply |
DC 5V 1A |
|
Power Consumption(max) |
5W |
|
Regulatory Approvals |
|
|
Converter Unit |
CE,FCC,ROHS |
|
Power Supply |
CE,FCC,PSE,TK,UL |
|
Accessories Adapter |
|
|
AC Power Adapter |
US standard, UK standard and so on |
|
User Manual |
English Version |
