Current Position: Home >Products>AV Converters> HDMI~AV

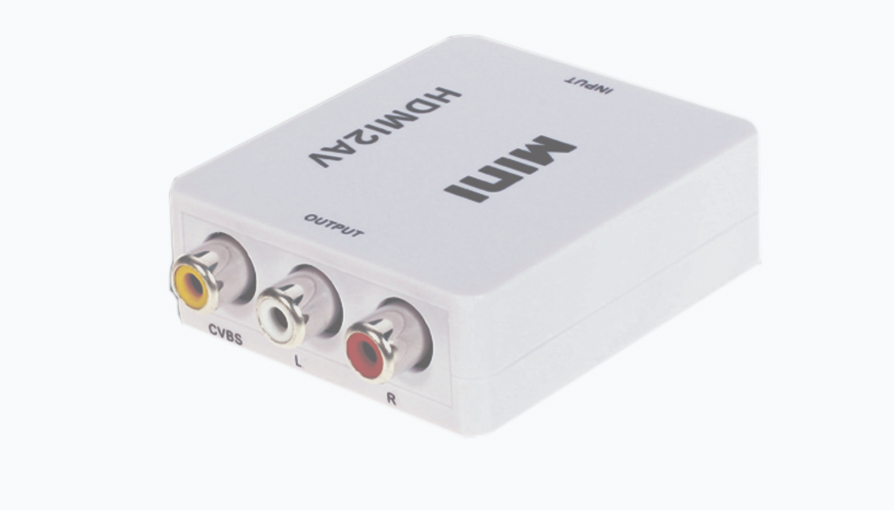

Model:CNTR-01011 Input:1*HDMI
Output:1*Video, 1*R/L Audio



Main Features:
Plug and play PAL & NTSC Compitable



Data Download Pint This Page

Details

HDMI Konverter HDMI zu Cinch/Composite AV/CVBS/RCA, Full HD 720p/1080p,USB-Stromversorgung,PAL/NTSC,für PS3,Digitalempfänger,Xbox,Videorecorder,Blue-Ray DVD-Player,Fernsehgeräte- Schwarz


Manufacturer: Topwin

Band:CNHON

UPC: 703546281932

EAN:0703546281932


CNTR-01011 converts HDM video signal and audio signal to AV (CVBS) composite video signal and the FL / FR stereo audio signals, while support DVI system sideline signals. To help users convert the high quality of the HDMI video signal into normal CVBS signal (standard-definition 480i, 576i,).So that can play on TV, VHS VCR, DVD recorders, etc and support NTSC and PAL two TV format.


FEATURES

1. No need to install drivers, portable, flexible, plug and play;

2. Low power, No power adaptor;

3. Support NTSC and PAL two standard TV formats output;

4. Compatible HDMI1.3.

SPECIFICATIONS

1. Input port: 1xHDMI;

2. Output ports: 3xRCA (Yellow, White, Red);

3. Dimensions (mm): 66(D) x55(W) x20(H);

4. Wight (g): 40;

5. HDMI Input Resolution:

    640x480@60Hz,800x600@60Hz,

    1024x768@60Hz,1280x720@60Hz,

    1280x1024@60Hz,1360x768@60Hz,

    1600x1200@60Hz,1920x1080@60Hz,

    480i/60Hz, 480p/60Hz, 576i/60Hz, 576p/60Hz,

    720p50/60Hz,1080I50/60Hz, 1080p50/60Hz.

6. CVBS output: PAL, NTSC_M, and (NTSC_J).

PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

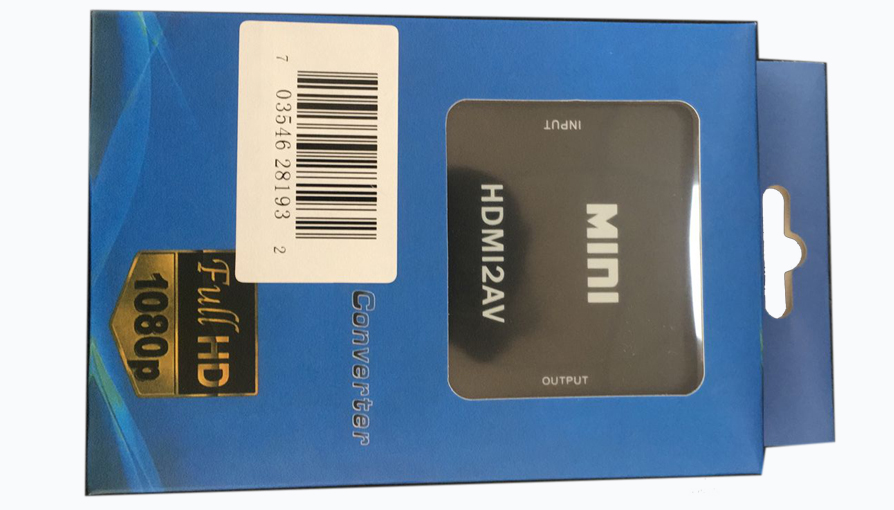

1) Main unit (HDMI to AV Converter)--------------1PCS

2) USB Cable or 5V 1A Power adapter------------1PCS

3) User Manual----------------------------------------1PCS
