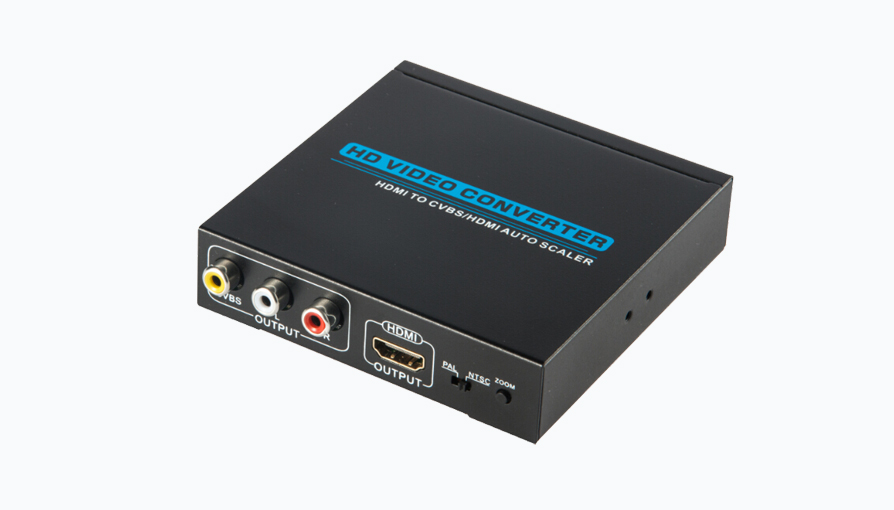

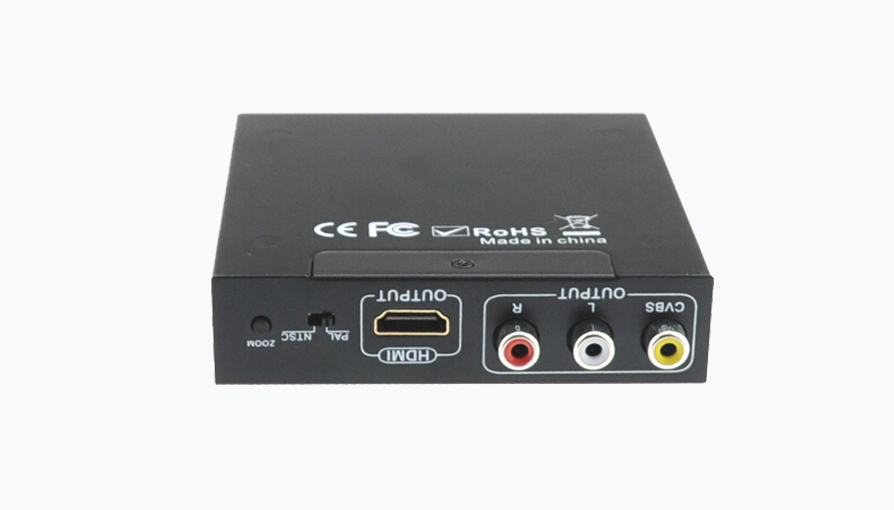

CNTR-01031 convertS HDM video signal or audio signal to AV (CVBS) composite video signal and the FL / FR stereo audio signals, and HDMI signals. It also support DVI system sideline signals. Help users convert the high quality of the HDMI video signal into normal CVBS signal (standard-definition 480i, 576i,).So that can play on TV, VHS VCR, DVD recorders, etc. Support NTSC and PAL two TV format.

FEATURES:

1.  Can convert the HDMI signal into PAL/NTSC Video signal output by video precessing.

2.  To bypass output the HDMI high defeinition signal losslessly

3.  Zoom in/out function, to limited the CVBS ouput pictures, to keep the pictures in the TV screen.

4.  To identificat HDCP.automatically, to get rid of the HDCP KEY which go with the HDMI..

5.  To convert the HDMI digital audio into analog stereo by the DAC analog chips processing.

6.   To apply the most advanced video processing techniques, To enhanced process the the brightness, contrast, color of the image.

7.  The image switching function can solve the display deformation problem of the TV Image, when the 16:9 (ratio) High definition Image are convert into 4:3（ratio）

SPECIFICATION:

1. Hardware conversion, plug and play without any software driver

2. Compatible HDMI1.3

3. Support NTSC and PAL two standard TV formats

4. One HDMI input, one AV output, one stereo output

   Inputs: HDMI x 1

   Outputs: CVBS x 1; L / R x 1 HDMI x 1

5. HDMI input: 480P, 576P, 720P, 1080I, 1080P @ 60Hz

6. compatible with DVI mode 800x600,1024x768,1280x720,1280x1024，1920x1080/@60hz

7. Support the HDCP protocol, support for HDMI 1.3

8. CVBS output: 480I, 576I

9. Audio output: L/R channels

10.HDMI OUTPUT: BYPASS HDMI

11.Dimensions：100mm(W)x115mm(D)x 25mm(H)

PACKAGING ACCESSORIES:

When first unpacking your extender please check to see if the following items are included:

1.HDMI TO CVBS/HDMI CONVERTER---------------1 Pcs

2.User manual---------------------------------------------1 Pcs

3.Power supply--------------------------------------------1 Pcs
