1.0 Introduction

The HDMI2.0 60M HDMI extender uses one single Cat5e/6(recommended)cable instead of HDMI cable,you can extend the 4K signal to 60 Meters.The purpose of the extender is to achieve long-distance signal transmission with low- cost wires.

2.0 Features

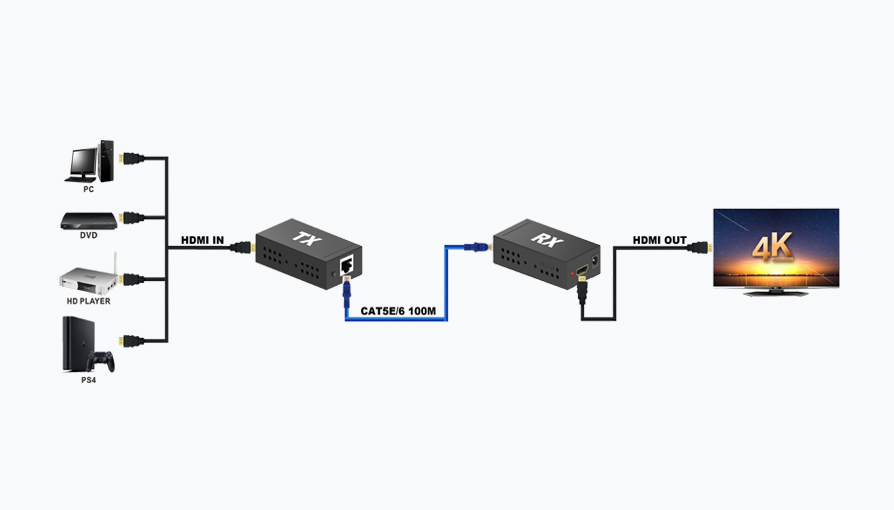

1.Signal transmission :cat5e or cat-6(recommended) cables up to 60

   meters instead of HDMI cables are connected between TX and RX

   Extender;

2. Compliant with HDMI2.0, HDCP2.2 and DVI 1.0;

3. Support video format up to 4k2k@60Hz with 24bit RGB/YcbCR

   4:4:4/YCBCR4:4:4,and up to 4k2k@60Hz with 12bit YCBCR 4:4:4;

4. Support 3D frame sequential video format up to 1080p@60;

5. Support EDID Switch;

6. Audio format support :

   DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD;

7. Extend the transmission distance and improve transmission signal;

3.0 Packaging Accessories

When first unpacking your extender please check to see if the following items are included:

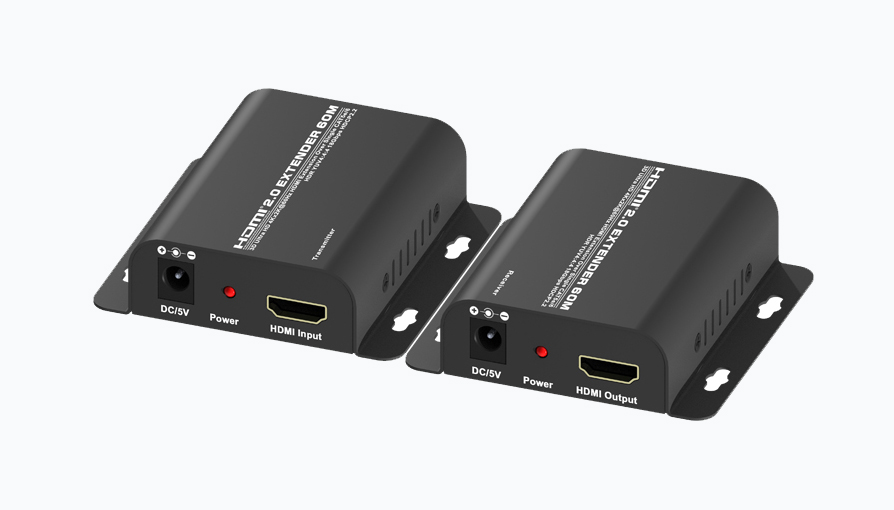

1.HDMI Transmitter -------------------1PCS

2.HDMI Receiver ----------------------1PCS

3.Power supply-------------------------2PCS

4.User manual--------------------------1PCS

4.0 Specification

Length of CAT-6 cable between Transmitter and Receiver --------------------------------------Up to 60 meters

HDMI Input/Output----------------------------------------4Kx2K@60Hz/1080p/1080i/720p/576p/576i/480p/480i

Support audio format -----------------------------------DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth----------------------------------------------------------------------------------------------------------600MHz

Max baud rate-----------------------------------------------------------------------------------------------------------18Gbps

Input Video signal ------------------------------------------------------------------------------------------0.5~1.5Volts p-p

Output DDC signal----------------------------------------------------------------------------------------5Volts p-p (TT1L)

Input/Output HDMI cable distance-------------------------------------------≤10m AWG26 HDMI standard cable

Max working current----------------------------------------------------------------------------------------------------800mA

Power adapter format ------------------------------------Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range------------------------------------------------------------------------------ (-15 to +55℃)

Operating Humidity range------------------------------------------------------------5 to 90%RH (No Condensation)

Dimension(L x W x H)------------------------------------------------------------------------------------82x43.5x23.5mm
