Model:ECHS-20021 Input:HDMI,RJ45
Output:RJ45,HDMI



Main Features:
Non-compressed data Local loop out Audio insert function



Data Download Pint This Page

Details

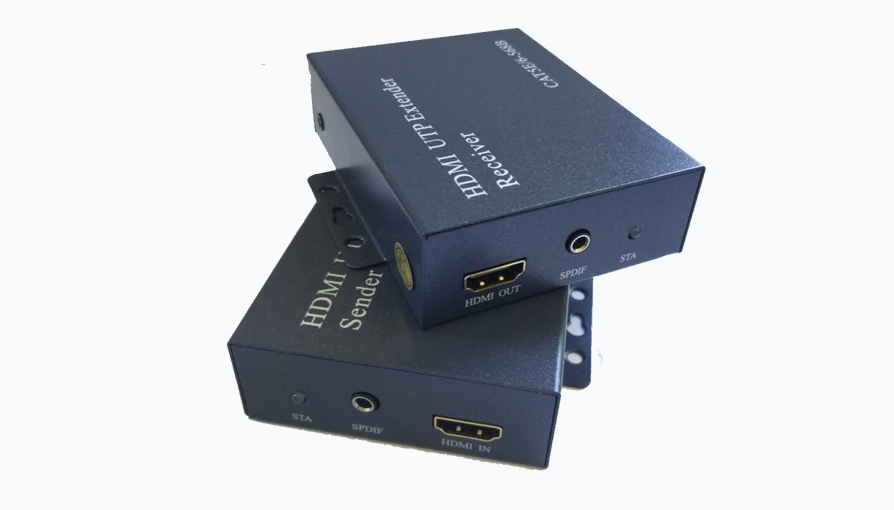

The HDMI extender, used for HD and non-condensed signal upto 1080p  to 200 meters, it supports independent audio to the remote, as far as 200 meters,  in the meantime, the transmitter provides a HDMI output port for local display. Different with conventional TCP/IP protocol  extender is this product image is a zero delay transmission, without image compression reduction, people get better display quality.


Items



 Description

Function

Transmission Signal Type

HDMI,Independent Digital Audio



Transmission Channel

1 Line



Transmission Distance

200m

Power Section

Power Supply Mode

External Power Supply



Adaptive Voltage Range

5VDC 1A

HDMI Performance And Interface

Support HDMI Version

HDMI1.3



Support HDCP Version

HDCP1.2



HDMI Resolution

 1920*1080@60HZ downward Compatibility



Audio Signal Transmission Format

Digital Audio



Interface

RJ45 Cable Cat5e/Cat6 and Above

Performance adjustment

Picture effect

Receiver Length Knob Can Adjust the Screen Effect to the Best

Protection Level

Electrostatic Protection

1A Contact Discharge 3 Level

 1b Air Discharge Level 3

 Implementation Standard: IEC61000-4-2

Operational Environment

Working Temperature

0~40℃



 Storage Temperature

-2070℃



 Humidity (No Condensation)

095%

Organism Attribute

 Dimensions (L * w * h)

97*98*28mm



 Material

Engineering Grade Steel



 Weight

0.8KG

Security

Continue Working Time Before Breakdown

>30000 hours
