1.0 Introduction

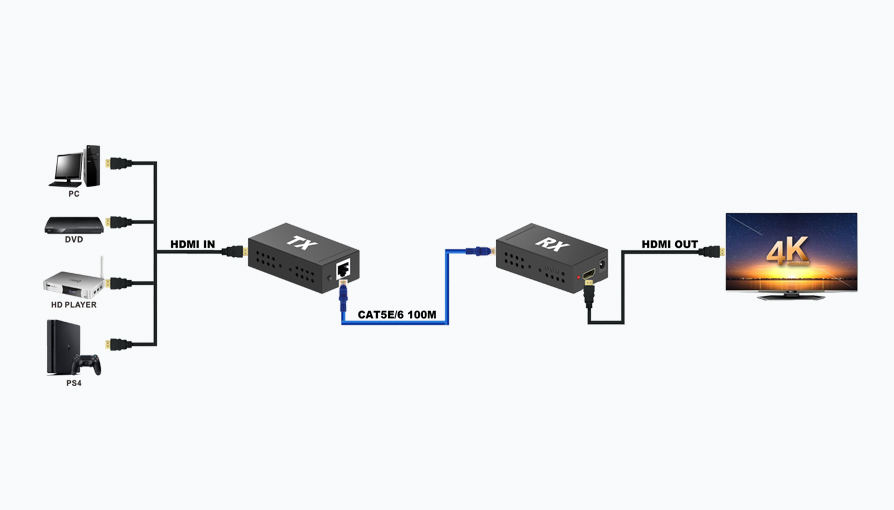

The 4K 100M HDMI extender uses one single Cat5e/6(recommended)cable instead of HDMI cable,you can extend the 4K signal to 100 Meters.The purpose of the extender is to achieve long-distance signale transmission with low- cost wires.

2.0 Features

1.Signal transmission :cat5e or cat-6(recommended) cables up to 100

  meters instead of HDMI cables are connected between TX and RX

  Extender;

2. Support HDMI1.4v;

3. 3.Support input/Output Resolution :

4Kx2K@30Hz/1080p/1080i/720p/576p/576i/480p/480i;

4. Support CEC;

5. Audio format support :

   DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD;

6.No loss of quality;

7.Installs in minutes;

8.Need DC5V/1A power supply.

3.0 Packaging Accessories

When first unpacking your extender please check to see if the following items are included:

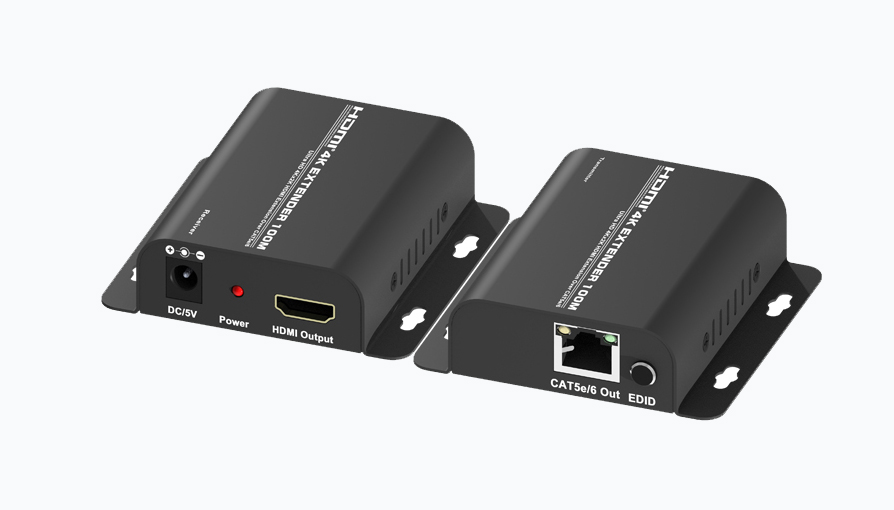

1.HDMI Transmitter -------------------1PCS

2.HDMI Receiver ----------------------1PCS

3.Power supply-------------------------2PCS

4.User manual--------------------------1PCS

4.0 Specification

Length of CAT-6 cable between Transmitter and Receiver----------------------------------------Up to100 meters

HDMI Input/Output---------------------------------------------------4Kx2K/1080p/1080i/720p/576p/576i/480p/480i

Support audio format ------------------------------------DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth-----------------------------------------------------------------------------------------------------------340MHz

Max baud rate---------------------------------------------------------------------------------------------------------10.2Gbps

Input Video signal -------------------------------------------------------------------------------------------0.5~1.5Volts p-p

Output DDC signal-----------------------------------------------------------------------------------------5Volts p-p (TT1L)

Input/Output HDMI cable distance-------------------------------------------≤15m AWG26 HDMI standard cable

Max working current----------------------------------------------------------------------------------------------------800mA

Power adapter format ------------------------------------Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range------------------------------------------------------------------------------ (-15 to +55℃)

Operating Humidity range------------------------------------------------------------5 to 90%RH (No Condensation)

Dimension(L x W x H)-----------------------
