Current Position: Home >Products>VGA Extender> VGA Over Fibre

Model:EOVS-00501 Input:VGA, FIBRE, AUDIO
Output:VGA, FIBER, AUDIO



Main Features:
High compatibility, auto match source and display Support video resolution upto 1920*1080 @ 60Hz



Data Download Pint This Page

Details

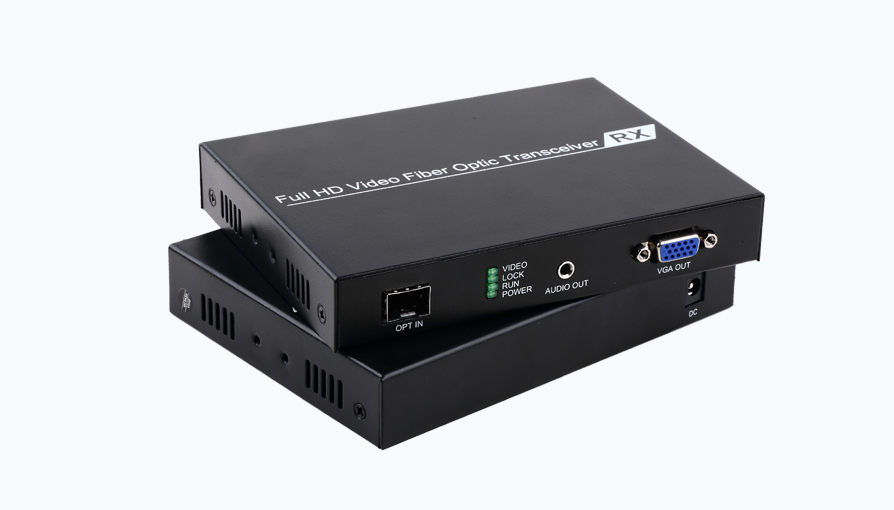

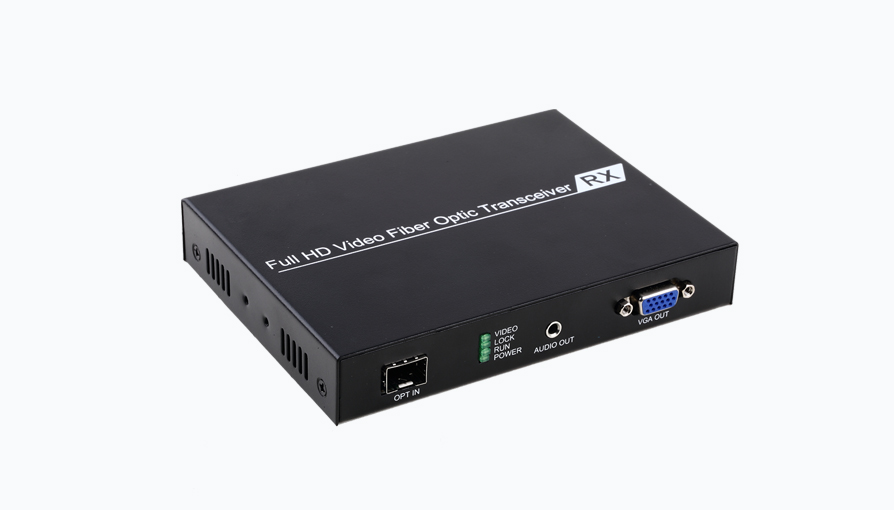

The EOVS-01001 Fiber optic extender provides extension of VGA signals long distances over one fiber optic cable, it supports high resolution up to 1080P and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.


Features:
Transmits VGA video signals up to 5km over one fiber optic cable;
Support video resolution up to 1920*1080P@60Hz;
Support external stereo audio unidirectional transmission;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play;


Specification:

Parameter

Description

Video

Standards

VGA

Maximum pixel clock

380MHz

Resolution

1920*1080/60Hz,1280*1024/60Hz，

1280*768/60Hz，1280*720/60Hz,

1024*768/60Hz, 800*600/60Hz,

Impedance

75Ω

Audio

Interface

3.5mm earphone seat

Format

44.1K,48K,96K,176K,192K

Signal type

Stereo

Optical fiber

Interface

LC connector

Fiber type

Single-mode single fiber

Wavelength

Single-mode 1310nm

Interface bandwidth

2.97Gbps

Transmission distance

standard 5km, max:40km

Other

Power supply

The power adapter: DC 5V/2A

Power dissipation

MAX 4W

Temperature

Operating: -5℃ ~ +70℃

Humidity

Operating: 5% ~ 90%

Dimension

155*115*30mm

The warranty

1 year free warranty, life-long maintenance
