Current Position: Home >Products>VGA Extender> VGA Over Fibre

Model:EOVD-01001 Input:VGA, FIBRE, AUDIO
Output:VGA, FIBER, AUDIO

Main Features:
Support external stereo audio transmission Built-in ESD protection Video resolution upto 1920*1080@60Hz

Data Download Pint This Page

Details

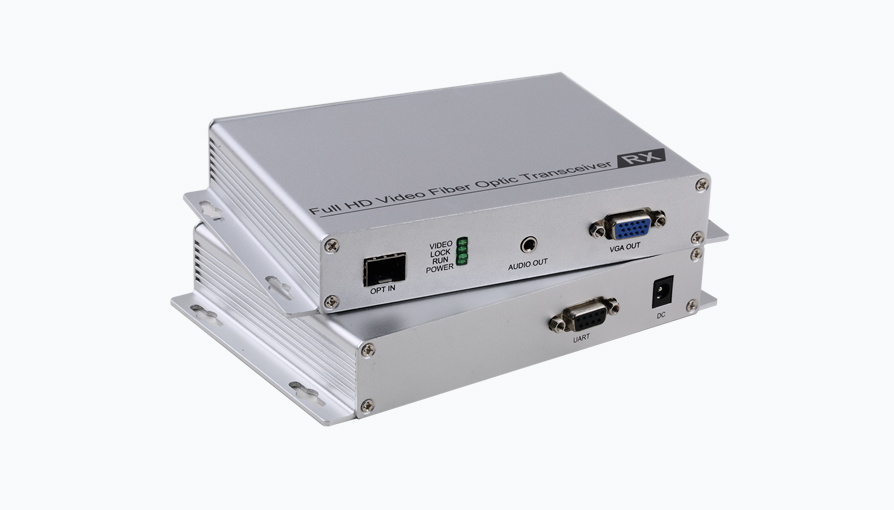

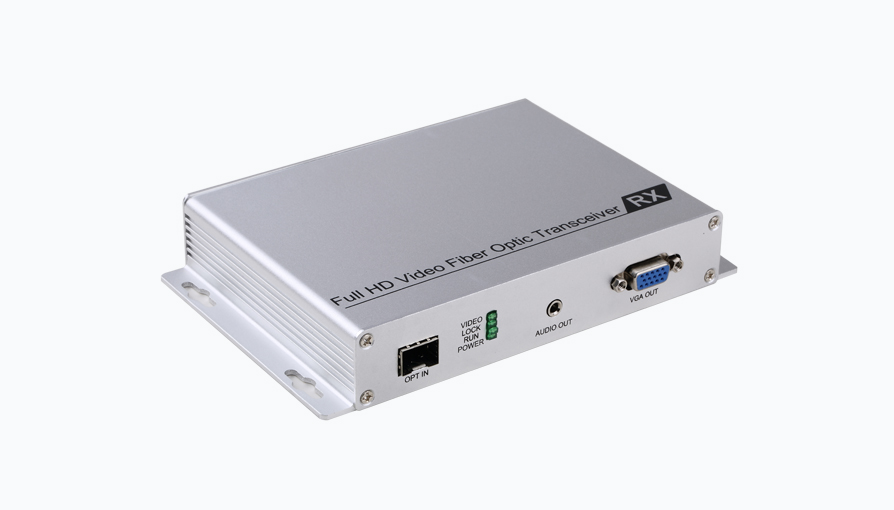

The EOVD-01001 Fiber optic extender provides extension of VGA signals long distances over one fiber optic cable, it supports high resolution up to 1080P, transmitter local output, RS232 signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features:
Transmits VGA video signals up to 10km over one fiber optic cable;
Support video resolution up to 1920*1080P@60Hz;
Support external stereo audio unidirectional transmission;
Support transmitter one channel signal output;
Support RS232 signal unidirectional transmission, baud rate self-adaptive;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play;

Specifications

Parameter		Description
Video	Standards	VGA
	Maximum pixel clock	380MHz
	Resolution	1920x1200@60Hz / 1920x1080@60Hz 1600x1200@60Hz / 1680x1050@60Hz 1280x1024@60Hz / 1280x1024@75Hz 1280x800@60Hz / 1280x768@60Hz 1280x720@60Hz / 1024x768@60Hz / 1024x768@75Hz 800x600@60Hz / 800x600@75Hz
	Impedance	75Ω
Audio	Interface	3.5mm earphone seat
	Format	44.1K,48K,96K,176K,192K
	Signal type	Stereo
RS232	Interface	Industrial terminal
	Signal direction	Unidirectional
	Baud rate	Self-adaptive, Max：115200bps
	Data bits	8
Optical fiber	Interface	LC connector
	Fiber type	Single-mode single fiber
	Wavelength	Single-mode 1310nm
	Interface bandwidth	2.97Gbps
	Transmission distance	standard 10km
Other	Power supply	The power adapter: DC 5V/2A
	Power dissipation	MAX 6W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	15511530mm
	The warranty	1 year free warranty
