Model:EOHD-01002
Input:HDMI, Audio, Optical
Output:HDMI, Audio, Optical
Main Features:
Compliance with HMDI 1.3 and HDCP 1.2 standard
High compatibility, can auto-match source and display device
Data Download

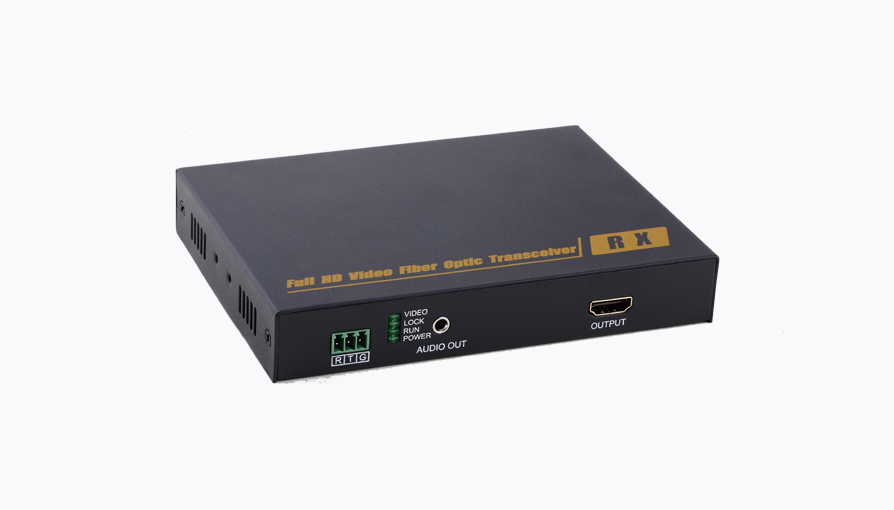

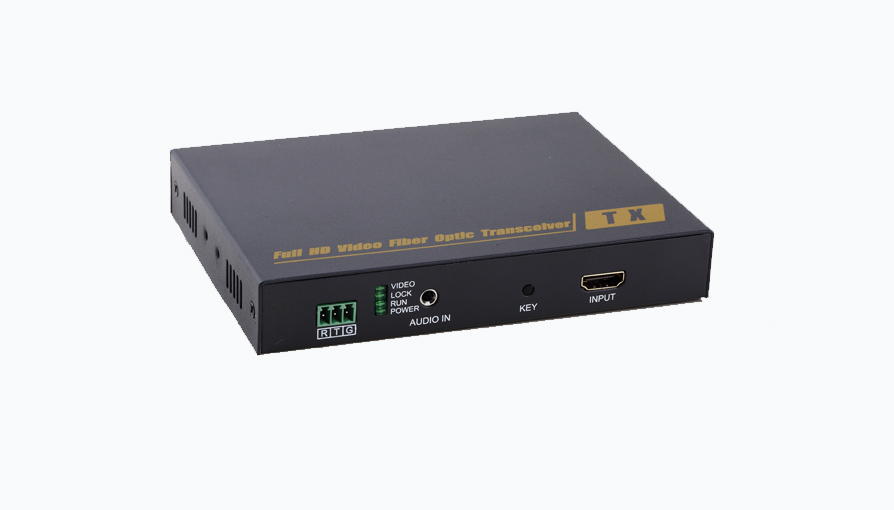

Pint This PageThe EOHD-01002 Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, RS232 signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features:
-Transmits HDMI video signals up to 10km over one fiber optic cable;
-Support video resolution up to 1920*1080P@60Hz;
-Support external stereo audio unidirectional transmission;
-Support RS232 signal unidirectional transmission, baud rate self-adaptive;
-Compliance with HMDI 1.3 and HDCP 1.2 standard;
-High compatibility, can auto-match source and display device;
-Built-in automatic adjustment system, make the image smooth, clear and stable;
-Built-in ESD protection system;
-Simple to install, plug and play;
Specification:
|
Parameter |
Description |
|
|
Video |
Standards |
HDMI 1.3; HDCP 1.2 |
|
|
Maximum pixel clock |
165MHz |
|
|
Maximum data rate |
6.75Gbps |
|
|
Resolution |
1920*1080@60Hz 1920*1080@50Hz 1920*1080@30Hz 1920*1080@25Hz 1920*1080@24Hz 1080I@60Hz 1080I@50Hz 1280*720@60Hz 1280*720@50Hz |
|
|
Connector |
Female HDMI type A |
|
|
Impedance |
100Ω |
|
Audio |
Interface |
3.5mm earphone seat |
|
|
Signal type |
Stereo |
|
RS232 |
Interface |
Industrial terminal |
|
|
Signal direction |
Unidirectional |
|
|
Baud rate |
Self-adaptive, Max：115200bps |
|
|
Data bits |
8 |
|
Optical fiber |
Interface |
LC connector |
|
|
Fiber type |
Single-mode single fiber |
|
|
Wavelength |
Single-mode 1310nm |
|
|
Interface bandwidth |
2.97Gbps |
|
|
Transmission distance |
standard 10km |
|
Other |
Power supply |
The power adapter: DC 5V/2A |
|
|
Power dissipation |
MAX 6W |
|
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
136*130*30mm |
|
|
The warranty |
1 year free warranty |
