Model:EOHS-01001
Input:HDMI, Audio, RS232, Optical
Output:HDMI, Audio, RS232, Optical
Main Features:
Compliance with HMDI 1.3 and HDCP 1.2 standard;
Support copy EDID, can match many kind display device
Support video resolution up to 1920*1080P@60Hz
Data Download

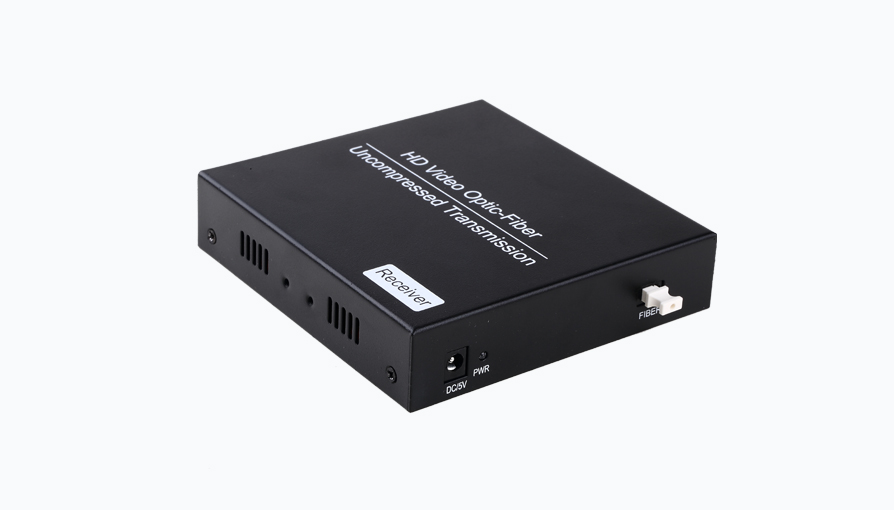

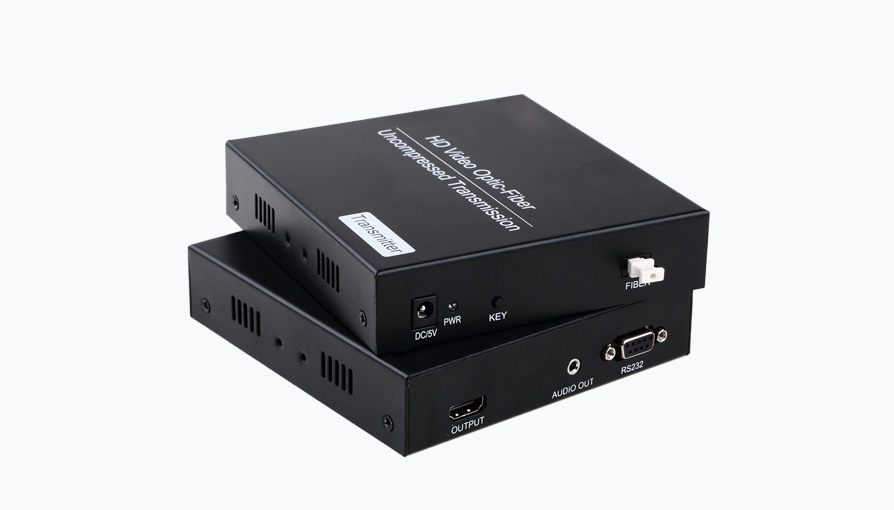

Pint This PageThe EOHS-01001 Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, EDID copy, RS232 signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features:
-Transmits HDMI video signals up to 10km over one fiber optic cable;
-Support video resolution up to 1920*1080P@60Hz;
-Support copy EDID, can match many kind display device;
-Support external stereo audio unidirectional transmission;
-Support RS232 signal unidirectional transmission, baud rate self-adaptive;
-Compliance with HMDI 1.3 and HDCP 1.2 standard;
-High compatibility, can auto-match source and display device;
-Built-in automatic adjustment system, make the image smooth, clear and stable;
-Built-in ESD protection system;
-Simple to install, plug and play;
Specifications:
|
Parameter |
Description |
|
|
Video |
Standards |
HDMI 1.3; HDCP 1.2 |
|
Maximum pixel clock |
165MHz |
|
|
Maximum data rate |
6.75Gbps |
|
|
Resolution range |
Up to 1920X1080@60Hz |
|
|
Connector |
Female HDMI type A |
|
|
Impedance |
100Ω |
|
|
Audio |
Interface |
3.5mm earphone seat |
|
Signal type |
Stereo |
|
|
RS232 |
Interface |
DB9 socket |
|
Signal direction |
Unidirectional |
|
|
Baud rate |
Self-adaptive, Max：115200bps |
|
|
Data bits |
8 |
|
|
Optical fiber |
Interface |
LC connector |
|
Fiber type |
Single-mode single fiber |
|
|
Wavelength |
Single-mode 1310nm |
|
|
Interface bandwidth |
6.25Gbps |
|
|
Transmission distance |
standard 10km |
|
|
Other |
Power supply |
The power adapter: DC 5V/2A |
|
Power dissipation |
MAX 6W |
|
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
136*130*30mm |
|
|
The warranty |
1 year free warranty, |
|
