Model:SWTH-04012 Input:4*HDMI
Output:1*HDMI



Main Features:
HDMI 1.4 compliant Support 4K*2K, 3D, 1080P



Data Download Pint This Page

Details

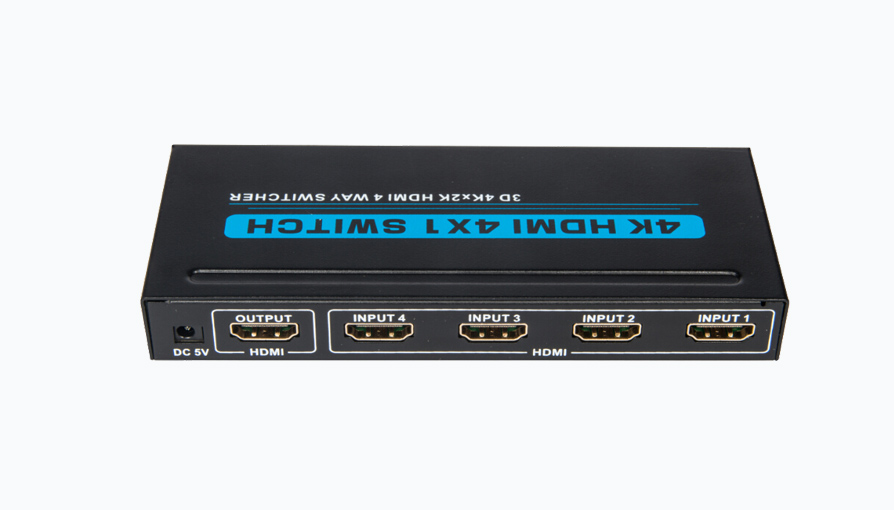

This 4x1 HDMI switcher can connect to four 4K HDMI sources to manually switch on one HDMI input device.


FEATURES
1、 Switching is done via itself automatically when signal present on the ports.
2、 Support HDCP protocol and applicable to source device and high definition display device such as DVD and HDTV which have

      HDMI ports or digital ports, and are compliant with HDCP protocol.
3、 Support high resolutions up to 1920*1200,including 480i/p,576p,720i/p,1080i/p and 2160p.
4、 Support HDMI1.4
5、 Extend the transmission distance and improve transmission signal.
6、 Compatible with DVI by using HDMI TO DVI adapter.
7、 Plug-and-play.
8、 Convenient to connect multi-group input signals to display on one HDTV.
9、 Save space. Allow several sources to use one high definition display device simultaneously.
10、 Metal casing design and overall shielding without signal interference.
11、 Select input port by hand freely.

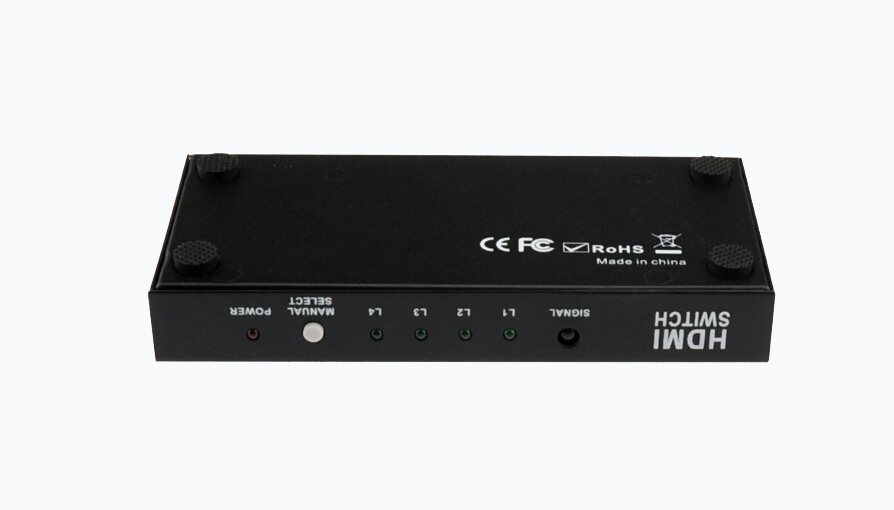

12、 LED indicates signal and power mode.
13、 Power supply(Please refer to technical parameter)


TECHNICAL PARAMETER IN DETAIL

Product

4X1 HDMI SWITCH

HDMI Source Input Port

4

Display Device Output Port

1

Source Port Connector

19 PIN HDMI(A TYPE)

Display Device Port Connector

19 PIN HDMI(A TYPE)

HDCP Compliant

YES

Source Device Selection

Push Button IR Remote Control

Input Video Signal

0.5-1.0 Volts P-P

Input DDC signal

5 Volts P-P(TTL)

Deep Color

48bit

Single Link Range

3840*2160

HDMI Version

HDMI1.4

Bandwidth

Up to 340Mhz

Signal Speed

Up to 10.2Gbps

The length of input cable

PS310MBLUE DVD10M

The length of output cable

10M

The cable standard

28AWG HDMI1.4

Vertical Frequency Range

30Hz

Power Consumption(max)

1.5 Watts

Operation Temperature

0℃ TO 70

Working Voltage

DC 5V

Power Adaptor

5V 1A

Net Weight

280g

Dimension: L×W×Hmm

140.5×63.7×20
