Model:SWTH-04017 Input:HDMI*4
Output:HDMI*1



Main Features:
HDMI 2.0 4K*2K@60Hz HDCP 2.0 compliant Signal speed upto 18Gbps Pint This Page

Details

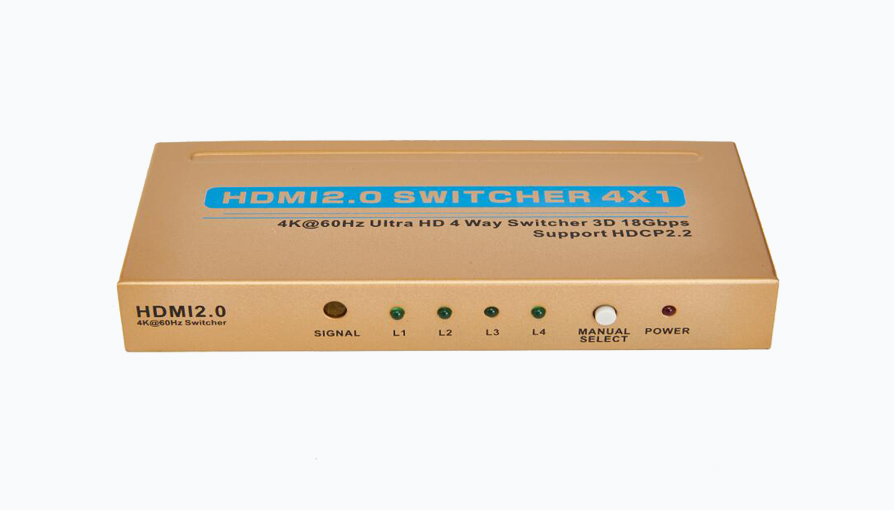

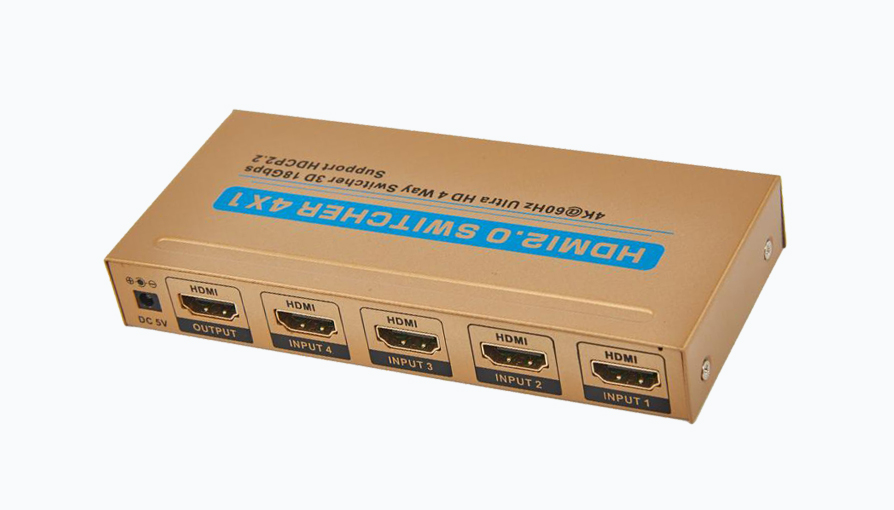

This 4X1 HDMI 2.0 switch can support the latest HDMI 2.0 (4K*2K@60Hz) and HDCP 2.2 contents available for four HDMI sources switching display on one HDMI sink simultaneously, it support both manual control on unit and also remote control.

FEATURES
1. Switching is done via itself automatically when signal present on the ports.
2. Support HDCP2.2 protocol and applicable to source device and high
  definition display device such as DVD and HDTV which have HDMI ports or
  digital ports,and are compliant with HDCP protocol.
3. Support high resolutions up to 480i/p,576p,720i/p,1080i/p,4Kx2K@60Hz.
4. Support HDMI2.0
5. Extend the transmission distance and improve transmission signal.
6. Compatible with DVI by using HDMI TO DVI adapter.
7. Plug-and-play.
8. Convenient to connect multi-group input signals to display on one HDTV.
9. Save space. Allow several sources to use one high definition display device
   simultaneously.
10.Metal casing design and overall shielding without signal interference.
11.Select input port by hand freely.
12.LED indicates signal and power mode.
13.Power supply(Please refer to technical parameter)

PACKAGING ACCESSORIES
HDMI 3x1 switcher-------------------------------------------1Piece
5V DC Power Adaptor--------------------------1Piece(Optional)
User Manual---------------------------------------------------1Piece
RemoteControl-----------------------------------1Piece(Optional)
