It offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

FEATURES

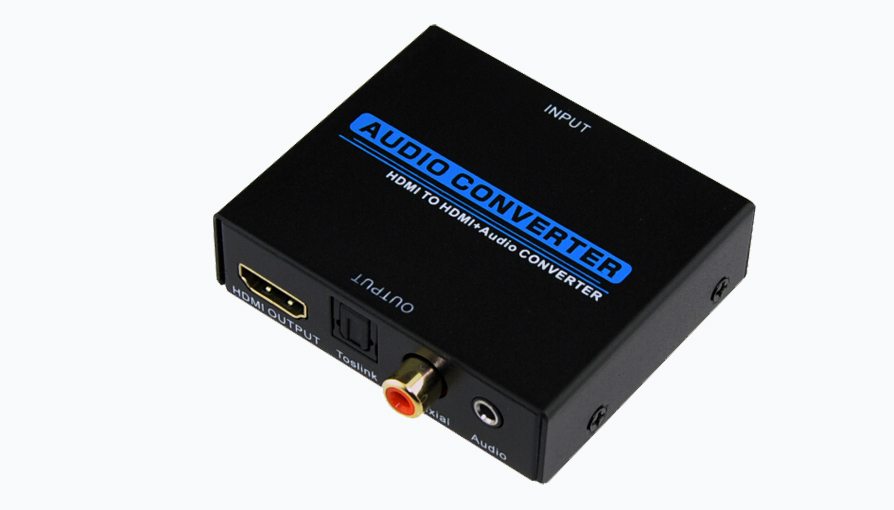

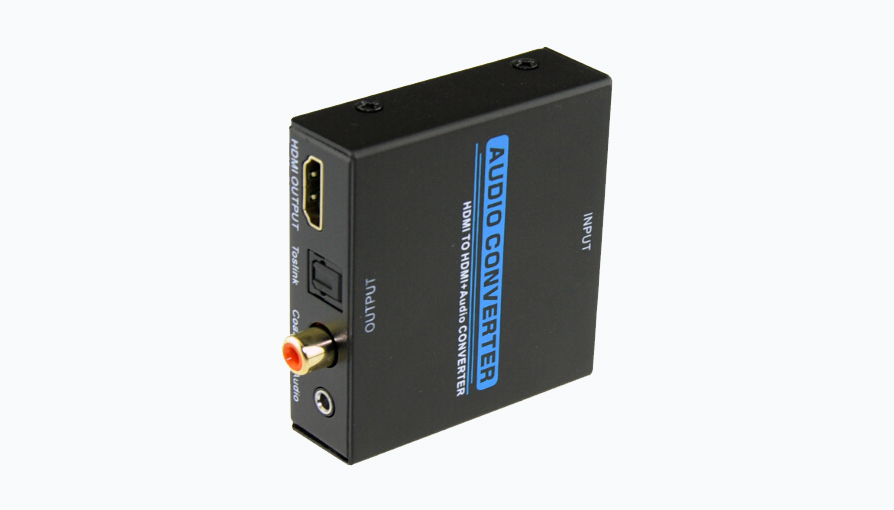

1.One HDMI input converted to one HDMI+ Audio (SPDIF+3.5(L/R)+COAXIAL) output;

2. Output audio support: SPDIF+COAXIAL+ 3.5(L/R) analog Audio Output;

3. Input Resolution: up to 1080P(50/60Hz);

4. HDMI to achieve the synchronization of audio signal separation;

   Automatic identification 2.0CH / 5.1CH Two kinds of audio mode options;

5.LED indication: when source or sink is working, LED relative to is light;

6.No loss of signal quality;

7.Installs in minutes;

8.Need DC 5V/1A power supply.

SPECIFICATIONS:

HDMI resolution.…………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support video color format …………………….…..24bit/deep color 30bit,36bit

Audio output……………….......................SPDIF+ COAXIAL +3.5 stereo /L/R)

Max bandwidth………………………….…………….………………...….225MHz

Max baud rate…………………….………….………….……………......6.75Gbps

Input/Output TMDS signal ………….…………………......0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ……………………...……….………… 5Volts p-p (TTL)

Input cable distance………………………………………………....≤15m 26AWG

Output cable distance…….......................≤20m 24AWG HDMI standard cable

Max working current………………………………………………….………500mA

Power adapter……...............Input:AC(50/60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range……………………………………… (-15 to +55℃)

Operating Humidity range………………………….….……....….5 to 90%RH (No Condensation)Dimension (L x W x H)……………...............70.5X60.5X20 (mm)

Weight…………………………………………………………………………….150g

PACKAGE CONTENTS

Before attempting to use this unit. please check the packing and make sure the following items are contained in the shiping carton:

1、Main unit----------------------------------1Pcs

2、User´s Manual---------------------------1Pcs

3、5V DC Power Supply------------------1Pcs
