Model:CNTR-01072 Input:1*HDMI
Output:1*Toslink, 1*Coaxial, 1*Stereo



Main Features:
HDMI 2.0/HDCP 2.2 YUV 4:4:4 ARC Pint This Page

Details

1.0 INTRODUCTION

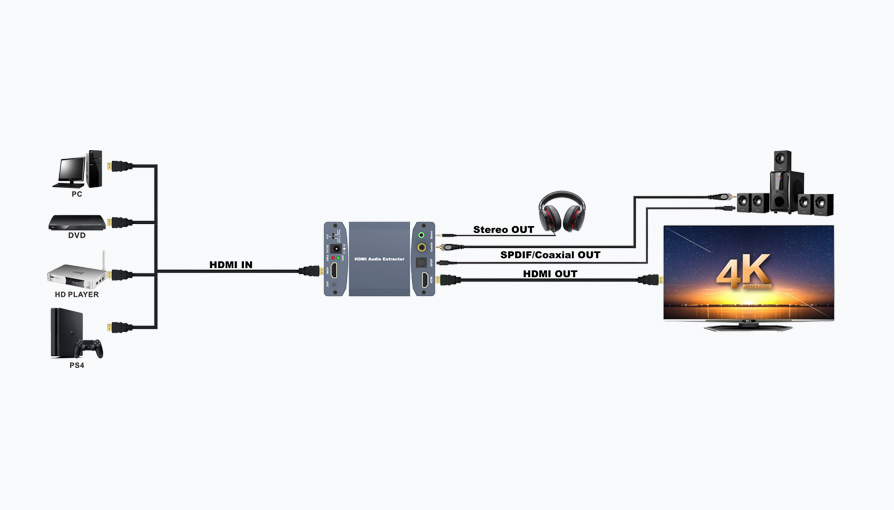

The converter allows the HD Source connected to single HD Display and adds extra one 3.5 Stereo and SPDIF/Coaxial audio out port.

It offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.


2.0 FEATURES

1.Plug and play, Installs in minutes;

2.Support the HDCP2.2 protocol, Support for HDMI2.0;

3.Support HDR 18Gbps YUV4:4:4;

4.One HDMI input converted to one HDMI+ Audio

(SPDIF+3.5(Stereo)+Coaxial) output;

5.Input/Output Resolution: up to 4Kx2K(60Hz);

6.HDMI to achieve the synchronization of audio signal separation;

7.Support select 2.0CH/5.1CH/by pass audio mode options;


3.0 PACKAGE CONTENTS

Before attempting to use this unit. please check the packing and make sure the following items are contained in the shipping carton:

1.Main unit----------------------------------1Pcs

2.User´s Manual---------------------------1Pcs

3.5V DC Power Supply------------------1Pcs


4.0 SPECIFICATIONS:

HDMI resolution-------------------------480i/p,576i/p,720p,1080i/p,4Kx2K@60Hz

Support video color format-------------------------------24bit/36bit/48bit deep color

Audio output------------------------------------------------SPDIF+Coaxial+3.5 Stereo)

Max bandwidth-----------------------------------------------------------------------600MHz

Max baud rate-------------------------------------------------------------------------18Gbps

Input/Output TMDS signal---------------------------------------0.5~1.5Volts p-p(TTL)

Input/Output DDC signal------------------------------------------------5Volts p-p (TTL)

Input cable distance--------------------------------------------------------10m 28AWG

Output cable distance ------------------------10m 28AWG HDMI standard cable

Max working current------------------------------------------------------------------500mA

Power adapter ----------------Input: AC(50/60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range-------------------------------------------- (-15 to +55)

Operating Humidity range----------------------5 to 90%RH (No no Condensation)

Dimension (L x W x H)---------------------------------------------73X60.5X22.5 (mm)

Weight---------------------------------------
