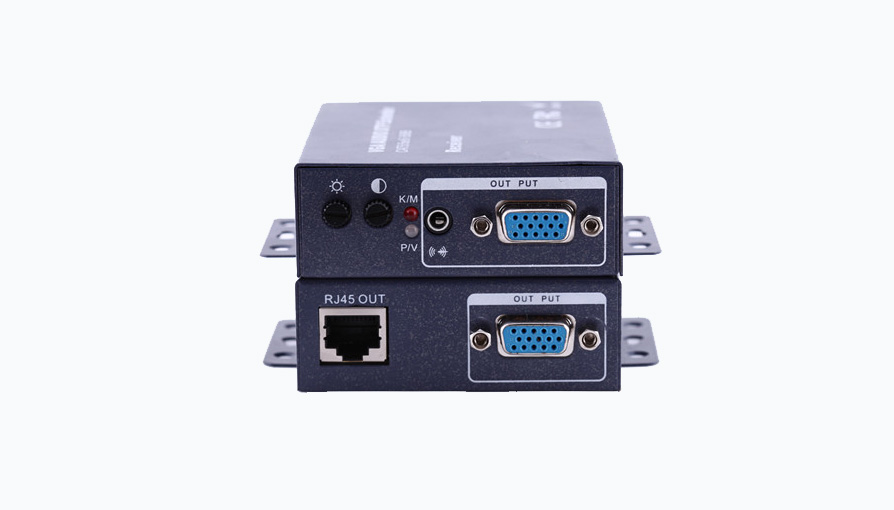

Model:ECVS-10021 Input:VGA*1, Audio*1
Output:VGA*1, Audio*1, Audio loopout*1,VGA loopout*1



Main Features:
Local Audio and VGA Lightning and ESD surge protection Brightness and Contrast adjustable



Data Download Pint This Page

Details

ECVS-10021 transmits VGA video up to 1200 feet (100m) away from a computer using CAT5/5e/6 cable. Each video audio extender consists of a local unit that connects to a computer and also supplies video and audio to a local monitor, and a remote unit that connects to a monitor.


Features:

· Ideal solution for digital signage applications.

· Supports local and remote VGA monitors.

· Supports resolutions to 1920x1440.

· Sharpest and clearest VGA quality over CAT5/UTP-STP cable of any manufacturer.

· Built-in lightning and ESD surge protection.

· Use in-house CAT5/5e/6 phone wiring to locate a monitor remotely.

· Optional VESA mounting bracket is available for mounting the remote unit to the back of a flat panel monitor.

Specification

· Local Unit

Host Connection

Multiplatform support: Windows 2000/XP/Vista/Windows7/Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.

Male/Female 15-pin HD connector for computer connection.

Optional stereo audio support - 3.5mm stereo plug.

Local Access

Crisp and clear 1920x1440 video resolution.

Female 15-pin HD connector for local VGA monitor.

Optional stereo audio support - 3.5mm stereo jack.

· Remote Unit

Supports resolutions up to 1920x1440; refer to the resolution chart below for resolutions at different lengths.

Female 15-pin HD connector.

Optional 3.5mm stereo audio connection.

· Video Quality Adjustment

Video quality adjustment for different lengths of CAT5/5e/6 cable is done manually for the video-only extender, and automatically for audio/video extender.

Test Pattern for Cable Length

· Environmental

Operating temperature: 32°F to 100°F (0°C to 38°C).

Storage temperature: -20°F to 140°F (-30°C to 60°C).

Operating and Storage Relative Humidity: 17 - 90% non-condensing RH.

· Dimensions

WxDxH (mm): 95*97*28mm(Sender)

           95*97*28mm(Receiver)

Weight(g):0.9KG

· Power

220 or 110 VAC at 50 or 60 Hz via AC adapter (Included).

Power Consumption: 6W (each - local and remote unit).

Use the PWR-48V-9V0,6A or PWR-12V-9V0,6A DC DC power converter to install the local unit in a Telecom environment.
