Current Position: Home >Products>VGA Extender> VGA Over Cat 5

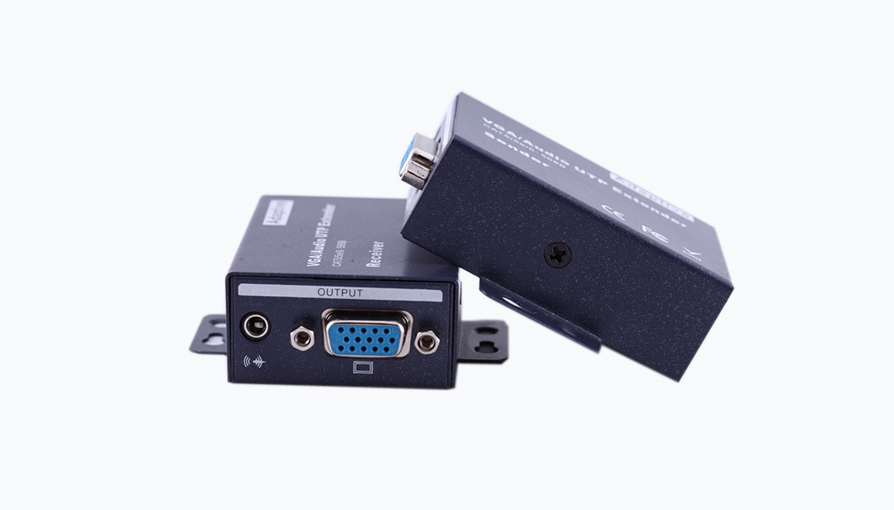

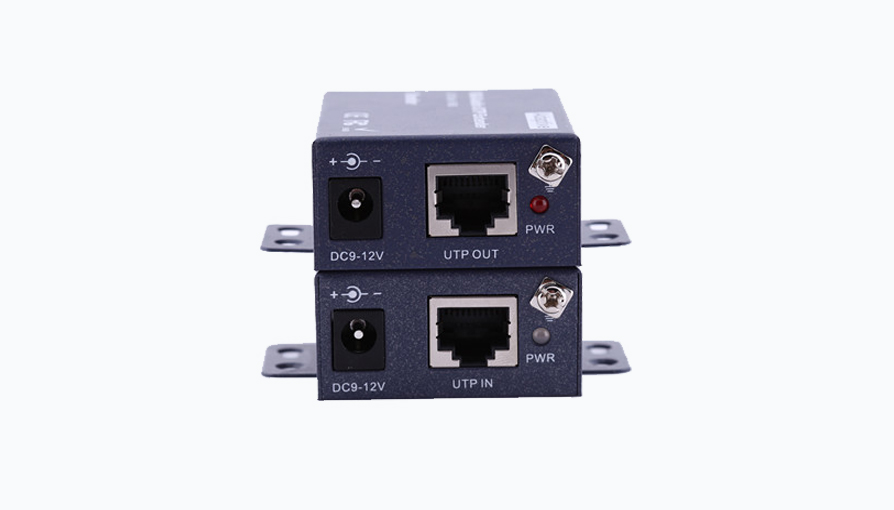

Model:ECVS-10011 Input:VGA*1, Audio*1
Output:VGA*1, Audio*1



Main Features:
1080P Supported. Lightning protection engineering. Plug and play.



Data Download Pint This Page

Details
ECVS-10011 is designed to use a CAT 5/5e/6 cable to extend VGA video signal and analog audio signal up to 100 meters far away. Using automatic controlling technology and dispersion intelligent eliminating circuit, which makes it breaks through traditional limitation of manual adjusting, easy installation, no signal attenuation, without signal delay.


Features:

1, Max resolution support 1920*1080 @ 60Hz
2, Support VGA,  and Audio signal transmission at distance of 100 meters
3, Single cat5e transmission, pure hardware design, no need any software driver. Plug and play, no need to any settings
4. Adopting a standard of IEC61000-4-2 Level 3 lightning-protection engineering.

Specification:

Function

Input Signal

Transmitter:VGA*1, Audio*1

Output Signal

Receiver: VGA*1, Audio*1

Extension Distance

100M

Video

Video Input

VGA Female (HD15PIN)

Video Output

VGA Female (HD15PIN)

Video Signal Bandwidth

350MHz @ -3dB

Synchronized Signal

>200KHz

Video Resolution

1080P

Audio

Interface

3.5mm stereo audio jack

Bandwidth

10HZ~20KHZ

RS232

Type

DB-9（male）

Connection

RJ45 (EIA/TIA-568B)

Cat5e/Cat6/Cat7

Physical Parameter

Unit Size

64*45*23MM (sigle)

Net Weight

0.70kgs

Power Supply

Voltage

9V or 12V, 500mA

Power Consumption

10W

POE/POC

N/A

Environment

Working temperature

-15℃-55℃

Storage temperature

-40-80℃

Humidity

0-95% (Non-condensing)

Packing List

Main Unit

1 sets

Accessories

Manual*1, VGA Cable*1, AC/DC Adapter*2, AV cable*1
