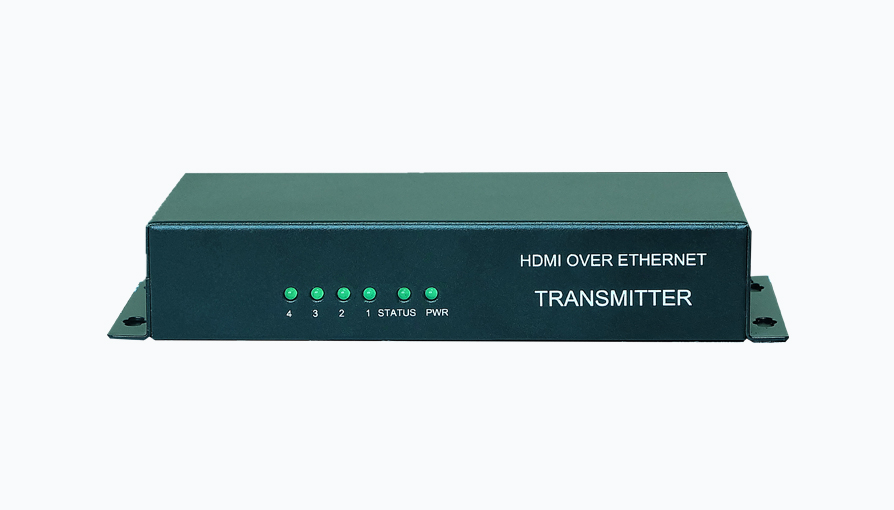

Current Position: Home >Products>HDMI Splitter> 1X4 Splitter Over Ethernet

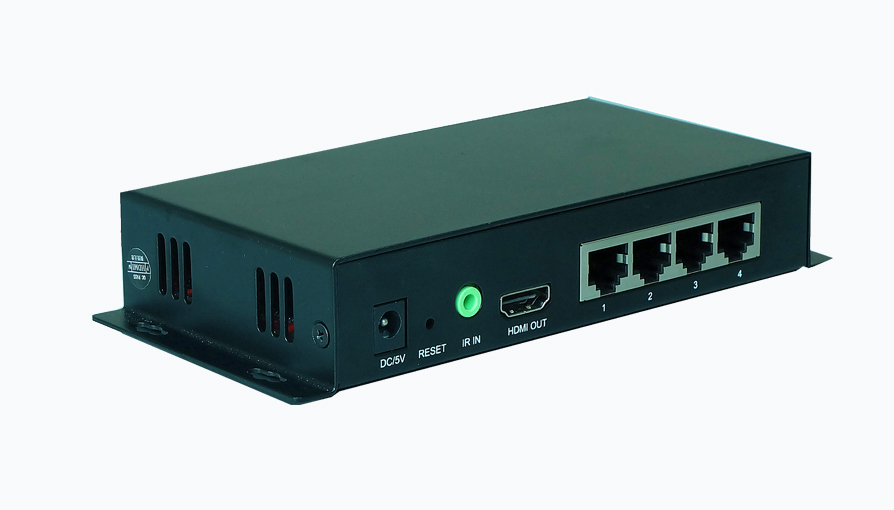

Model:SPLH-0104E100 Input:HDMI*1, RJ45*4
Output:HDMI*1,RJ45*4



Main Features:
Support Local HDMI output Super IR control from receiver side Support one to one and one to many, cascade Pint This Page

Details

The 1x4 HDMI splitter enable to extend HDMI signals out to 4 ports far to 100M display, it also support one to many and cascade extension.


Features:

> Support HDMI 1.3/HDCP1.1 & 1.2

> Support point-to-point, point-to-multi point transmission and cascaded

> Ethernet standards with international standards

> Support interlaced and progressive display mode

>  Support IR extend, you can control the set-top box or Blu-ray receiving site with an infrared remote control transmitter

> Pure hardware design, plug and play, no need to install additional software


Specifications:

Video Resolution Support

640X480 @ 60fps    800X600 @ 60fps

1024X600 @ 60fps   1024X768 @ 60fps

1152X864 @ 60fps   1280X600 @ 60fps

1280X720@ 60fps    1280X768@ 60fps

1280X800@ 60fps    1280X960@ 60fps

1280X1024@ 60fps   1440X1050@ 60fps

1440x900 @ 60fps   1600x900 @ 60fps

1660x1200 @ 60fps  1680x1050 @ 60fps

1920x1080 @ 60fps  1920 x1200 @ 60fps

Sound

Sampling Rate：32kHz, 44.1kHz and 48kHz

IR Support

38KHz; NEC code

HDMI version

HDMI 1.3

HDCP Version

HDCP 1.2

Power Input

DC input: 5V/2A

Maximum power consumption

Transmitter: 10W

Receiver: 10W

 Dimensions (length - width - height)

167mm*80mm*28mm

Physical NW

770g

Operating temperature / humidity

0℃  - 70℃  / 10% - 80%RH(Not frozen)

Storage temperature / humidity

-10℃  - 80℃/ 5% -90% RH(Not frozen)
