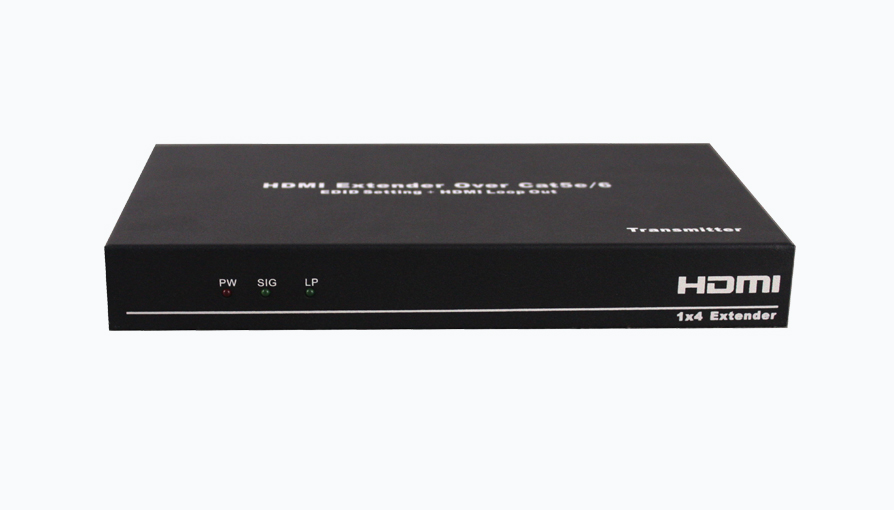

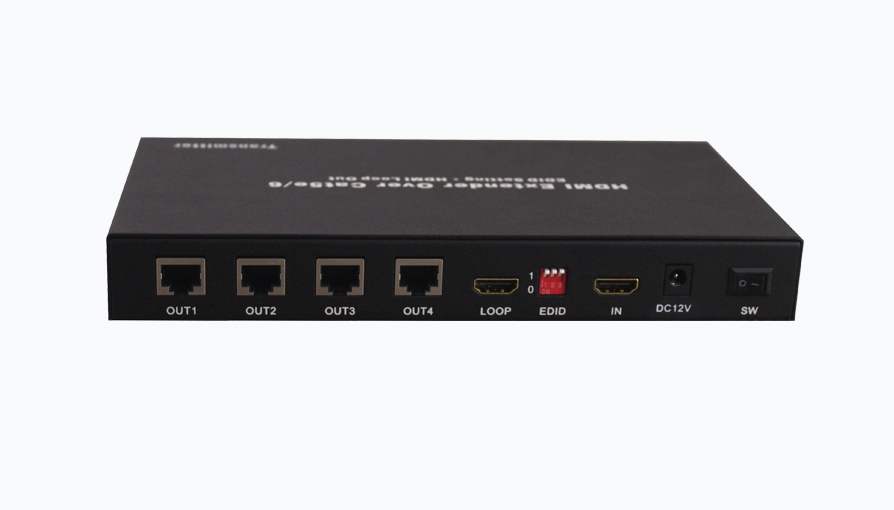

Current Position: Home >Products>HDMI Splitter> 1X4 Splitter Over Ethernet

Model:SPLH-0104E50 Input:HDMI*1,RJ45*4
Output:HDMI*1,RJ45*4



Main Features:
HDCP 1.2 protocol compliant Study EDID function，Support 3D Support HDMI local output. Pint This Page

Details

1、 FEATURES

Ø One HDMI input distribute and extend to found Display by four cat6/7 cable. The extend distance can be up to 60m.

Ø Support HDMI 1.3 protocol

Ø HDCP 1.2 protocol compliant

Ø Study EDID function，Support 3D

Ø Support HDMI local output.

Ø Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Ø Signal transmission: Single cat5e or cat6(recommended) cable up to 60 meters

Ø Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Ø Audio format support : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD.

Ø Support up to 5metres AWG26 cable length between extender and source & sink device

Ø No loss of quality


3、SPECIFICATIONS

Every port Length of  CAT6

cable between Rx and TX

Up to 60 metres

HDMI Input

24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio format input

DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

HDMI Output

24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio format output

DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max transmission bandwidth

6.75Gbps

Input Video signal

 0.5~1.5Volts p-p

Output DDC signal

5Volts p-p (TTL)

Input/Output HDMI1.3 cable distance

.≤20m AWG26 HDMI 1.3 standard cable

Max working current

400mA

Power adapter format

Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1 A

Operating Temperature range

 (-15 to +55℃)

Operating Humidity range

5 to 90%RH (No Condensation)

Dimension TX (L x W x H)

320*120*30mm

Dimension RX (L x W x H)

82*69*25mm*4

Gross weight

0.7kg*4

Box Dimension(L*W*H)
