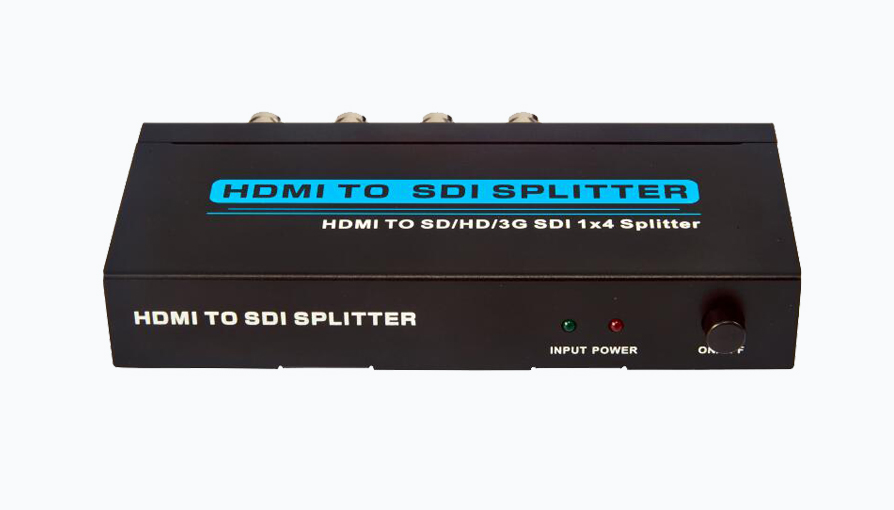

Model:SPLS-01041
Input:HDMI*1
Output:SDI*4
Main Features:
One HDMI input,four SDI output
Input resolution upto 1080P
Pint This Page
Details
Features

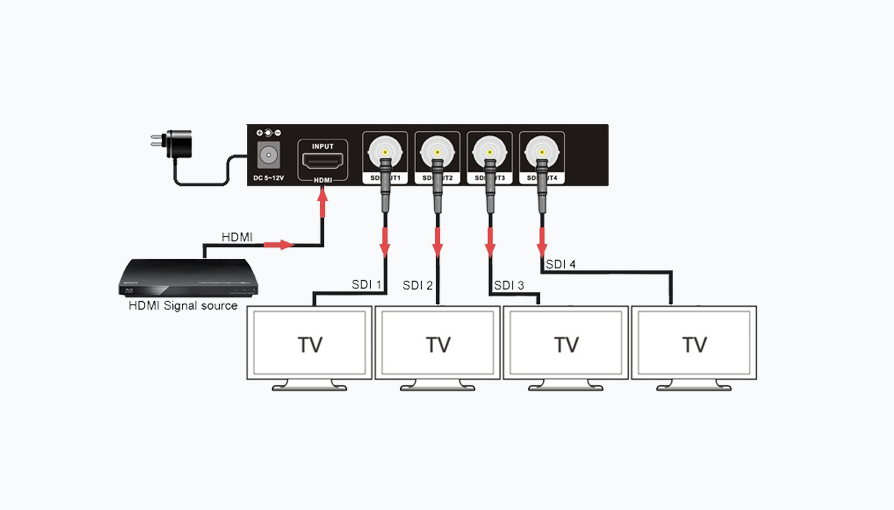

- Distributes one HDMI source to four 3G-SDI output devices without latency
- Backwards-compatible with SDI and HD-SDI formats
- Supports input resolutions up to 1920 x 1080p/60
- Supports NTSC, PAL, & and all HD formats up to 1080p
- Plug-and-Play installation
Specifications
- Input / Output formats:
- - SDI (SMTP 259M) up to 360Mbps
- - HD-SDI (SMTP 292M) up to 1.485Gbps
- - 3G-SDI (SMTP 424M/425M) up to 3.0Gbps
- Video Input Connector: (1) BNC, female
- Video Output Connectors: (4) BNC, female
-
Power Supply: 5V DC
- Power Consumption: 10W (max.)
