Current Position: Home >Products>Splitter Series> SDI Splitter

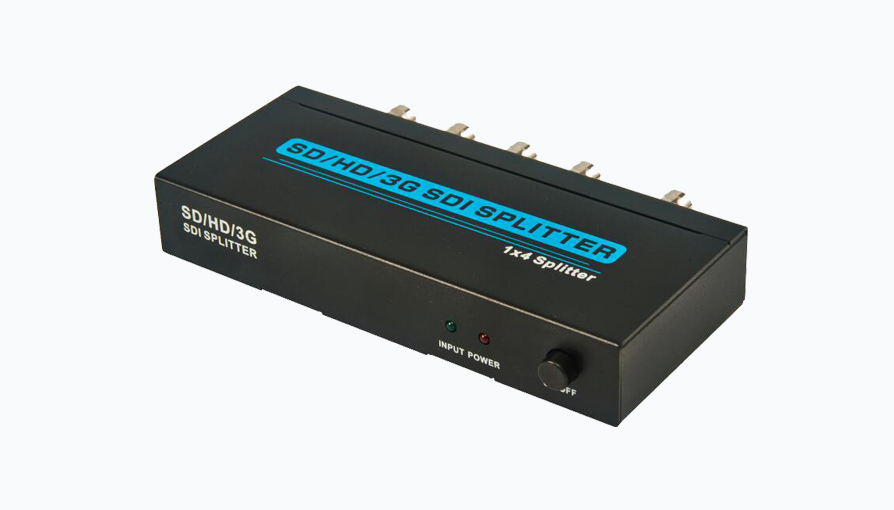

Model:SPLS-01040 Input:SDI*1
Output:SDI*4



Main Features:
- SDI (SMTP 259M) up to 360Mbps - HD-SDI (SMTP 292M) up to 1.485Gbps - 3G-SDI (SMTP 424M/425M) up to 3.0Gbps Pint This Page

Details
Features

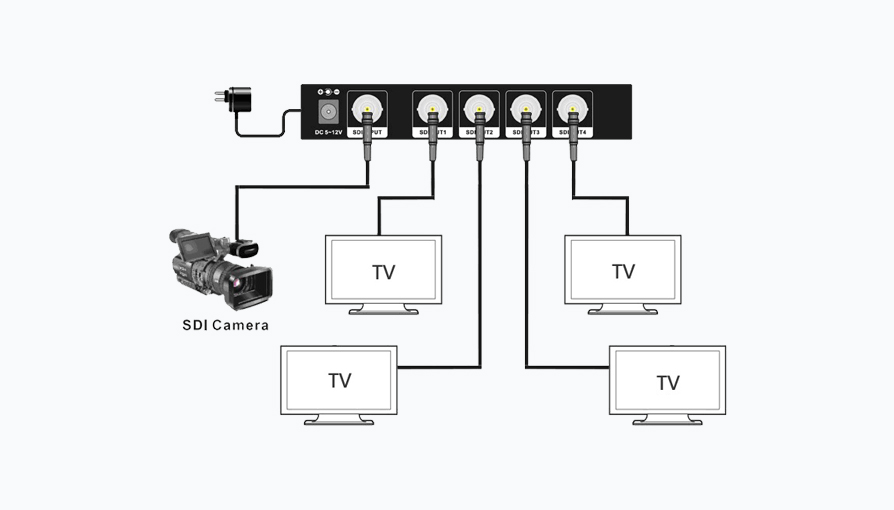

  • Distributes one 3G-SDI source to four 3G-SDI output devices without latency
  • Backwards-compatible with SDI and HD-SDI formats
  • Supports resolutions up to 2048 x 1080/24 (2K) and 1920 x 1080p/60
  • Supports NTSC, PAL, & and all HD formats up to 1080p
  • Plug-and-Play installation
Specifications
  • Input / Output formats:
  • - SDI (SMTP 259M) up to 360Mbps
  • - HD-SDI (SMTP 292M) up to 1.485Gbps
  • - 3G-SDI (SMTP 424M/425M) up to 3.0Gbps
  • Video Input Connector: (1) BNC, female
  • Video Output Connectors: (4) BNC, female
  • Power Supply: 5V DC
  • Power Consumption: 10W (max.)
