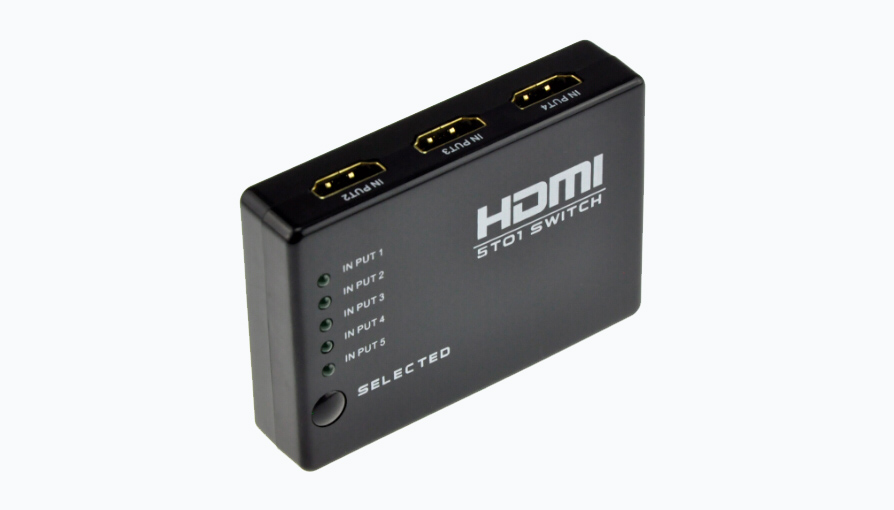

Current Position: Home >Products>HDMI Switch> 5x1 HDMI Switcher

Model:SWTH-05013 Input:5*HDMI
Output:1*HDMI



Main Features:
Support 1080P, 3D HDMI 1.3 compliant



Data Download Pint This Page

Details

Allow five HDMI sources to manually switch on one HDMI input device.



FEATURES
This MiNi HDMI Amplifier Switcher has many features that enable it to perform in a superior manner. Among those features you will find:
1、Support 12-bit Deep Color, full 1080p
2、Support 3D
3、Multifunctional on switching : intelligent or mechanical
4、Supports with HDMI1.3b
5、High performance up to 2.5Gbps
6、Supports 25Meters HDMI Cable on both ends of the Switcher
7、Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, 1440p graphics and computer resolutions up to 1920 x 1200 are easily achieved
8、The product has another advantage, infrared function for learning. The customer can use this by setting the remote control simply at home. This is the first model of amputator which has learning function.


SPECIFICATIONS

Signal Inputs/Output



Input Video Signal

0.5-1.0 volts p-p

Input DDC Signal

5 volts p-p (TTL)

Maximum Single Link Range

1920X1200, 1080P

Output Video

HDMI1.3b+HDCP1.0/1.1

Video format supported



VGA

640x480,800x600,1024x768,1920x1200

DTV/HDTV

480i/576i/480p/576p/720p/1080i/1080P

Digital Signal I/O



HDMI Compliance

HDMI 1.3b

Operating Frequency

50/60Hz

Frequency



Vertical Frequency Range

60Hz

Video Amplifier Bandwidth

2.5Gpbs/250MHz

Resolutions(HDTV)



Interlaced(50&60Hz)

480i,576i,1080i

Progressive(50&60Hz)

480p,576p,720p,1080p

Mechanical



Size(H-W-D)

 80*58*17mm

Weight(Net)

 90g

Warranty



Limited Warranty

1 Year Parts and Labor

Environmental



Operating Temperature

0℃to +70℃

Operating Humidity

10% to 85 % RH (no condensation)

Storage Temperature

-10℃to +80℃

Storage Humidity

5% to 90 % RH (no condensation)

Accessories Adapter



User Manual

English Version
