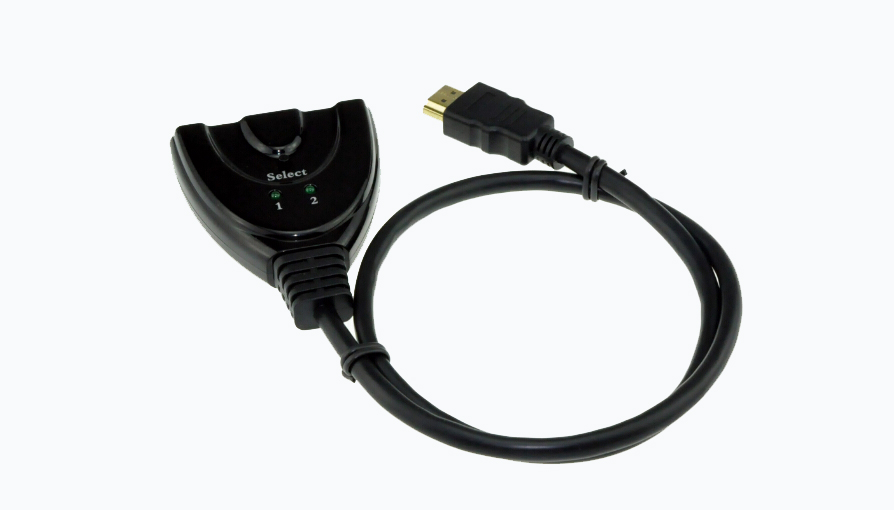

Current Position: Home >Products>HDMI Switch> 2x1 HDMI Switcher

Model:SWTH-02013 Input:2*HDMI
Output:1*HDMI



Main Features:
HDMI 1.3 compliant Support 1080P and 3D No power supply required



Data Download Pint This Page

Details

SWTH-02013 is designed to make two HDMI sources to share on one HDMI input devices by switching the input selection.


Features
This HDMI Amplifier Auto Switcher has many features that enable it to perform in a superior manner. Among those features you will find:
1、Support 12-bit Deep Color, full 1080p
2、Support 3D display device.
3、Support HDCP
4、Multifunctional on switching : automatic or mechanical
5、Supports with HDMI1.3b.
6、High performance up to 2.5Gbps
7、Supports 15Meters HDMI Cable on both ends of the Switcher
8、Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 1440p graphics and computer resolutions up to 1920 x 1200 are easily achieved.
9、Controlled by Button, no power needed.



TECHNICAL PARAMETER IN DETAIL

Signal Inputs/Output

HDMI

Input Video Signal

0.5-1.0 volts p-p

Input DDC Signal

5 volts p-p (TTL)

Maximum Single Link Range

1920X1200, 1080P

Output Video

HDMI1.3b+HDCP1.0/1.1 DVI1.0

VGA

640x480,800x600,1024x768,1920x1200

DTV/HDTV

480i/576i/480p/576p/720p/1080i/1080P，3D

HDMI Compliance

HDMI 1.3b

Frequency

Up to225MHz

Vertical Frequency Range

60Hz

Video Amplifier Bandwidth

2.5Gpbs/225MHz

Resolutions(HDTV)

HDMI SWITCH

Interlaced(50&60Hz)

480i,576i,1080i

Progressive(50&60Hz)

480p,576p,720p,1080p

Limited Warranty

1 Year Parts and Labor

Operating Temperature

0℃to +70℃

Operating Humidity

10% to 85 % RH (no condensation)

Ioutput Cable Length

60CM

Storage Temperature

-10℃to +80℃

Storage Humidity

5% to 90 % RH (no condensation)

Power Requirement

No power needed

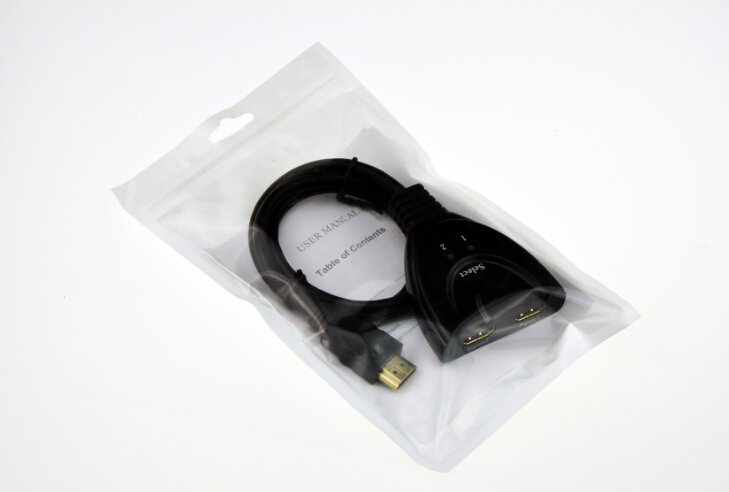

Accessories Adapter

User Manual

English Version
