Current Position: Home >Products>Audio Converters> Analog to Digital Converter

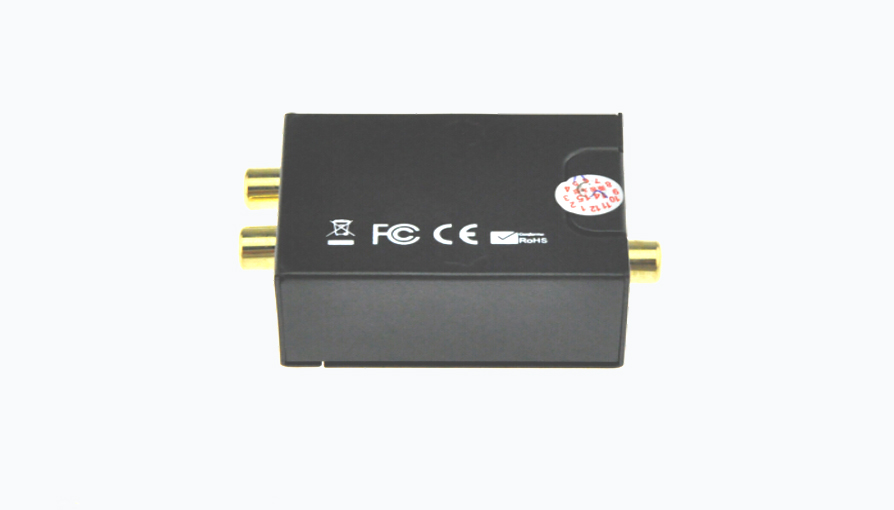

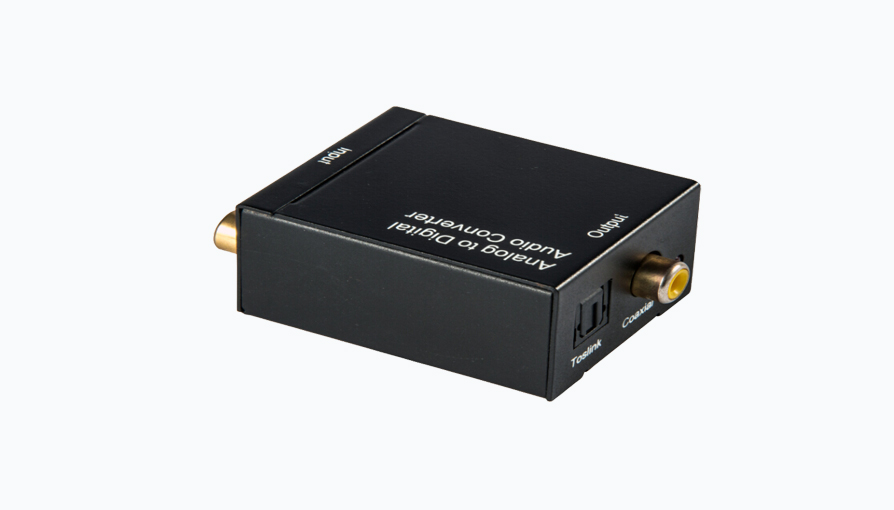

Model:CNTR-07011 Input:1*L/R Audio
Output:1*Toslink, 1*Coax



Main Features:
Uncompressed audio output Electromagnetic-noise-free transmission



Data Download Pint This Page

Details

CNTR-07011 is designed for either home or professional audio switching. It converts analog stereo audio signal from R/L input to Coaxial and Toslink outputs simultaneously. The output digital audio signal is 2-channel uncompressed LPCM (Linear Pulse Code Modulation) with sampling rate at 48 KHz. This Converter is small in size and quite easy to install.



Features

This Converter has many features that enable it to perform in a superior manner. Among those features you will find:

1、Supports uncompressed 2-channel LPCM digital audio signal output.

2、Supports output sampling rate at 48 KHz.

3、Provides electromagnetic-noise-free transmission.

4、Easy to install and simple to operate.


SPECIFICATIONS

Signal Inputs/Output

Input Audio

Stereo R/L

Output Audio

LPCM

Connector

Input audio connector

2XRCA（R/L）

Output audio connector

Toslink、1XRCA(Coaxial)

Audio Connector

Toslink Audio and Digital Audio

Operating Frequency

Sampling rate

48KHz

Mechanical

Size(L-W-H)

50X40X35MM

Weight (Net)

78g

Warranty

Limited Warranty

1 Year Parts and Labor

Environmental

Operating Temperature

0 ℃ to +70℃

Operating Humidity

10% to 85 % RH (no condensation)

Storage Temperature

-10℃ to +80℃

Storage Humidity

5% to 90 % RH (no condensation)

Power Requirement

External Power Supply

5V DC@1A

Power Consumption

0.5 watts (max)

Regulatory Approvals

Converter Unit

FCC,CE,UL

Power Supply

UL,CE,FCC

Accessories Adapter

AC Power Adapter

US standard, UK standard and so on

User Manual

English Version
