1.0 Introduction:

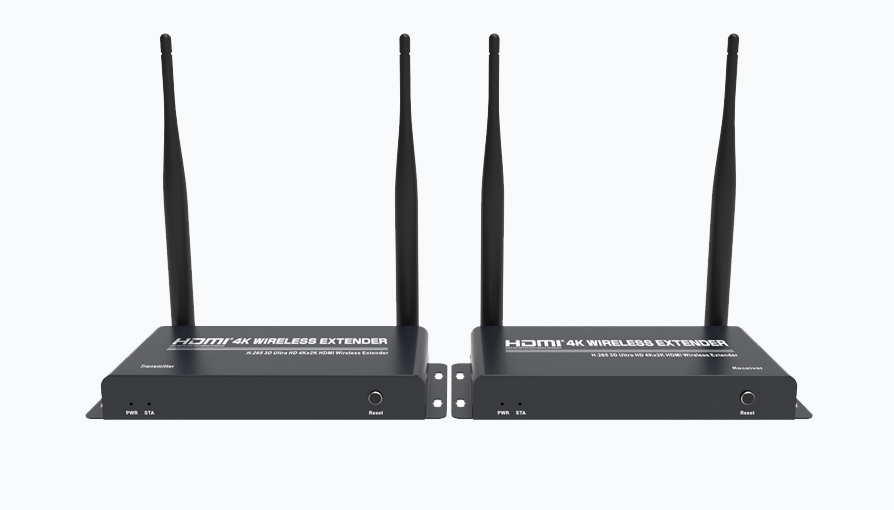

HDMI extender with a standard Ethernet TCP/IP protocol, through wireless WIFI signal transmission HD audio and video signal, at the same time, with infrared extensions to make remote control more convenient.The equipment has excellent image processing and transmission capacity, makes signal transmission more smooth and steady, is a kind of economic and efficient way of HDMI signal extension.

2.0 Features:

1. HDMI video and audio transmission via wireless WIFI, up to 200 meters;

2. HDMI 1.4 compatible;

3. In accordance with standard HDCP1.4 ,high-bandwidth digital content

protection technology;

4. HD video signal resolution up to 4Kx2K@30Hz;

5. Support transmitter with HDMI Loopout;

6. Special format is to compress and decompress video,effectively improve

the transfer efficiency,to ensure that the playback fluency;

7. Support external remote infrared extension, easy to operate the remote

Device;

8. Able to automatically identify and configure a variety of display mode;

9. Built-in automatic balance system, the picture is fluent, clear and stable;

10. The built-in ESD electrostatic protection circuit, comprehensive security

protection system;

11. Simple and convenient installation, plug and play, do not need to set up.

3.0 Packaging accessories:

1. HDMI transmitter------------------------------------------------1 Pcs

2. HDMI receiver ---------------------------------------------------1 Pcs

3. 12V DC Power Adaptor----------------------------------------2 Pcs

4. IR RX Cable ------------------------------------------------------1 Pcs

5. IR TX Cable ------------------------------------------------------1 Pcs

6. User Manual------------------------------------------------------1 Pcs

4.0 Technical parameters:
