1.0  INTRODUCTION

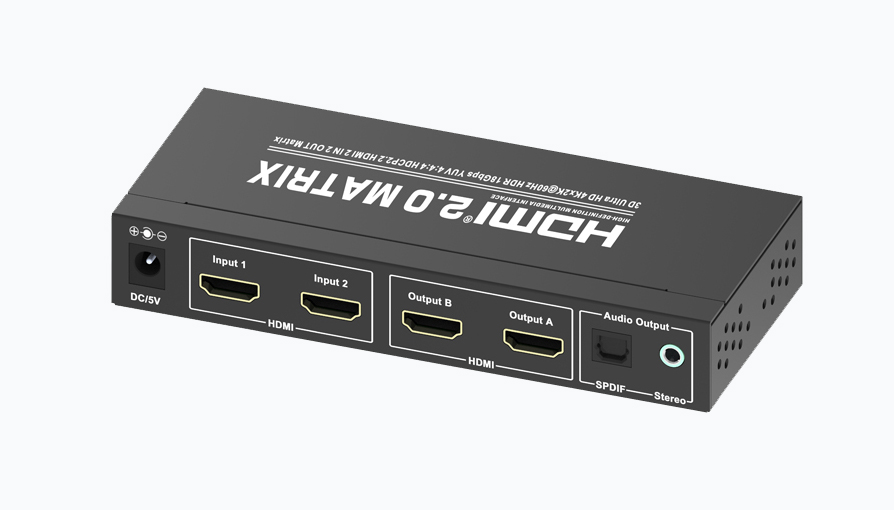

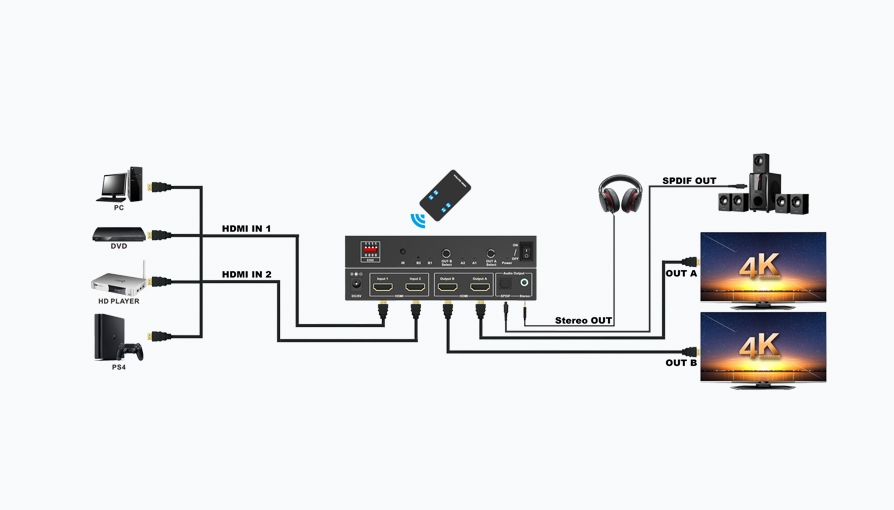

HDMI Matrix is a perfect matrix product with detached external audio output ports, which can connect 2 different HDMI signal sources and 2 displays. It can easily switch any of 2 input signals to 2 displays by using remote control or pushing button. The output signals can be same or different. By using this product can avoid the need to disconnect and reconnect signal sources to displays frequently. It can smartly select input signal sources with priority order and jump over those input signal sources which are not in work. It can optimize your home theatre system to the best effect.

2.0 FEATURES

1. Support display resolutions up to 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz

2. 3D HDMI 1.4a video format support.

3. 3D video support including Frame packing for all 3D formats up to a 297MHz TMDS clock.

4. Supports deep color up to 48-bit per pixel.

5. HDCP 1.4 support (INPUT), HDCP v1.4a protocol compliant (OUTPUT).

6. Supports the reception of any audio data conforming to the HDMI specification 1.4 such ad L-PCM at up to 192kHz,compressed audio(IEC 61937),DSD,DST,DTS and HBR

7. Full colorimetry including sYCC601,Adobe RGB,Adobe YCC601,xvYCC extended gamut color

8. Operates for TMDS clock frequencies up to 340MHz

9. Supports EDID control via EDID Selector.

3.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1.HDMI 2X2 Matrix ---------------------1PCS

2.DC 5V Power adapter----------------1PCS

3.Remote control-------------------------1PCS

4.User Manual----------------------------1PCS

4.0 TECHNICAL PARAMETERS
