1.0 Introduction:

HDMI Switch/Splitter is a product which can distribute HDMI signal without loss to one or more high definition display device such as HDTV. It can optimize your home theatre system to the best effect.

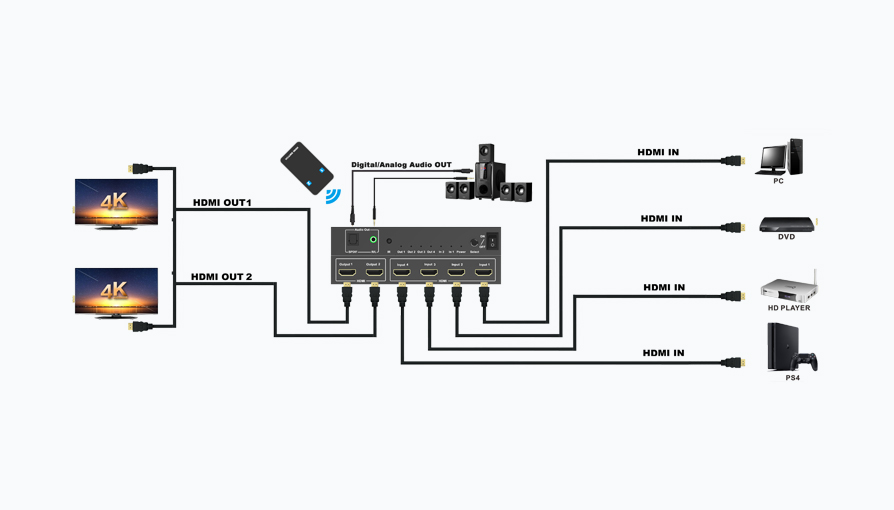

HDMI signal is distributed from source device such as DVD, Satellite Receiver, Set-Top Box, DV Camera, A/V Receiver and other HDMI enabled device to high definition display device such as HDTV and HDMI Flat panel Display.

2.0 Features:

1.Fully HDMI 2.0 specification compliant. It is applicable to source device and high definition display device ,such as DVD and  HDTV which have HDMI Ports or digital ports and are compliant with HDCP1.1/1.2/1.4/2.2 protocol;

2.Support video format up to 4k2k@60Hz with 24bit RGB/YcbCR 4:4:4/YCBCR4:4:4,and up to

4k2k@60Hz with 12bit YCBCR 4:4:4;

3. Support 3D frame sequential video format up to 1080p@60;

4. Supports Output simultaneous display at different resolutions;

5. Support Audio Extrator;

6. Blu-ray DVD 24/50/60fs/HD-DVD/xvYCC;

7. Audio formats DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3 and DSD;

8. Extend the transmission distance and improve transmission signal;

9. Compatible with DVI by using HDMI to DVI adapter;

10. Metal casing design and overall shielding without signal interference.

3.0 Packaging accessories:

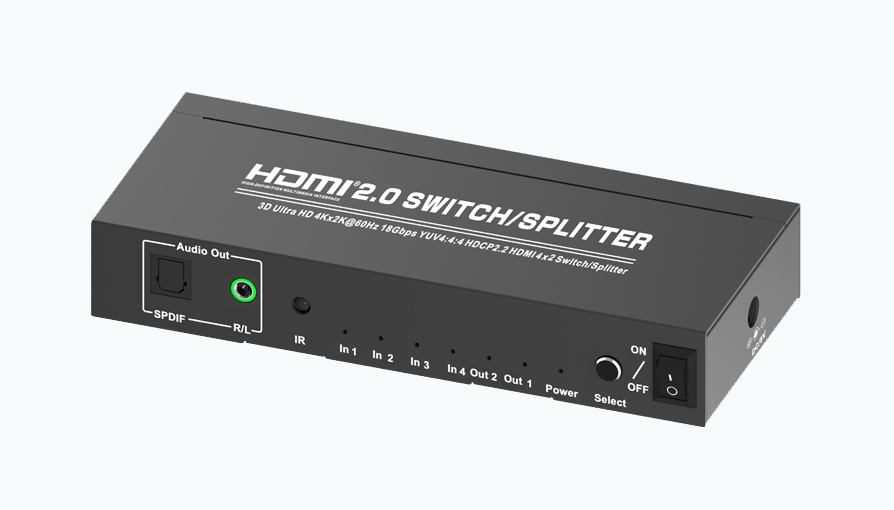

1. HDMI 4x2 Switch/Splitter-------------------------------------1Pcs

2. Remote Control--------------------------------------------------1Pcs

3. 5V DC Power Adaptor------------------------------------------1Pcs

4. User Manual-------------------------------------------------------1Pcs

4.0 Technical parameters

HDMI Source Input Port-------------------------------------------------------------------4

Display Device Output Port---------------------------------------------------------------2

Source Port Connector----------------------------------------------------19 PIN HDMI

Display Device Port Connector------------------------------------------19 PIN HDMI

Output Audio Port---------------------------------------------------------SPDIFx1,R/Lx1

HDCP Compliant------------------------------------------------------------------------YES

Single Link Range--------------------------------------------------------------3840x2160

Input Video Signal------------------------------------------------------0.5-1.0 Volts P-P

Input DDC Signal--------------------------------------------------------5 Volts P-P(TTL)

Deep Color------------------------------------------------------------------------------48 Bit

HDMI Version-----------------------------------------------------------------------HDMI2.0

Bandwidth---------------------------------------------------------------------Up to 600Mhz

Signal Speed-----------------------------------------------------------------Up to 18Gbps

The length of input cable------------------------------PS4≤10M；BLUE DVD≤10M

The length of output cable------------------------------------------------------------≤10M

The cable standard------------------------------------------------------28AWG HDMI2.0

Vertical Frequency Range-------------------------------------------------------------60Hz

Power Consumption(max.)--------------------------------------------------------4.5Watts

Operation Temperature-------------------------------------------------------------0℃-70℃

Working Voltage-------------------------------------------------------------------------DC 5V

Power Adaptor---------------------------------------------------------------------------5V 1A

Net Weight-------------------------------------------------------------------------------0.25kg

Dimension: L*W*H(mm)---------------------------------------------------------149x64x25
