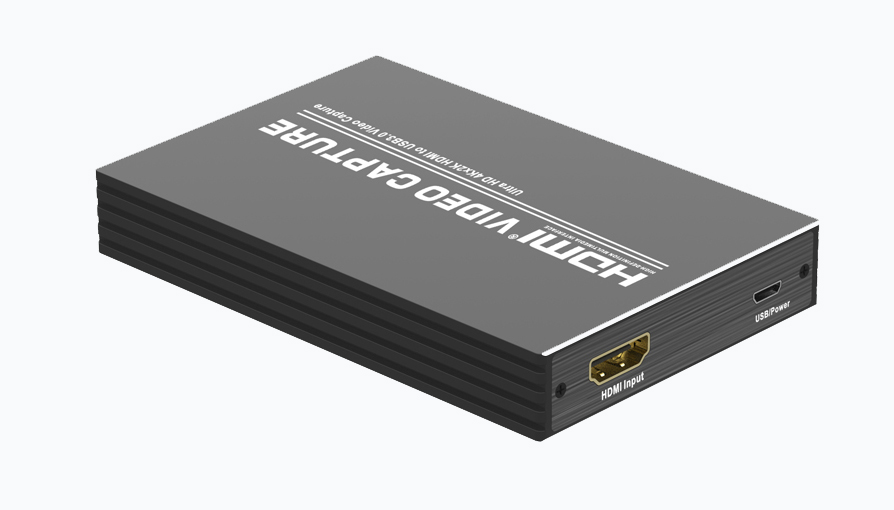

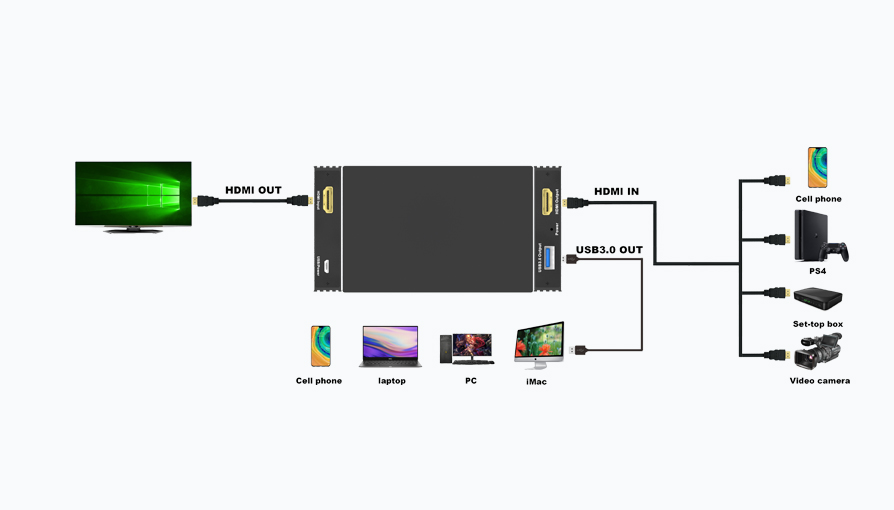

This dongle can be connected with WiiU, Xbox 360, Xbox One, PS4. HDMI Camera, Medical device etc. and used for Game streaming, Video Conferencing, Movie Making, Lecture Capture, Telemedicine, Live.

1.0 Features

1) Support input max resolution 4K@30Hz;

2) Support output max resolution 1080P@60Hz;

3) Support HDMI Loopout;

4) Support 8/10/12bit deep color;

5) Support 26AWG HDMI standard cable(Input up to 15 meters)

6) Support most acquisition software,such as VLC,OBS,Amcap,etc;

7) Support Windows,Android and Mac OS;

8) Conform to USB Video and UVC standard;

9) Conform to USB Audio UAC standard;

10) Without external power supply,compact and portable.

2.0 Hardware requirements(Recommended)

Intel Core solo (Intel Core i5).1G Ram(2G Ram)Available USB3.0 interface.

3.0 System requirements(Recommended)

Windows 7/8/10/Server 2008,Linux Kernel version 2.6.38 and above,OS X 10.8 and above,Android.5.0 or above (only video)

4.0 Compatible software

Adobe Flash Media Live Encoder (Windows, OS X),Real Producer Plus

(Windows),Quick Time Broadcaster (OS X),Quick Time Player (OS X),Windows Media Encoder (Windows),Daum Pot player (Windows, OS

X),X split Broadcaster (Windows, OS X), VLC (Windows, OS X, Linux)Wire cast (Windows, OS X), OBS etc.

5.0 Specifications

HDMI resolution -----------------------------Max input can be 4K@30Hz

Support video format --------------------------------8/10/12bit Deep color

Video output format -----------------------------------------------YUV,JPEG

Video output resolution --------------Max output can be 1080p@60Hz

Support audio format ---------------------------------------------------L-PCM

Input cable distance ----------------15m,AWG26 HDMI standard cable

Max working current ---------------------------------------------------0.4A/5V

Operating Temperature range -------------------------------(-10 to +55℃)

Dimension(L×W×H)-----------------------------------------107x71x16mm

Weight -------------------------------------------------------------------------140g
