Model:SPLH-0108E50 Input:HDMI*1

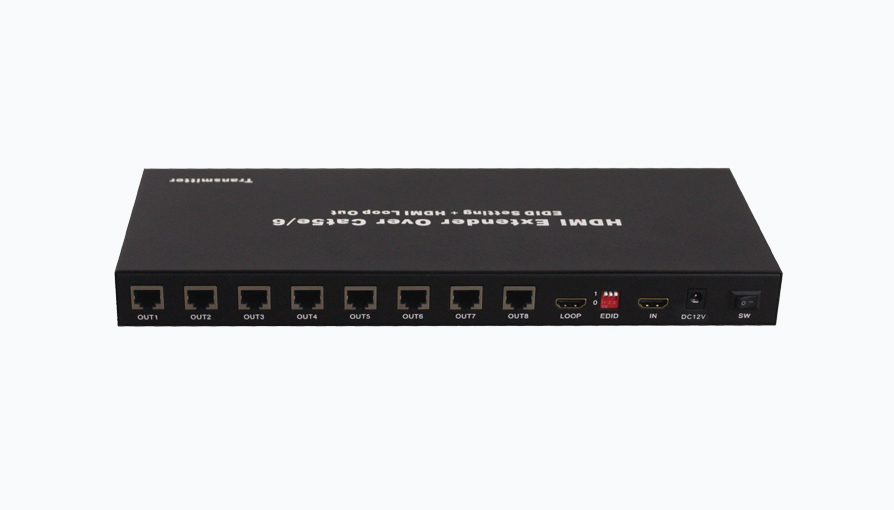

Output:HDMI*1,RJ45*8



Main Features:
HDMI 1.3V and HDCP 1.3 With loop out EDID management Pint This Page

Details

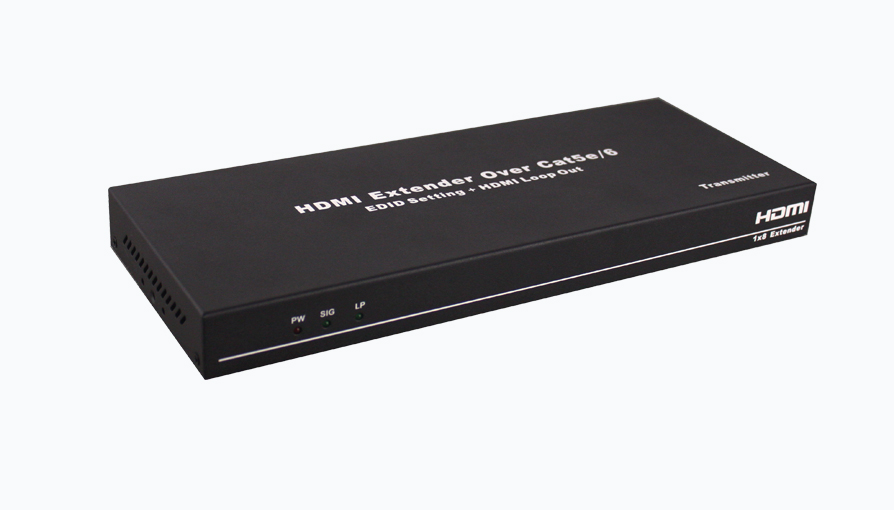

This 1x8 HDMI splitter with 50M extension helps user to display one source far to 50M long distance over cat6 cable, the local loop out  and edid management are designed for multi-purpose usages, such as local monitor and strengthen the compatibility between different devices.


FEATURES


l One HDMI input signal split to five HDMI sink devices(One is the LOOP output, the other

outputs is the RJ45 output)

l Support 3D 1080P

l Support deep color 30bit, 36bit

l Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

l Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

l Support signal retiming

l Support output up to 50metres by CAT6 cable

l No loss of quality

l Installs in minutes


SPECIFICATIONS:

HDMI resolution …………………………...... ...... ..3D /1080p/1080i/720p/576p/576i/480p/480i

Support video color format ……………………………..…………….24bit/deep color 30bit,36bit

Support audio format………………….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth……………………………………………………………………………..2250MHz

Max baud rate……………….…….………………….………………………………….. ….6.25Gbps

Input/Output TMDS signal ………….…………………………..………...… 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ………………………………………………..………… 5Volts p-p (TTL)

Input cable distance..…... …………….……………………….≤10m AWG26 HDMI standard cable

Output cable distance………………………………………….…...………….…...≤50m CAT6 cable

Max working current………………………………………………………………5V/800MA(2PORT)

       5V/1700MA(4PORT)

12V/1500MA(8PORT)

Power adapter format..Input: ……………... …….. ………..……...AC (50HZ, 60HZ) :100V-240V

Operating Temperature range……..…………….…………………………………… (-15 to +55℃)

Operating Humidity range…………………………….….……….5 to 90%RH (No Condensation)
