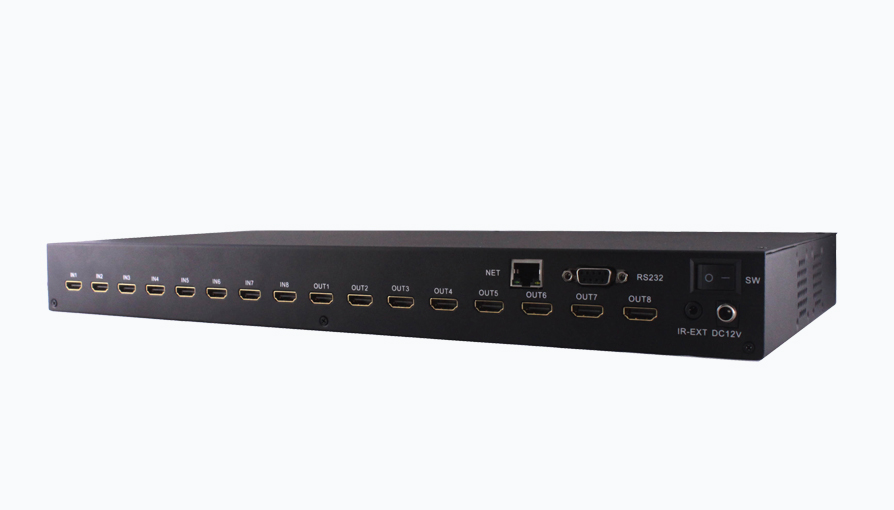

The 8x8 HDMI Matrix with EDID control connects eight HDMI sources to eight displays. This matrix provide eight HDMI outputs and each HDMI output is supporting 1080p Full HD up to 4K plus all 3D formats and supporting independent EDID control. It works with Blu-Ray players, Set-Top boxes, Home Theater PCs, and game consoles that connect to an HDMI display. Any source is accessible at all times by any display by selecting it via the supplied IR Remote Control, RS-232, TCP/IP or by using the selection buttons on the front panel.

■ Features

l Allows up to eight HDMI audio/video devices to be independently switched to eight HDMI monitors, HDTV’s, or projectors.

l The eight output channels could show the same or different source simultaneously no matter the source is HDCP or not.

l Reading and saving EDID function from displays.

l Support high definition resolutions, including:

4Kx2K,1080p, 3D, 1080i, 720p and other standard video formats.

l Each port support both HDMI and DVI inputs.

l With extra infrared extension receiver.

l Four switching modes: panel buttons, local IR, RS232 and Ethernet.

l HDCP compliant

l HDMI 1.4 supported.
