Current Position: Home >Products>Switcher Series> SDI Switch

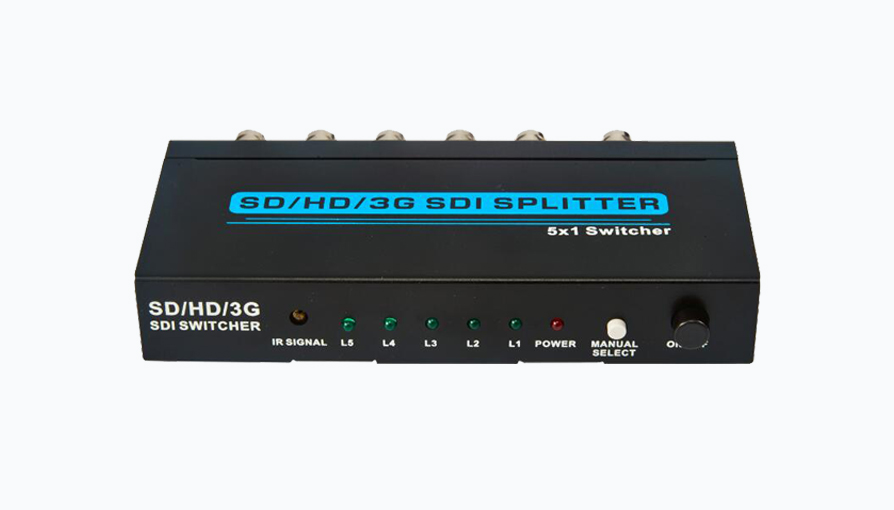

Model:SWTS-05010 Input:SDI*5
Output:SDI*1



Main Features:
Supports 3G SDI/HD-SDI/SDI Video bandwidth upto 3.0 Gbps. Pint This Page

Details
Features

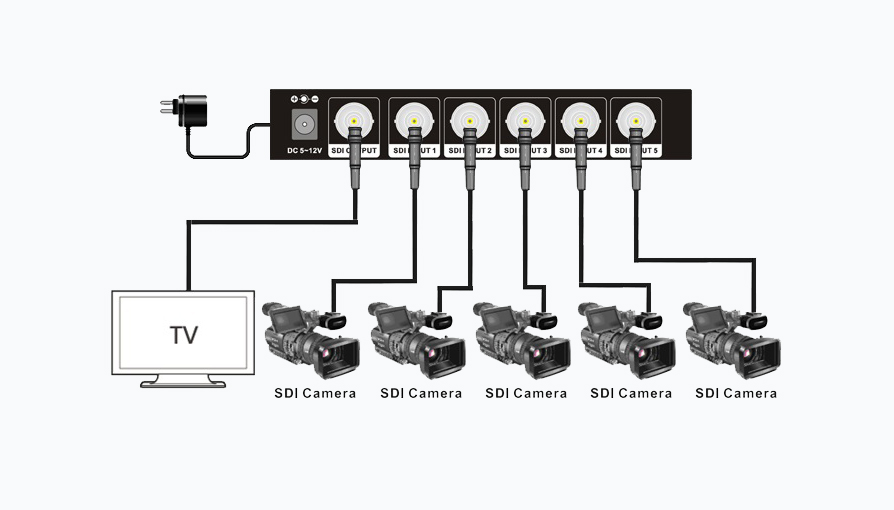

    Switches between five 3G-SDI sources to a single output device without latency or signal degradation
    Resolutions up to 1080p are supported
    Backwards compatible with SDI and HD-SDI
    Supports NTSC, PAL, and all HD formats
    Switching is controlled via front panel push button, IR Remote (included)
    Plug-and-Play Installation
    Locking Power Supply

Specifications
    Video Bandwidth: up to 3.0 Gbps
    SDI (SMPTE 259M, up to 360 Mbps)
    HD-SDI (SMPTE 292M, up to 1.485 Gbps)
    3G-SDI ( SMPTE 424M/425M, up to 3.0 Gbps)
    Video Input Connectors: (5) BNC, female
    Video Output Connector: (1) BNC, female
    Power Supply: 5V DC
    Power Consumption: 10W (max.)
    Operating Temperature: 0 - 40 °C
