Model:ECHS-10011 Input:HDMI, RJ45
Output:RJ45, HDMI



Main Features:
Super IR function Support 1 to 1 and 1 to many Pint This Page

Details

Introduction

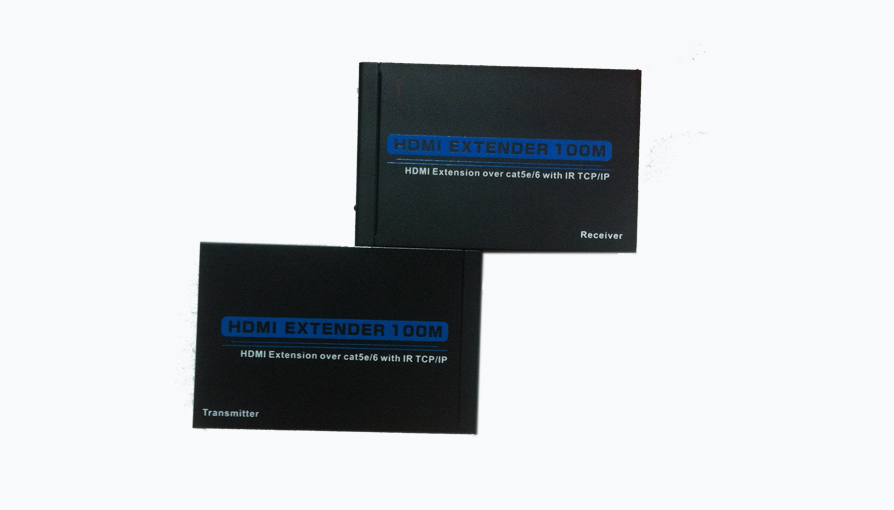

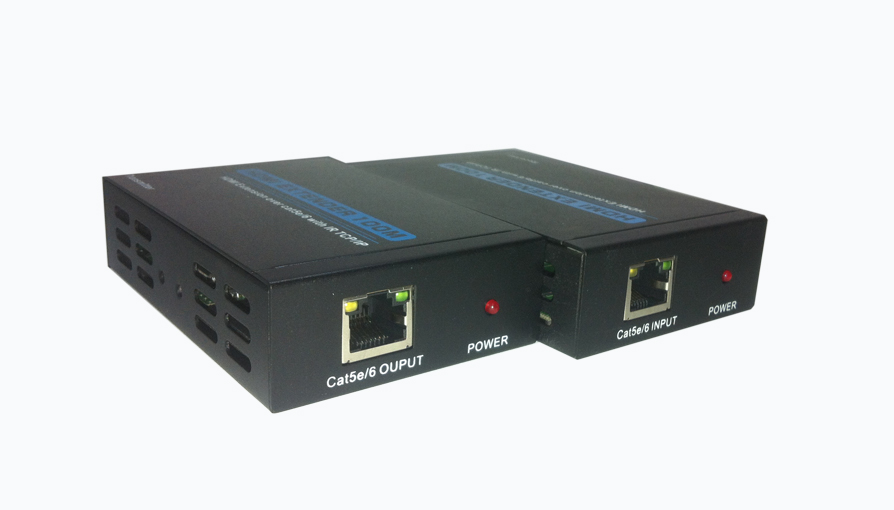

The HDMI Extender over ONE CAT 5E/6 is a tool for extending your HDMI signal over long distances to a compatible display. Instead of using expensive HDMI cables, your existing CAT 5E/6 cables/sockets can be utilized to perform advanced functions like transferring Deep Color (12 bits/color) video and digital audio, with a bandwidth up to 225MHz. The HDMI Transmitter and Receiver, over ONE CAT 5E/6 extender is your substantial HDMI extender tool. The HDMI Extender also support IR re-transmitting, so you can control the Source which is 100 meters outside using the HDMI Extender.

Features
1.DC 5V~12V wide power supply.
2.HDMI 1.3, HDCP 1.1 and DVI1.1 compliant.
3.Support Deep Color up to 12 bits/color.
4.Support IR re-transmitting.
5.Uses one CAT5E/6 cable for data/DDC transmission.
6.Equalizes and recovers incoming TMDS data before re-transmitting it in optimal quality regardless of the incoming signal quality.
7.Cable testing showed that with 1080p resolution the HDMI input source can be 20meters away.
8.When transmitting a signal in 1080p resolution the CAT6 operating distance is 100 meters.
