Model:MTXH-0404H100 Input:HDMI
Output:HDMI, UTP



Main Features:
Upto 100M 1080P delivery 4K upto 70M distance transmission With local and UTP Pint This Page

Details

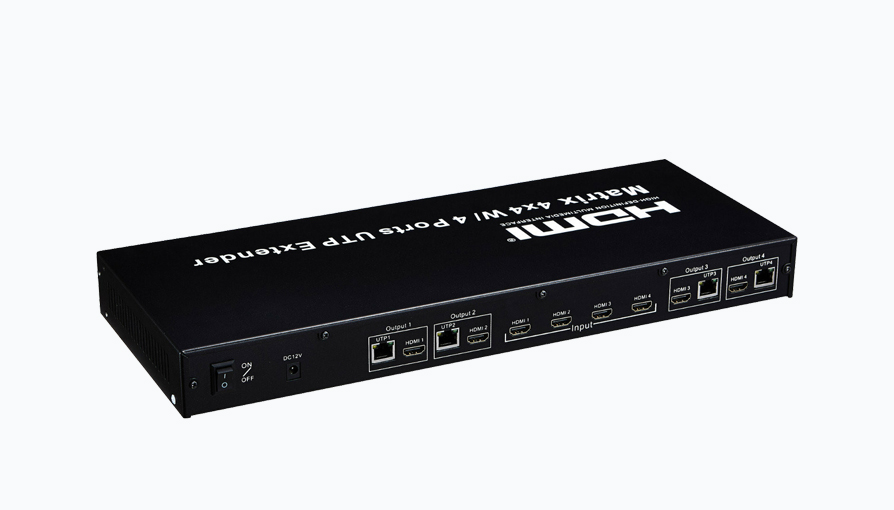

Adopt HDBaseT technology, the 4x4 HDMI matrix can distribute 4 input sources to 4 output local sink along with 4 far distance display upto 100M.


Features 4x HDMI inputs which can be independantly routed to 4x HDBaseT™/HDMI outputs
Simultaneous HDBaseT™ and HDMI outputs to allow connection to dual displays per zone
Extends up to a distance of 100m over single CAT cable
Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports 3D signal display
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
Supports bi-directional IR from all input and output locations
Supplied with Blustream IR receivers and emitters
Control via front panel, IR, RS-232
Supports PoH (Power over HDBaseT™) to power compatible HDBaseT™ receivers
3rd Party drivers available for all major home control brands
Advanced EDID management
HDCP compliant

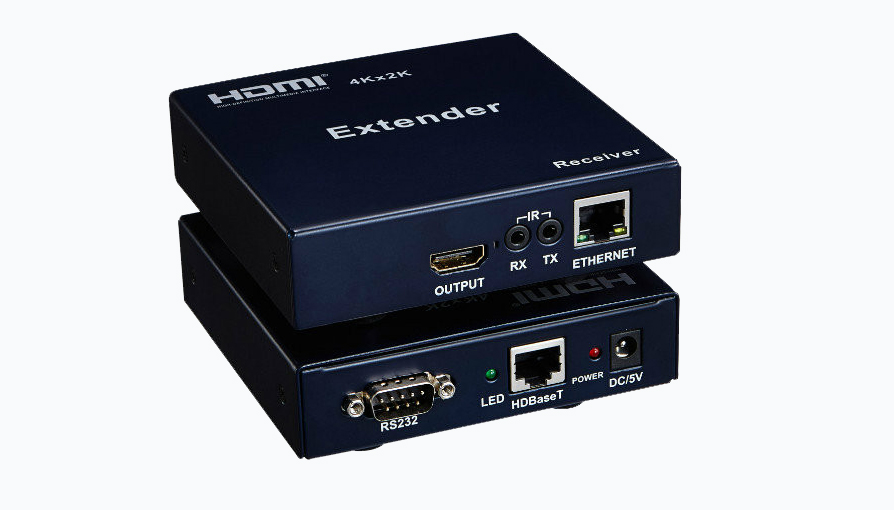

Matrix kit is supplied with 4x HEX70ED-RX HDBaseT™ receivers
