Model:MTXH-0404E50 Input:HDMI, IR
Output:HDMI, IR


Main Features:
Local output+50M long distance Bi-direction IR RS232 Pint This Page

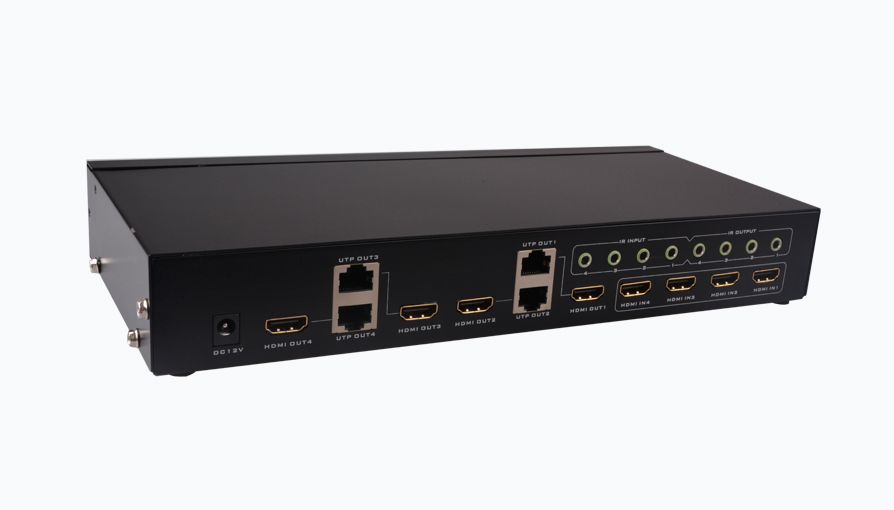

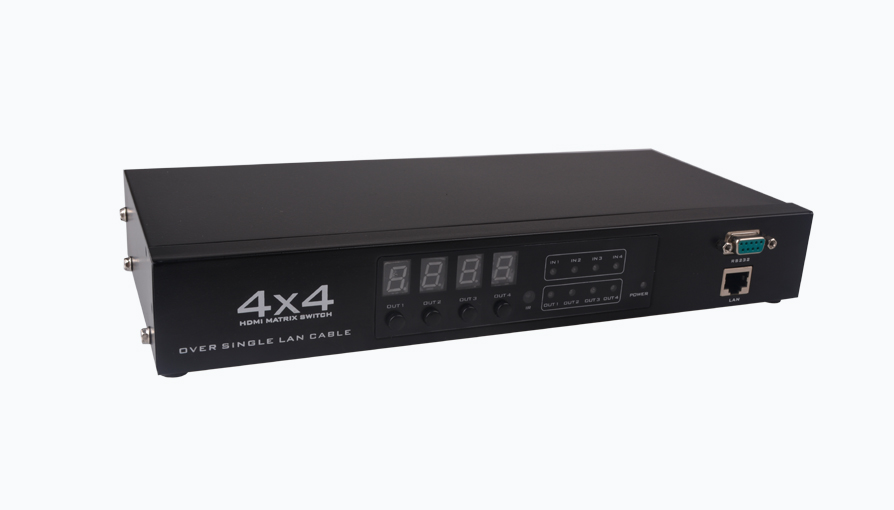

The 4x4 HDMI Matrix with simultaneous CAT and HDMI outputs connects four HDMI sources to eight displays. This matrix features four HDMI outputs and each HDMI output is mirrored to provide a CAT-Cable output which runs simultaneously. Connect a SINGEL UTP Receiver to each of the CAT-Cable outputs to extend the HDMI signal up to 164ft/50m for multi-room connectivity. It works with Blu-Ray players, Set-Top boxes, Home Theater PCs, and game consoles that connect to an HDMI display. Any source is accessible at all times by any display by selecting it via the supplied IR Remote Control, RS-232, TCP/IP or by using the selection buttons on the front panel. This device supports High Definition Audio, and 3D signal compatibility.

1.HDMI1.3, HDCP 1.1 and DVI1.0 compliant
2.Supports HDMI 3D pass-through
3.Supports resolutions from VGA~WUXGA and HD resolutions from 480i~1080p dependent upon the EDID settings
4.Supports transmission distances up to 164ft/50m through CAT5e/6/7 cable
5.Supports simultaneous HDMI and CAT outputs
6.Supports wideband IR(20-60Khz) matrix system, IR transport channel can be forward or backward
7.Supports RS-232, remote control, on-panel control and TCP/IP Control
8.Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
