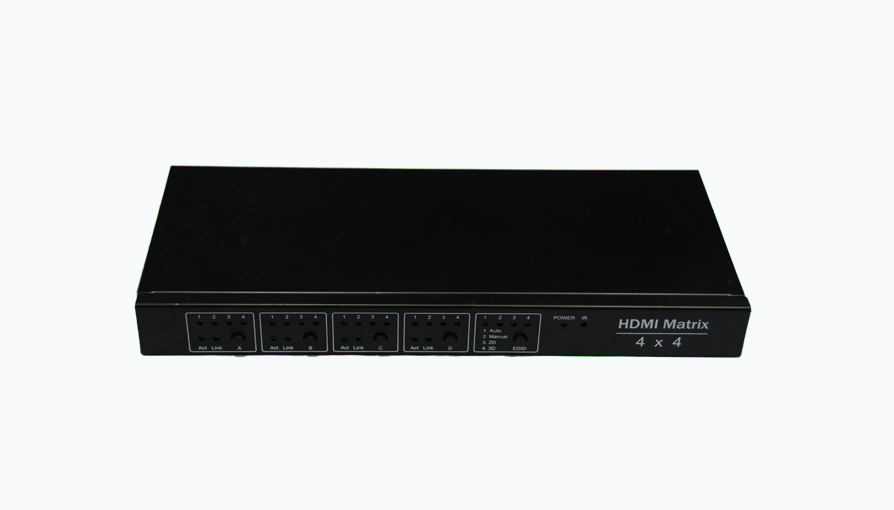

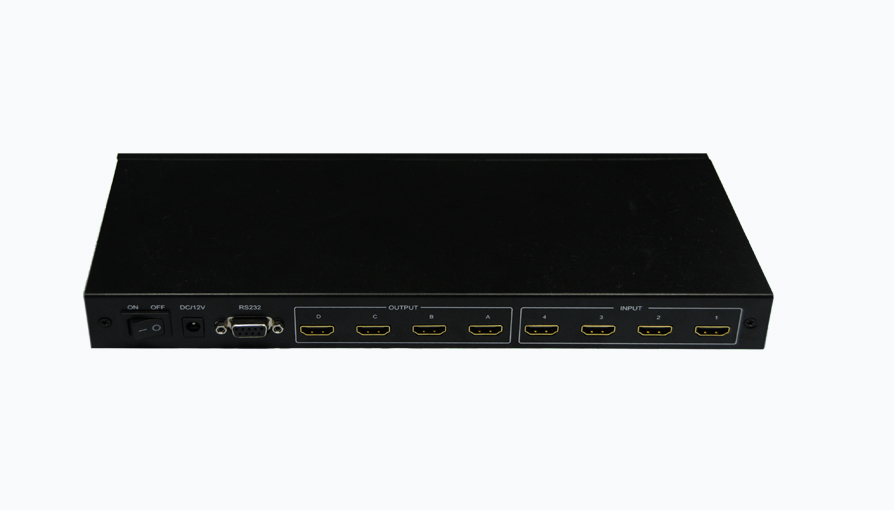

The 4x4 DVI/HDMI matrix support output resolution up to 4Kx2K. It allows any source (Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) to be shown on any of four displays simultaneously, no matter the source is HDCP encryption or not. Extra infrared receiver port is supplied for remote control. it offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and projector factory, data center control, information distribution, conference room presentation, school and corporate training environments, etc.

Features
1. Supports display resolutions up to 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz
2. 3D HDMI 1.4a video format support
3. 3D video support including Frame Packing for all 3D formats up to a 297MHz TMDS clock
4. Supports deep color up to 48-bit per pixel
5. HDCP 1.4 support (INPUT), HDCP v1.4a protocol compliant (OUTPUT)
6. Supports reception of any audio data conforming to the HDMI specification 1.4 such ad L-PCM at up to 192kHz,compressed audio(IEC 61937),DSD,DST,DTS and HBR
7. Full colorimetry including sYCC601, Adobe RGB, Adobe YCC601, xvYCC extended gamut color
8. Operates for TMDS clock frequencies up to 300MHz
