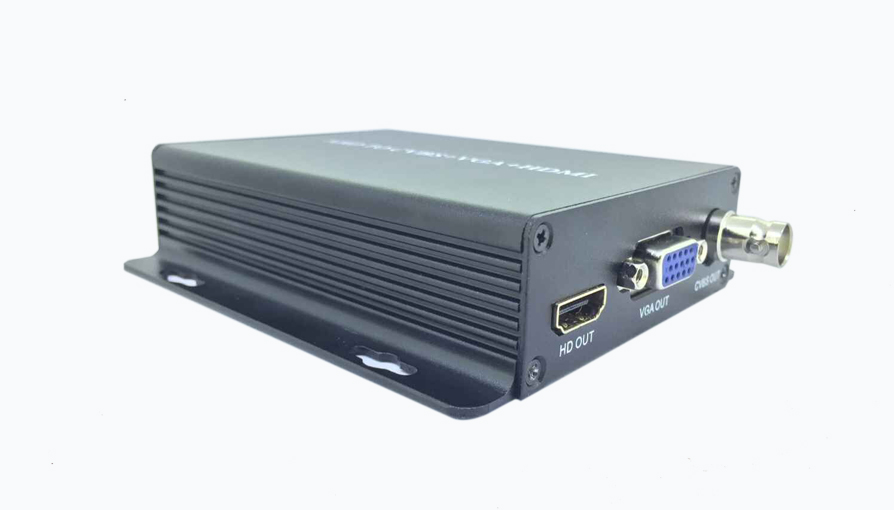

Model:CNTR-09031PRO
Input:AHD*1
Output:HDMI*1, VGA*1, CVBS*1
Main Features:
Support all type AHD resolution:720P@25/30/50/60Hz
HDMI output resolution : 720p & 1080p
ADH loopout
Pint This Page
AHD video converter is an equipment that using the latest scaler and frequency conversion technology, can easily convert AHD signal to CVBS , or HDMI HD signal, or VGA analog signal
AHD to CVBS (AV) — can lock CVBS output resolution, automatic frequency conversion and scaler. CVBS PAL/NTSC output can be selected.
AHD to VGA - Maximum VGA output @1920 * 1080 , automatic frequency conversion and scaler
AHD to HDMI - Maximum HDMI output 1080p @ 60 hz, automatic frequency conversion and scaler
■AHD to CVBS transformation,supports AHD2.0 input,that is 1080p@25/ 30 hz, and also supports AHD - 960, CVBS input.
■AHD to HDMI/VGA transformation, AHD input only supports to 720p @ 25/30 hz.
■AHD input can automatically detect AHD PAL/NSTC
■AHD loop output
■Built-in ESD industrial-grade protection circuit, which can effectively prevent static electricity.
■Built-in industrial-grade against lightning protection

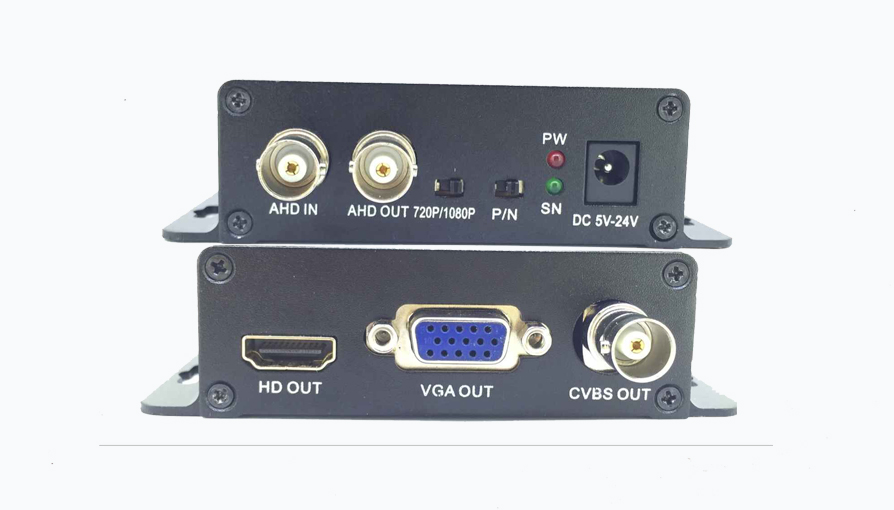

Port name |
Functional specifications |
AHD_IN |
AHD Signal input |
AHD_OUT |
AHD Signal loop output |
CVBS_OUT |
CVBS Signal output(AHD to CVBS) |
HDMI_OUT |
HDMISignal output(AHD to HDMI) |
VGA_OUT |
VGA signal output(AHD to VGA) |
P/N |
CVBS output PAL/NTSC selecte |
720P/1080P |
HDMI output resolution selecte |
DC 5-24V |
5V-24VDC power input |
Indicator light |
status |
|
PW |
Light up |
system powered on |
Put out |
system un-powered on |
|
SN |
Light up |
AHD signal locked |
Put out |
AHD signal un-locked |
4.Performance specifications:
Working temperature range |
-25 to+75 °C |
Working humidity range |
Relative humidity 30%~ 85% |
Input video signal |
0.5 -1.0 vols p-p |
Output video |
CVBS+VGA+HDMI |
Input power |
DC 5~24V, the outside is negative |
Power consumption |
CVBS output:250mA |
|
HDMI output:250mA |
|
VGA output: 250mA |
|
CVBS+VGA+HDMI outpput:750mA |
Material |
Aluminum alloy |
