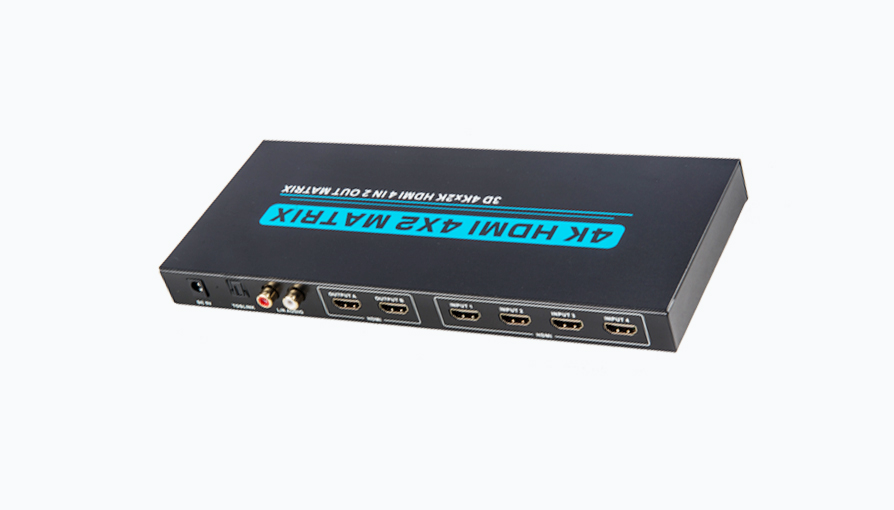

Model:MTXH-04022 Input:HDMI*4
Output:HDMI*2, Optical*1, L/R*1



Main Features:
4K*2K Supported Audio extractor:digital and analog Pint This Page

Details
1.Support display resolutions up to 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz
2.Audio extractor: digital optical out and L/R analog audio out.
3.3D video support including Frame packing for all 3D formats up to a 297MHz TMDS clock
4.Supports deep color up to 48-bit per pixel
5.HDCP 1.4 support (INPUT), HDCP v1.4a protocol compliant (OUTPUT)
6.Supports the reception of any audio data conforming to the HDMI specification 1.4 such ad L-PCM at up to 192kHz,compressed audio(IEC 61937),DSD,DST,DTS and HBR
7.Full colorimetry including sYCC601,Adobe RGB,Adobe YCC601,xvYCC extended gamut color
8.Operates for TMDS clock frequencies up to 300MHz
