FEATURES

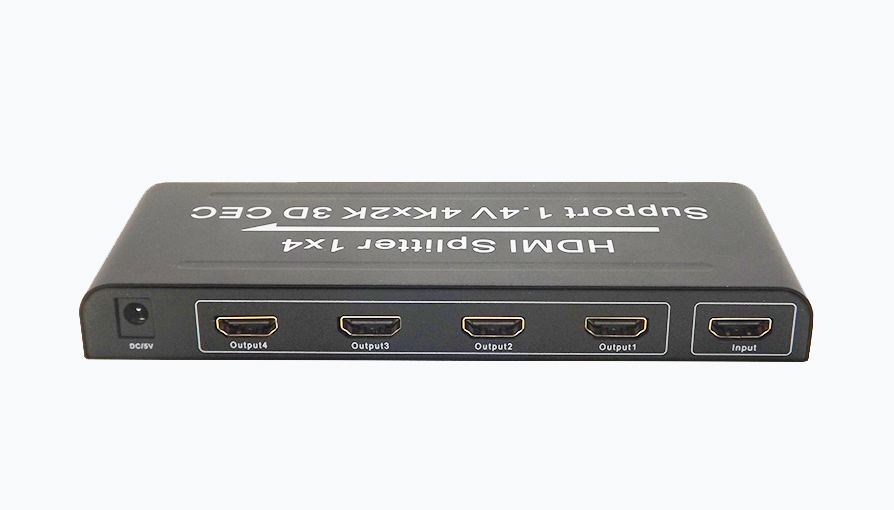

l One HDMI input signal split to four HDMI sink devices

l Support  Full HD, Full 3D

l Support 4Kx2K resolution

l Support CEC

l Support deep color 30bit, 36bit, 48bit

l Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

l Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3

/DSD/HD（HBR）

l Support signal retiming

l Support input up to 15metres AWG26 HDMI standard cable length, output up to 25metres AWG26 cable length

l No loss of quality

l Installs in minutes

l Need DC5V/2A power supply

SPECIFICATIONS:

HDMI resolution ……………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support video color format ……………………...……..….……..24bit/deep color 30bit,36bit, 48bit

Support audio format……..….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)

Max bandwidth……………………………………………………….………………………….340MHz

Max baud rate…………………….………………….………………………………………..10.2Gbps

Input/Output TMDS signal ………….…………………………..………... …..0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ……………………………………………..……...……… 5Volts p-p (TTL)

Input cable distance..…... ……………………….…………………...………….≤10m HDMI AWG26

Output cable distance…………………………….……….…...≤10m AWG26 HDMI standard cable

Max working current………………………………..……………………………………….....190mA

Power adapter format..Input: ……………….....AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A

Operating Temperature range……..…………….……………………………….…… (-15 to +55℃)

Operating Humidity range………………………….….…………..5 to 90%RH (No Condensation)

Dimension (L x W x H) ……………………………….…………………………..180X68X20(mm)

Weight…..………………………………………………………..…….…………………..………320g
