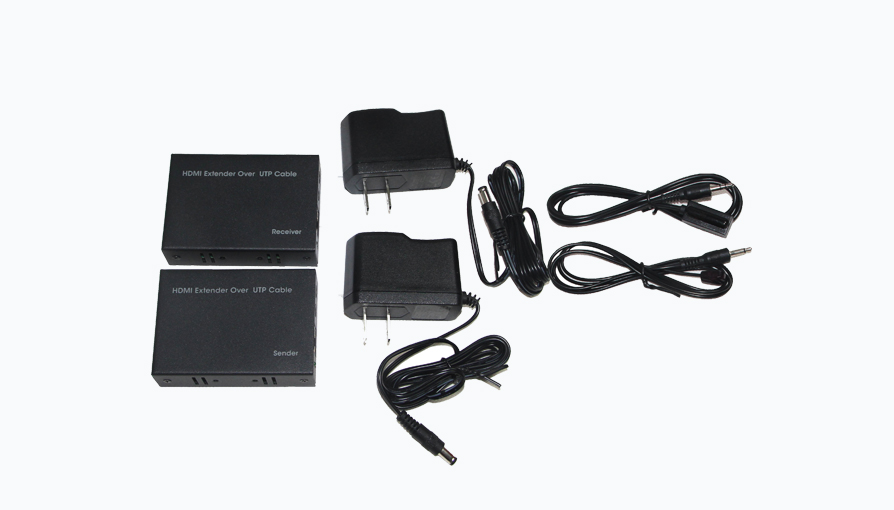

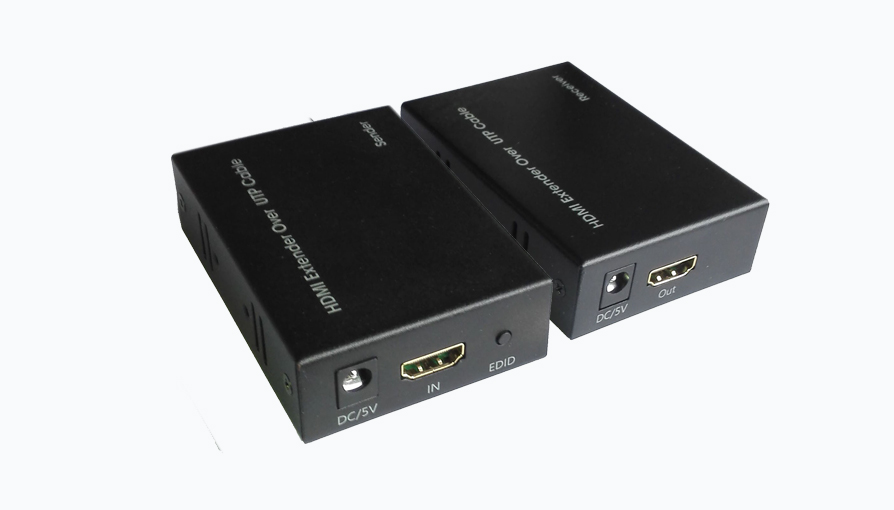

Model:ECHS-05012 Input:HDMI*1, CAT*1
Output:CAT*1, HDMI*1



Main Features:
Bi-direction IR control 1080P support upto 50M Support EDID control Pint This Page

Details

The ECHS-05012 adopts the most reliable MAXIM solution, enable to transit HDMI signal over 50M with a high resolution upto 1080p. The bi-direction function support to control source and display, furthermore it enable an EDID management for best audio/video effection.


Features:

1.Video Bandwidth: Single-link 165Mhz [ 4.95Gbps]
2.Video Support: 480i/480p/720p/1080i/1080p @60
3.Audio Support: Surround Sound (up to 7.1 ch) or stereo digital audio

4.Transmission Range: HD [1080p 24-bit color] – up to 50m

5. Allows HDMI Audio/Video and IR signals to be transmitted over a single Cat5e/6 cable
6. Bi-directional IR system allowing for control of source or display (IR accessories included)
7. 2D/3D  EDID management
8. Transmission Range: Extends 1080p resolution up to 164ft/50m over a single Cat5e or Cat6 cable
9. Works with HDMI and HDCP compliant devices
10. Supports up to 1080p High Definition resolution
11. Compact design for an easy and flexible installation
