Model:EODS-00101
Input:DVI, Audio, RS232, K/M, Fibre
Output:DVI, Audio, RS232, K/M, Fibre
Main Features:
KVM DVI Extender
Support RS232 control
DVI 1.0 and HDCP 1.2 compliant
Data Download

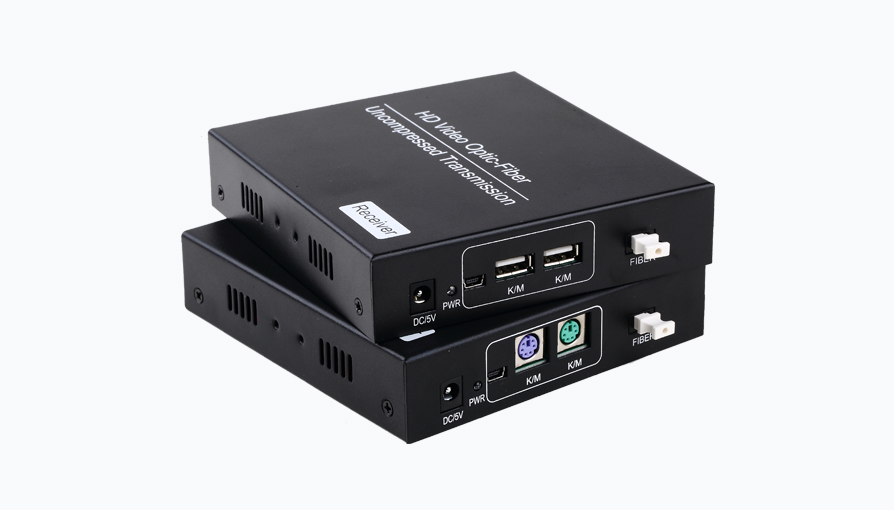

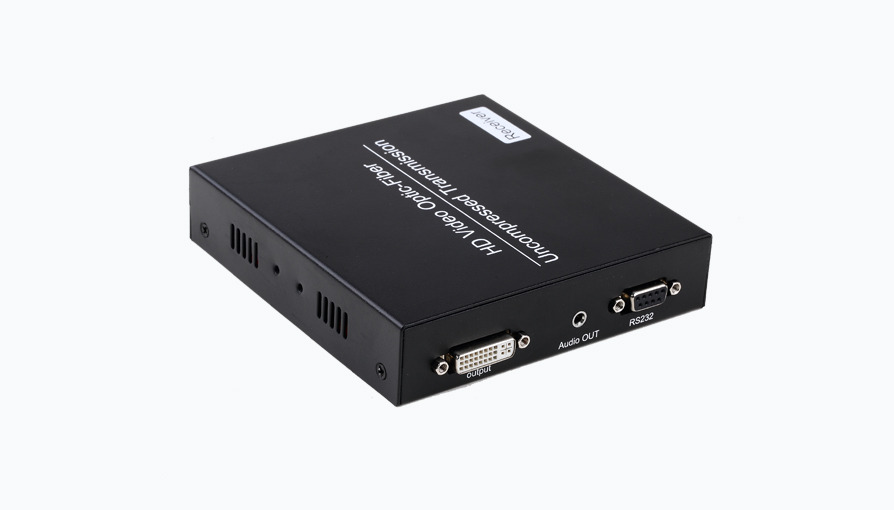

Pint This PageThe EODS-00101 Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, EDID copy, KVM signal, RS232 signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features:
Transmits DVI video signals up to 10km over one fiber optic cable;
Support video resolution up to 1920*1080P@60Hz;
Support EDID pass-through function, can match many kind display device;
Support keyboard and mouse signal transmission;
Support external stereo audio unidirectional transmission;
Support RS232 signal unidirectional transmission, baud rate self-adaptive;
Compliance with DVI 1.0 and HDCP 1.2 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play;
1. Specifications:
|
Parameter |
Description |
|
|
Video |
Standards |
DVI 1.0; HDCP 1.2 |
|
Maximum pixel clock |
165MHz |
|
|
Maximum data rate |
6.75Gbps |
|
|
Resolution range |
Up to 1920X1080P@60Hz |
|
|
Connector |
DVI-D |
|
|
Impedance |
100Ω |
|
|
Audio |
Interface |
3.5mm earphone seat |
|
Signal type |
Stereo |
|
|
RS232 |
Interface |
DB9 socket |
|
Signal direction |
Unidirectional |
|
|
Baud rate |
Self-adaptive, Max：115200bps |
|
|
Data bits |
8 |
|
|
KVM |
Interface |
To PC: standard MINI-USB or PS2 To K/M: standard USB, PS2 optional |
|
Optical fiber |
Interface |
LC connector |
|
Fiber type |
Single-mode single fiber |
|
|
Wavelength |
Single-mode 1310nm |
|
|
Interface bandwidth |
6.25Gbps |
|
|
Transmission distance |
standard 1km |
|
|
Other |
Power supply |
The power adapter: DC 5V/2A |
|
Power dissipation |
MAX 6W |
|
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
136*130*30mm |
|
|
The warranty |
1 year free warranty |
|
