Model:EOHS-02001 Input:HDMI, Audio, Optical
Output:HDMI, Audio, Optical



Main Features:
HDMI 1.3/HDCP1.1 & 1.2 Both Optic-fiber transmission and Ethernet Transmission Pint This Page

Details

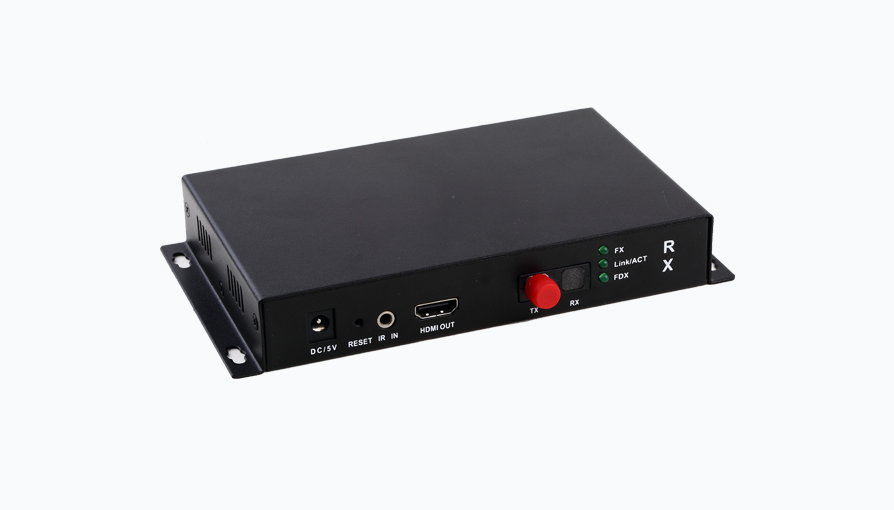

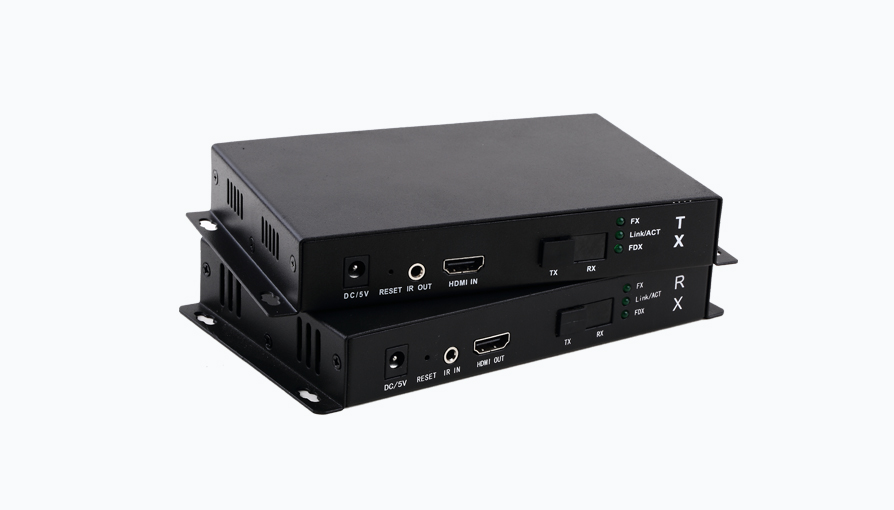

EOHS-02001 is a perfect solution for transmitting HDMI audio and video through the fiber, the set of device includes a sender of EOHS-02001 and a receiver of EOHS-02001. Our products transmit the HD video over optical fiber, which making the images clearer as well as the transmission more stable. At the same time, the product has the built-in IR remote control function.


Features:

1.   HDMI 1.3/HDCP1.1 & 1.2
2.   Both Optic-fiber transmission and Ethernet Transmission
3.   Support point-to-point mode, one point-to-many mode and cascaded transmission mode.
4.    built-in IR remote control function, you can control the set-top box at the receiving site using the IR remote control.
5.    Pure hardware design, just plug and play, no need to install extra software.


Specification:


Video Parameter



Video Resolution

640X480 @ 60fps   800X600 @ 60fps

1024X600 @ 60fps   1024X768 @ 60fps

1152X864 @ 60fps   1280X600 @ 60fps

1280X720@ 60fps   1280X768@ 60fps

1280X800@ 60fps   1280X960@ 60fps

1280X1024@ 60fps   1440X1050@ 60fps

1440x900 @ 60fps   1600x900 @ 60fps

1660x1200 @ 60fps 1680x1050 @ 60fps

1920x1080 @ 60fps 1920 x1200 @ 60fps

Audio

32kHz, 44.1kHz and 48kHz

Infrared Support

38KHz; NEC code

HDMI Version

HDMI 1.3

HDCP Version

HDCP 1.2

Other Parameters



Power input

AC input: 100V - 240V (50 - 60Hz)

Max Power Consumption

THF104T: 5W

THF104R: 5W

Size (L-W-H)

210×140×30 mm

Net Weight

785g*2pcs

Operating Temperature/Humidity

0°C - 70°C / 10% - 80%RH(no condensation)

Storage Temperature/Humidity

-10°C - 80°C/ 5% -90% RH(no condensation)
