Model:EOHD-00101 Input:HDMI, Audio, RS232, K/M, Optical
Output:HDMI, Audio, RS232, K/M, Optical



Main Features:
Compliance with HMDI 1.3 and HDCP 1.2 standard Support video resolution up to 1920*1080P@60Hz Support keyboard and mouse signal transmission



Data Download Pint This Page

Details

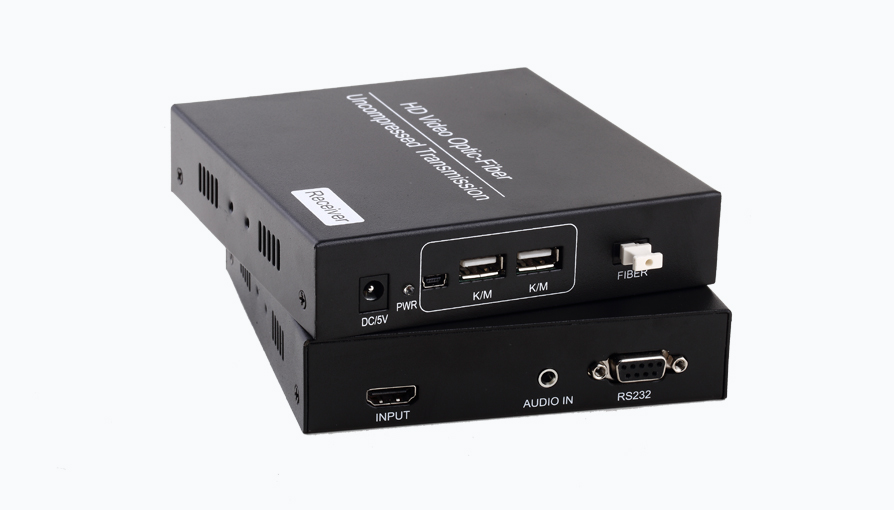

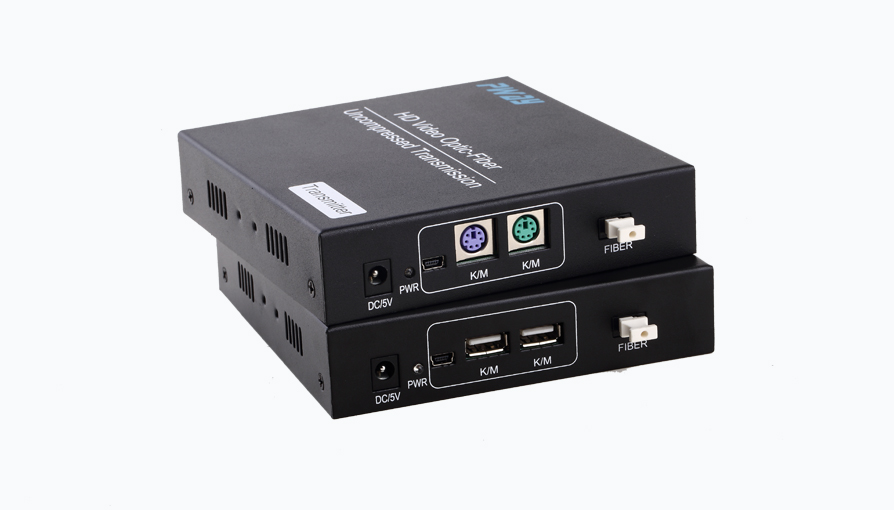

The EOHD-00101 Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, EDID pass-through, KVM signal, RS232 signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.



Features:

 Transmits HDMI video signals up to 1km over one fiber optic cable;
 Support video resolution up to 1920*1080P@60Hz;
 Support EDID pass-through function, can match many kind display device;
 Support keyboard and mouse signal transmission;
 Support external stereo audio unidirectional transmission;
 Support RS232 signal bidirectional transmission, baud rate self-adaptive;
 Compliance with HMDI 1.3 and HDCP 1.2 standard;
 High compatibility, can auto-match source and display device;
 Built-in automatic adjustment system, make the image smooth, clear and stable;
 Built-in ESD protection system;
 Simple to install, plug and play;



Specifications:

Parameter

Description

Video

Standards

HDMI 1.3; HDCP 1.2

Maximum pixel clock

165MHz

Maximum data rate

6.75Gbps

Resolution range

Up to 1920X1080P@60Hz

Connector

Female HDMI type A

Impedance

100Ω

Audio

Interface

3.5mm earphone seat

Signal type

Stereo

RS232

Interface

DB9 socket

Signal direction

Bidirectional

Baud rate

Self-adaptive, Max115200bps

Data bits

8

KVM

Interface

To PC: standard MINI-USB, PS2 optional

To K/M: standard USB, PS2 optional

Optical fiber

Interface

LC connector

Fiber type

Single-mode single fiber

Wavelength

Single-mode 1310nm

Interface bandwidth

6.25Gbps

Transmission distance

OM3 multi-mode fiber: maximum 300m

Single-mode fiber: standard 1km

Other

Power supply

The power adapter: DC 5V/2A

Power dissipation

MAX 6W

Temperature

Operating: -5 ~ +70

Humidity

Operating: 5% ~ 90%

Dimension

136*130*30mm

The warranty

1 year free warranty
