Model:EOHM-00031 Input:HDMI, Optical
Output:Optical, HDMI



Main Features:
HDMI1.4, HDCP1.2 compliant Support Full HD, 1080P@60Hz, 3D and 4K*2K OM3 multimode fiber



Data Download Pint This Page

Details

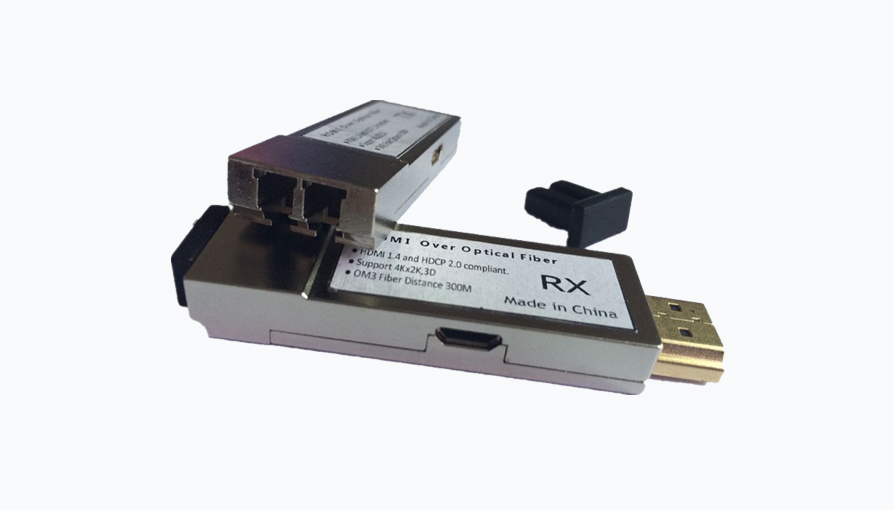

EOHM-00031 is a high-performance product which integratedHDMI with fiber optic, this product transmit uncompressed HDMI high-definitionvideo signals,  it support 1.4A; Use850nm of OM3 multimode fiber, the transmission distance can up to 300 meters, the resolutions can up to 4K * 2K, support3D.


Features:
 HDMI 1.4a Support
 HDCP Support
 DDC CEC HPD Signal Support
 Supports up to 300m Transmission Distance at up to 10.3Gbps with OM3
 Multimode Fiber
 Supports All Modes up to 4Kx2Kx30 Resolution
 Standard HDMI Connector
 Integrated USB Connector for Power
 Double Power Supply (HDMI 5V&USB)
 Hot-Pluggable
 EMI/RFI Resistant
 850nm VCSEL and PIN Photodetector
 2-Wire Interface
 Typical Power Dissipation 1420 mW
 (Source), 1220 mW (Sink)
 Operating Case Temperature: 0~70°C

Package Contents:
 HDMI fiber Transmitter 1pcs
 HDMI fiber Receiver   1pcs
 Power Cable     2pcs
 User Manual     1pcs
